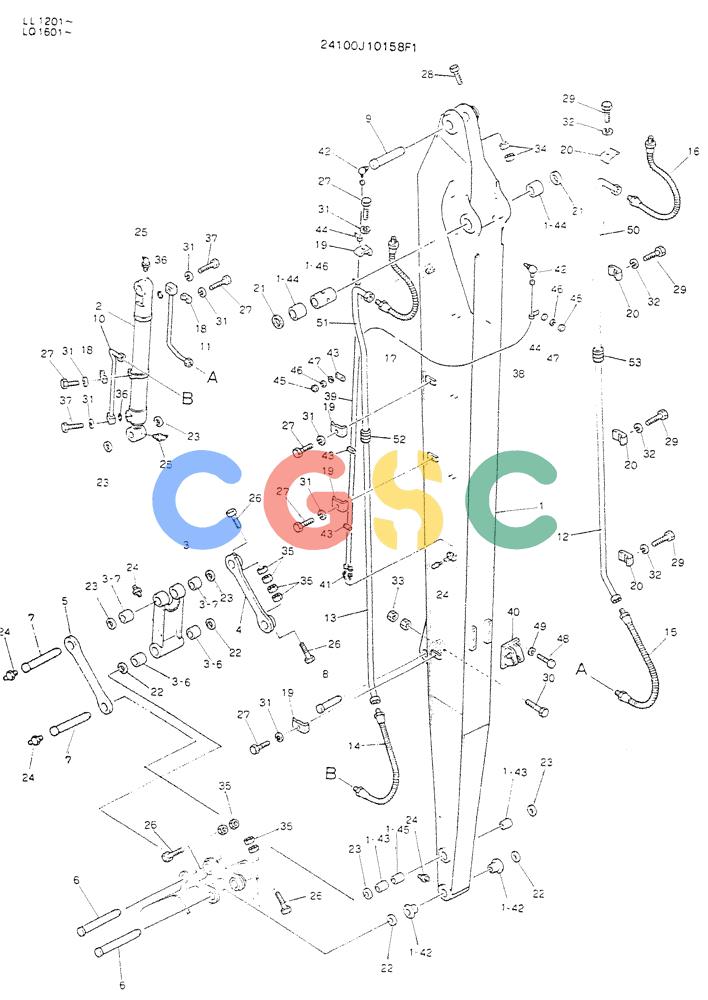

| . . | 24100J10158F1 | [1] | ARM ASSY, 8.4M | |
| 1. | 2411J3388F1 | [1] | ARM | |
| 1-42. | 2405P476 | [2] | BUSHING | KOBFlanged -- ID 60 x OD 75 x 76mm Long Superseded by part number: 2405P758 |
| 1-43. | 2405T824 | [2] | BUSHING | KOBID 60 x OD 75 x 69mm Long |
| 1-44. | 2405T585C2 | [2] | BUSHING | KOB |
| 1-45. | 2418T10840 | [1] | SPACER | KOB |
| 1-46. | 2418T17900 | [1] | SPACER | KOB |
| 2. | 2438U908F1 | [1] | CYLINDER | KOB |
| 3. | 2412N483F1 | [1] | LINK | KOB |
| 3-6. | 2405T605C2 | [2] | BUSHING,60mm ID x 75mm OD x 66mm L | KOB |
| 3-7. | 2405T847 | [2] | BUSHING,60mm ID x 75mm OD x 52mm L | KOBID 60 x OD 75 x 52mm Long |
| 4. | 2406P2541D1 | [1] | LINK CONROD | KOB |
| 5. | 2406P2541D2 | [1] | LINK CONROD | KOB |
| 6. | 2419P1657D2 | [2] | PIN | KOBOD 60 x 410mm Long Superseded by part number: 2419P4118D2 |
| 7. | 2419P1683D2 | [2] | PIN | KOB |
| 8. | 2419P1556D2 | [1] | PIN | KOB Superseded by part number: 2419P1725D1 |
| 9. | 2419T4691 | [1] | PIN | KOB |
| 10. | 2418P12163 | [1] | TUBE | KOB |
| 11. | 2418T17419 | [1] | TUBE | KOB |
| 12. | 2418P18907 | [1] | TUBE | TUBE |
| 13. | 2418P18908 | [1] | TUBE | KOB |
| 14. | ZX58N10080 | [1] | FLEXIBLE HOSE | KOB800mm Long (31-1/2 in) |
| 15. | 2444R870D5 | [1] | HOSE | KOB |
| 16. | ZX58N12150 | [1] | FLEXIBLE HOSE | KOB |
| 17. | 2444R870D16 | [1] | HOSE | KOB |
| 18. | 2432T1333 | [2] | CLAMP | KOBSingle Block -- 50x30x25mm Superseded by part number: YW43H01049P1 |
| 19. | ZC26X22011 | [4] | CLAMP | KOBSingle Line -- 38x29x65mm Long |
| 20. | ZC26X28014 | [4] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 21. | 2445R372D4 | [2] | DUST CAP | KOB |
| 22. | 2445R220D1 | [4] | SEAL,60mm ID x 75mm OD x 5mm Thk | KOBDust -- ID 60 x OD 75 x Th 5mm |
| 23. | 2445R138D3 | [6] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDust -- ID 60 x OD 75 x Th 4mm |
| 24. | ZG91S02000 | [6] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 25. | ZG91U02000 | [2] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 26. | ZS13C14120 | [4] | SCREW | KOBM14x2.0x120mm Superseded by part number: ZS18C14120 |
| 27. | ZS13C10045 | [6] | SCREW | KOBM10x1.50x45mm Superseded by part number: ZS18C10045 |
| 28. | ZS13C16140 | [1] | SCREW | KOBM16x2.0x140mm |
| 29. | ZS13C12055 | [4] | SCREW | KOBM12x1.75x55mm Superseded by part number: ZS18C12055 |
| 30. | ZS13C12120 | [1] | SCREW | KOBM12x1.75x120mm Superseded by part number: ZS18C12120 |
| 31. | ZW22X10000 | [14] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 32. | ZW22X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 33. | ZN12C12010 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 34. | ZN12C16013 | [2] | NUT | KOBM16x2.0mm |
| 35. | ZN12C14011 | [8] | NUT | KOBM14x2.0mm Superseded by part number: ZN18C14011 |
| 36. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 37. | ZS13C10060 | [8] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 38. | 2420R349D710 | [1] | HOSE | HOSE |
| 39. | 2420R349D790 | [1] | HOSE | HOSE |
| 40. | 2416T13362 | [1] | BRACKET | |
| 41. | ZH22Z04000 | [2] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 42. | ZH32Z04002 | [2] | ELBOW | KOB90° -- 1/4" PF - 1/8" PT |
| 43. | 2416T3655 | [5] | CLAMP | KOB |
| 44. | ZC45X11009 | [5] | CLIP | KOBClamp, Single Line -- ID 11x35.5mm Long Superseded by part number: ZC46X11009 |
| 45. | ZN11C06005 | [15] | NUT | KOBNUT M06x1.0mm Superseded by part number: ZN18C06005 |
| 46. | ZW22X06000 | [15] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 47. | ZW11X06000 | [15] | WASHER | KOBID 06.6 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 48. | ZS13C14050 | [6] | CAPSCREW -- M14x2.0x50mm | |
| 49. | ZW11X14000 | [6] | WASHER | KOB |
| 50. | 2418P19953 | [1] | TUBE | TUBE |
| 51. | 2418P18931 | [1] | TUBE | TUBE |
| 52. | ZA23B22000 | [1] | HYD CONNECTOR | KOBM30x1.50x38mm Long |
| 53. | ZA23B28000 | [1] | CONNECTION | KOBM36x1.50x43mm Long |
