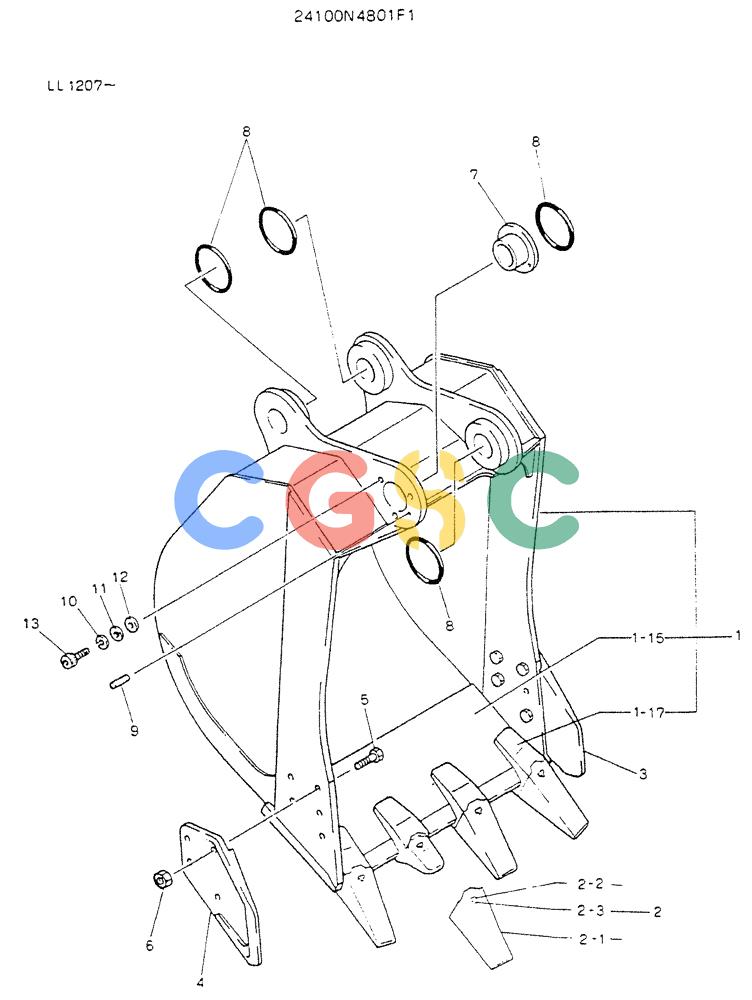

神钢零件查询(K909LC) - MARK II EXCAVATOR BTW LL1207 - LL1487 (1/87-12/03) (09-007) - BUKCET ASSY, 0.7M3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
626 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4801F1 | [1] | BUCKET ASSV,1.2M3 | |
| 1. | 2412J796 | [1] | BUCKET | |
| 1-15. | 2412P543D4 | [1] | EDGE,CUTTING | |
| 1-17. | 2412N219 | [4] | ADAPTER | KOB |
| 2. | 2412U10F1 | [4] | BUCKET TOOTH POINT | KOB |
| 2-1. | 2412U10S1 | [1] | BUCKET TOOTH POINT | KOB |
| 2-2. | 2412U10S2 | [1] | PIN | KOB Superseded by part number: 2412Z136 |
| 2-3. | B12N0006E2 | [1] | LOCK PIN | KOB Superseded by part number: B12N0006E2MK |
| 3. | 2412N289D1 | [1] | BLADE | KOB Superseded by part number: YN69B00006P1 |
| 4. | 2412N289D2 | [1] | BLADE | KOB Superseded by part number: YN69B00007P1 |
| 5. | ZS13C24070 | [10] | SCREW | KOBM24x3.0x70mm |
| 6. | ZN13C24019 | [10] | NUT | KOBM24x3.0mm |
| 7. | 2405T1292 | [1] | BUSHING | KOB |
| 8. | 2445Z888 | [4] | O-RING | KOB |
| 9. | 2419T3747D2 | [1] | PIN | KOBOD 13 x 60mm Long |
| 10. | ZW22K16000 | [3] | LOCK WASHER | KOBID 16 x OD 24 x Th 3.5mm |
| 11. | 2418T12116D2 | [3] | SHIM | KOBID 17 x OD 24 x Th 3.2mm |
| 12. | 2418T12116D1 | [30] | SHIM | KOBID 17 x OD 24 x Th 1.0mm |
| 13. | 2420T4472 | [3] | SCREW,M16 x 2 x 38mm | KOBM16x2.0x38mm |
