纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (02-009) - IDLER ASSY (FOR LONG CRAWLER) P/N YX54D00002F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
665 次

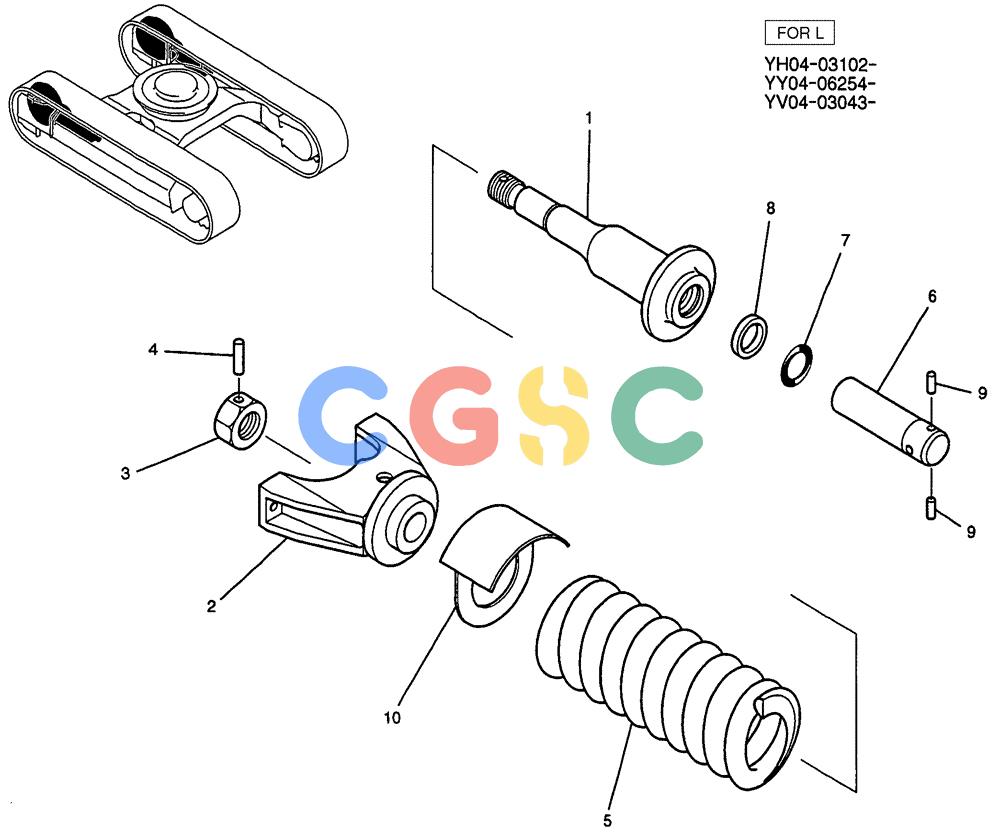

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX54D00002F1 | [1] | IDLER | KOBADJUST ASSY |
| 1. | LP54D01001P1 | [1] | CYLINDER | KOBGREASE |
| 2. | LP54D01002P1 | [1] | BRACKET | KOB |
| 3. | LP54D01003P1 | [1] | NUT | KOB |
| 4. | ZP26D06063 | [1] | PIN | KOBSPRING |
| 5. | 2417P273 | [1] | SPRING | KOB |
| 6. | 2439P171 | [1] | PIN | KOB |
| 7. | ZD12G06500 | [1] | O-RING,64.40mm ID x 70.60mm OD x 3.10mm | KOB |
| 8. | 2418U130D36 | [1] | PACKING | KOBOIL SEAL |
| 9. | 2419T4748 | [2] | PIN | KOB, Serial Range: YH04-03102-YH04-04491 Superseded by part number: LQ54D01023P1 |
| 9. | LQ54D01023P1 | [2] | PIN | SMYH04-04492 to |
| 10. | YX54D01003P1 | [1] | COVER | KOB |
