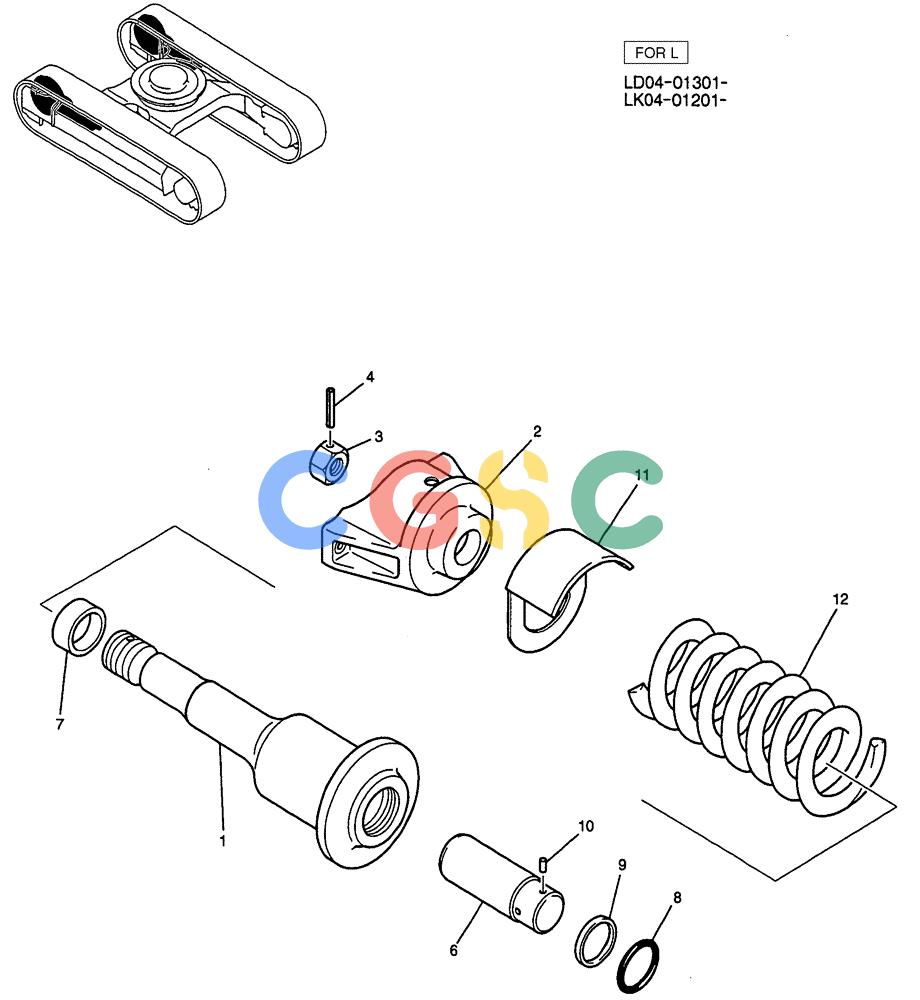

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (02-010) - IDLER ADJUST ASSY (FOR LONG CRAWLER) P/N YN54D00010F2 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
526 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN54D00010F2 | [1] | IDLER | KOBADJUST ASSY Superseded by part number: YN54D00011F2 |
| 1. | YN70V00006P1 | [1] | GREASE | KOBCYLINDER |
| 2. | YN54D01041P1 | [1] | BRACKET | KOB Superseded by part number: YN54D01051P1 |
| 3. | YN54D01038P1 | [1] | NUT | KOB |
| 4. | ZP26D08080 | [1] | PIN | KOBSPRING |
| 6. | 2439P177 | [1] | PISTON | KOB |
| 7. | YN54D01042P1 | [1] | COLLAR | KOB |
| 8. | ZD12G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOB |
| 9. | 2418U130D35 | [1] | PACKING | KOBOIL SEAL |
| 10. | 2419T4748 | [2] | PIN | KOB, Serial Range: LD04-01301-LD04-01324 Superseded by part number: LQ54D01023P1 |
| 10. | LQ54D01023P1 | [2] | PIN | SMLD04-01325 to |
| 11. | YN54D01029P1 | [1] | COVER | KOB |
| 12. | YN54D01043P1 | [1] | SPRING | KOB, Serial Range: LD04-01301-LD04-01302 Superseded by part number: YN54D01044P1 |
