纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (02-019) - SHOE ASSY (FOR LONG CRAWLER) P/N YV60D00004F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
799 次

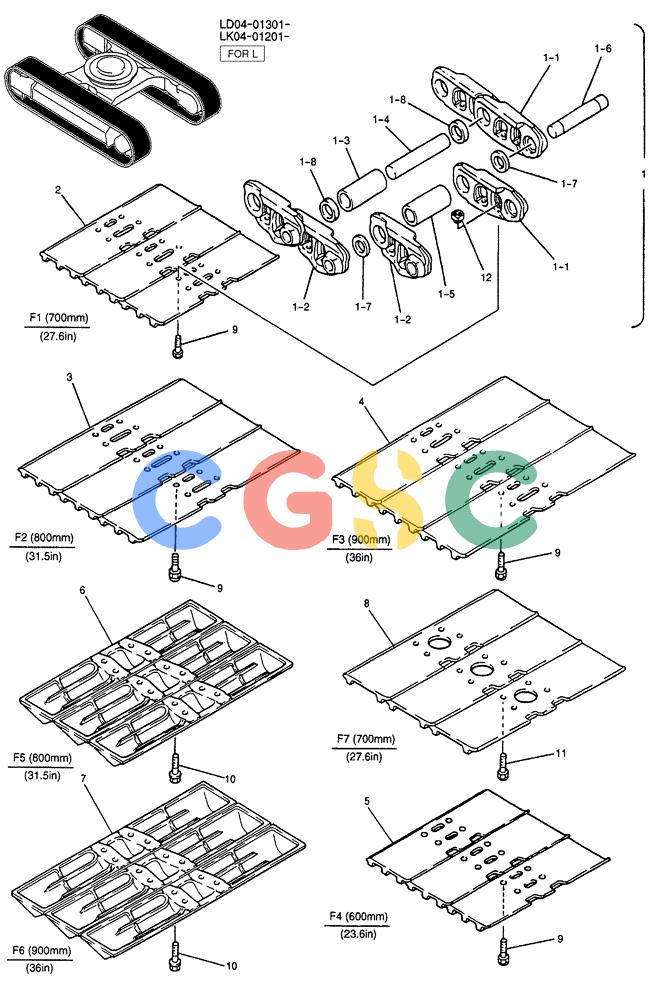

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV60D00004F1 | [2] | SHOE | KOBASSY |
| 1. | YV62D00006F1 | [1] | TRACK LINK | KOBASSY |
| 1-1. | 2424J170D1 | [42] | TRACK LINK | KOB(R.H.) |
| 1-2. | 2424J170D2 | [42] | LINK | KOBTRACK (L.H.) |
| 1-3. | 2405P694 | [41] | BUSHING,37.13mm ID x 58.78mm OD x 138mm L | KOBTRACK |
| 1-4. | 2419P3042 | [41] | PIN,36.63mm OD x 210mm L | KOBTRACK |
| 1-5. | 2405P392 | [1] | BUSHING,36.83mm ID x 58.78mm OD x 129mm L | KOBMASTER |
| 1-6. | YN62D01017P1 | [1] | PIN,36.5mm OD x 210mm L | KOBMASTER |
| 1-7. | 2418T25964 | [2] | COLLAR | KOB |
| 1-8. | YN62D01028P1 | [82] | SEAL,37.25mm ID x 60.5mm OD x 14.2mm Thk | KOB |
| 2. | 2424N196D2 | [42] | SHOE,700mm Triple Grouser | KOB(t10) |
| 9. | 2420Z1292 | [168] | BOLT | KOBSHOE Superseded by part number: YN60D01007P1 |
| 12. | 2420Z1293 | [168] | NUT | KOB Superseded by part number: 2420P1584 |
| . . | YV60D00004F2 | [2] | SHOE | KOBASSY, CONSISTS OF REF 1, 3, 9 & 12 |
| 3. | 2424N196D3 | [42] | SHOE,800mm Triple Grouser | KOB(t10) |
| . . | YV60D00004F3 | [2] | SHOE | KOBASSY, CONSISTS OF REF 1, 4, 9 & 12 |
| 4. | 2424N196D4 | [42] | SHOE,900mm Triple Grouser | KOB |
| . . | YV60D00004F4 | [2] | SHOE | KOBASSY, CONSISTS OF REF 1, 5, 9 & 12 |
| 5. | 2424N196D1 | [42] | SHOE,600mm Triple Grouser | KOB(t10) |
| . . | YV60D00004F5 | [2] | SHOE | KOBASSY, CONSISTS OF REF 1, 6, 10 & 12 |
| 6. | 2424N255 | [42] | SHOE | KOBTRIANGLE |
| 10. | 2420T7262D1 | [168] | BOLT | KOBSHOE |
| . . | YV60D00004F6 | [2] | SHOE | KOBASSY, CONSISTS OF REF 1, 7, 10 & 12 |
| 7. | 2424N205 | [42] | SHOE | KOBTRIANGLE |
| . . | YV60D00004F7 | [2] | SHOE | KOBASSY, CONSISTS OF REF 1, 8, 11 & 12 |
| 8. | YN60D00042P1 | [42] | SHOE | KOB |
| 11. | 2420T7458 | [168] | BOLT,Spher Hex, M20 x 1.5 x 60mm, Cl 2 | KOBSHOE |
