纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (02-018) - SHOE ASSY P/N YW60D00003F6 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
970 次

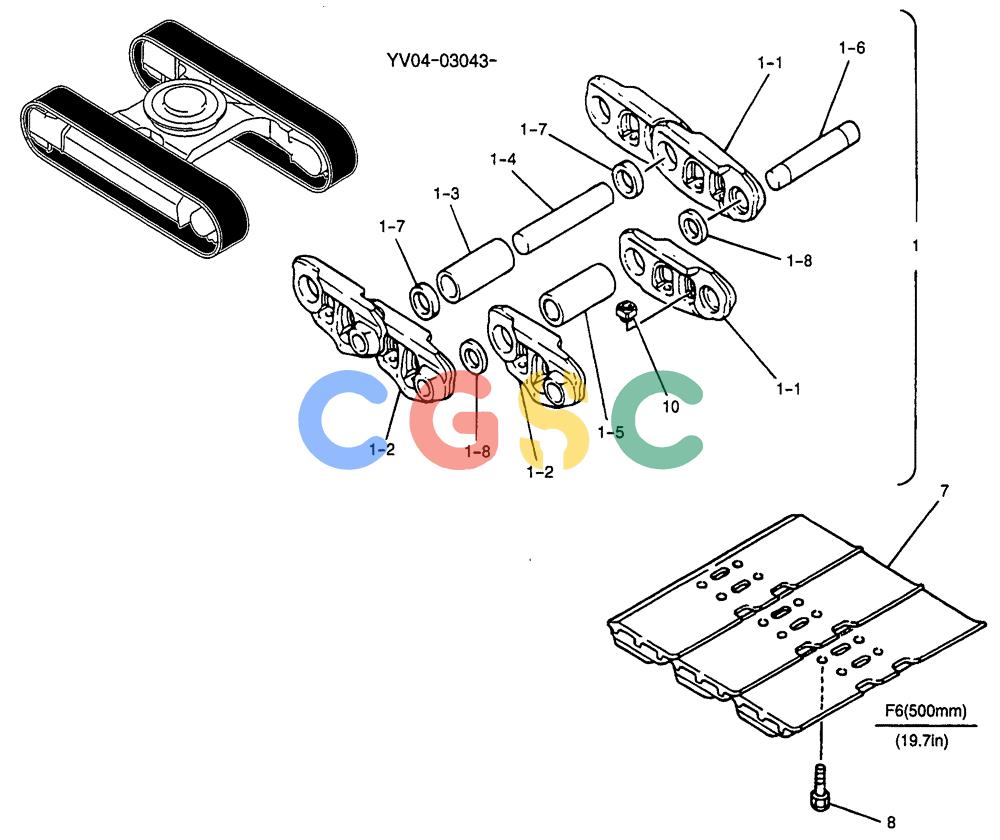

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YW60D00003F6 | [2] | SHOE ASSY | |
| 1-1. | LP62D01001P1 | [41] | CONNECTING LINK | KOB(R.H.) |
| 1-2. | LP62D01002P1 | [41] | CONNECTING LINK | KOB(L.H.) |
| 1-3. | LP62D01005P1 | [40] | BUSHING | KOB |
| 1-6. | LP62D01004P1 | [1] | PIN | KOBMASTER |
| 1-7. | LP62D01008P1 | [80] | SEAL | KOB |
| 1-8. | LP62D01009P1 | [2] | COLLAR CLAMP | KOB |
| 7. | 2424J185 | [41] | TRACK SHOE | KOBRUBBER-PAD |
| 8. | 2420Z2036 | [164] | BOLT | KOB Superseded by part number: YY60D01003P1 |
| 10. | 2420Z2037 | [164] | NUT | KOB |
