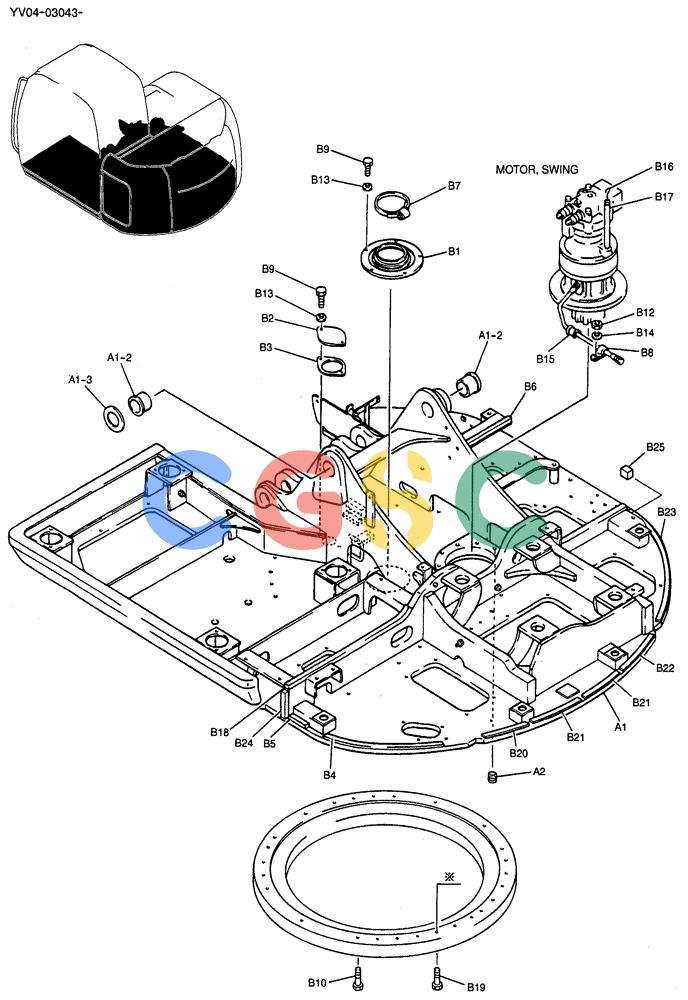

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (01-001) - FRAME ASSY, UPP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
327 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV52F00020F2 | [1] | FRAME ASSY, UPP | |
| A1. | YV52F00024P1 | [1] | FRAME, UPP | |
| A1-2. | YX52F01044P1 | [2] | BUSHING | KOB |
| A1-3. | 2414T2729 | [1] | COVER | KOB |
| A2. | ZS83C20020 | [1] | SCREW | KOBSET |
| . . | YX52F00005F3 | [1] | FRAME GROUP, UPP | |
| B1. | YN52F01160P1 | [1] | SEAL | KOB |
| B2. | YN52F01159P1 | [1] | PLATE | KOB |
| B3. | 2416Z434 | [1] | PACKING | KOB |
| B4. | YX52F01071D1 | [1] | RUBBER | KOB Superseded by part number: YY52F01567D5 |
| B5. | YX52F01071D2 | [1] | RUBBER | KOB Superseded by part number: YY52F01567D5 |
| B6. | YJ21C01156D3 | [1] | RUBBER | KOB |
| B7. | ZC16X14800 | [1] | CLIP | KOB |
| B8. | ZC46X22011 | [1] | CLIP | KOB |
| B9. | ZS18C10025 | [7] | SCREW,Hex, M10 x 25mm | KOB |
| B10. | ZS13C16080 | [27] | CAPSCREW | KOBSCREW CAP |
| B12. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| B13. | YN52F01157P1 | [7] | SEAL | KOB |
| B14. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| B15. | YX52F01047P1 | [1] | GROMMET | KOB |
| B16. | NSS | [1] | NOT SERVICED SEPARATELY | CONDIPSTICK |
| B18. | YX52F01050P1 | [1] | RUBBER | KOB |
| B19. | HS53C16080G1 | [1] | SCREW | KOBCAP |
| B20. | YX52F01071D3 | [1] | INSULATING PANEL | KOBRUBBER Superseded by part number: YY52F01567D5 |
| B21. | YX52F01071D6 | [2] | INSULATING PANEL | KOBRUBBER Superseded by part number: YY52F01567D5 |
| B22. | YX52F01071D4 | [1] | INSULATING PANEL | KOBRUBBER Superseded by part number: YY52F01567D5 |
| B23. | YX52F01071D5 | [1] | INSULATING PANEL | KOBRUBBER Superseded by part number: YY52F01567D5 |
| B24. | YY52F01267P1 | [1] | INSULATING PANEL | KOB |
| B25. | YY52F01266P1 | [1] | INSULATING PANEL | KOB |
