神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (02-019) - COVER ASSY, UNDER (FOR SILENT TYPE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
719 次

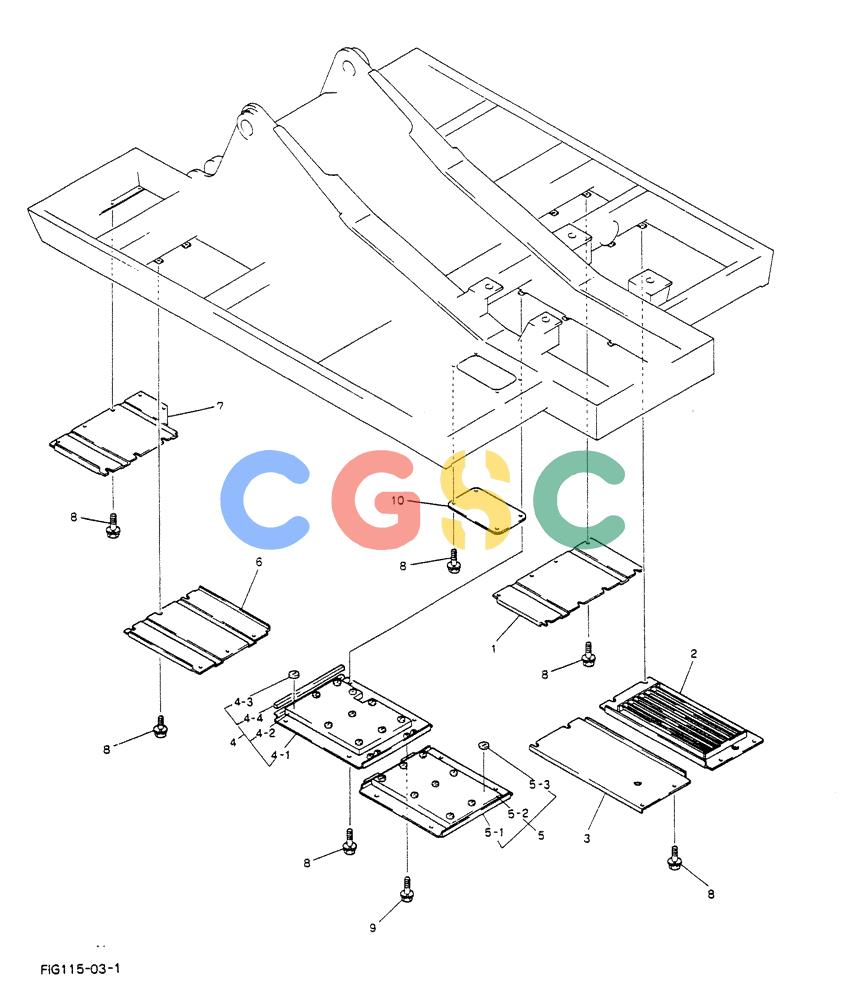

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J11085F1 | [1] | COVER ASSY,UNDER | |
| 1. | 2414P6471 | [1] | COVER | KOB |
| 2. | 2414P6771 | [1] | COVER | KOB |
| 3. | 2414P6772 | [1] | COVER | KOBASSY |
| 4. | 2414T4460F1 | [1] | COVER ASSY | |
| 4-1. | 2414P6900 | [1] | COVER | |
| 4-2. | 2427T2109 | [1] | INSULATION,SOUND | |
| 4-3. | 2418T8864 | [10] | WASHER | KOB |
| 4-4. | 2416Z490D2 | [1] | RUBBER,CUSHION | |
| 5. | 2414T4461F1 | [1] | COVER ASSY | |
| 5-1. | 2414P6901 | [1] | COVER | |
| 5-2. | 2427T2110 | [1] | INSULATION,SOUND | |
| 5-3. | 2418T8864 | [9] | WASHER | KOB |
| 6. | 2414P6469 | [1] | COVER | KOB |
| 7. | 2414P6470 | [1] | COVER | KOB |
| 8. | 2420T6787 | [42] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 9. | 2420T6788 | [4] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
| 10. | 2414T3343 | [1] | COVER | KOB |
