神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (02-020) - COVER ASSY, UNDER (FOR NORTH EUROPE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
903 次

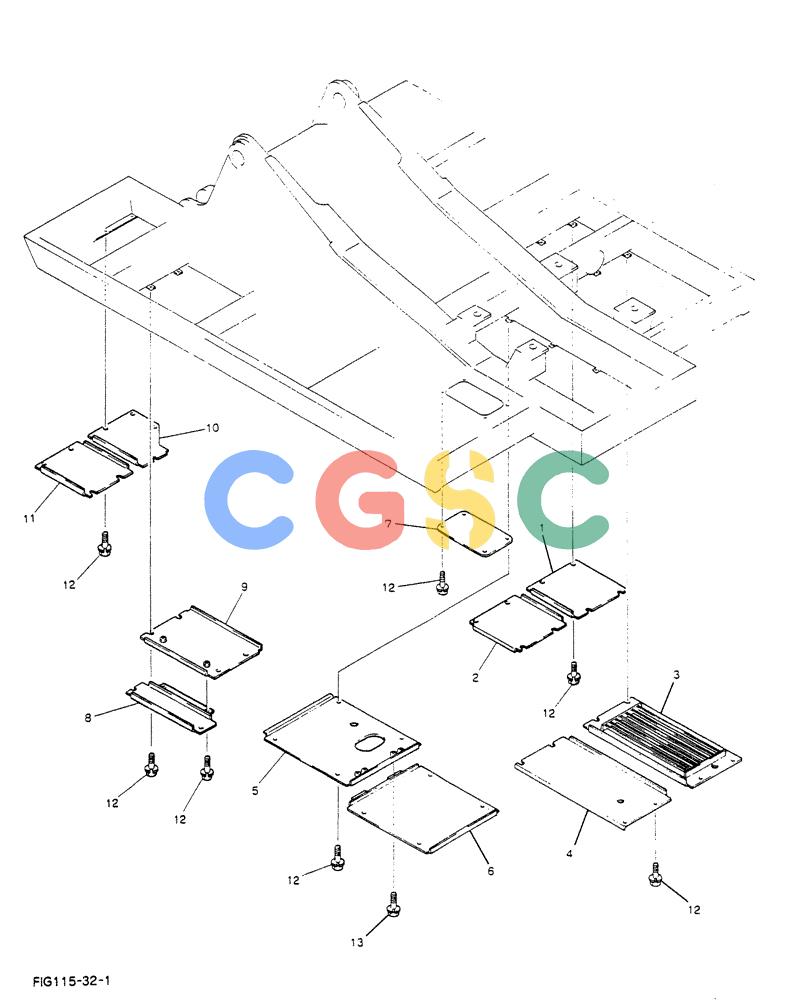

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J11050F1 | [1] | COVER ASSY,UNDER | |
| 1. | 2414P6878 | [1] | COVER | |
| 2. | 2414P6879 | [1] | COVER | |
| 3. | 2414P6884 | [1] | COVER | KOB |
| 4. | 2414P6885 | [1] | COVER | |
| 5. | 2414P6886 | [1] | COVER | COVER |
| 6. | 2414P6887 | [1] | COVER | COVER |
| 7. | 2414T3343 | [1] | COVER | KOB |
| 8. | 2414P6881 | [1] | COVER | |
| 9. | 2414P6880 | [1] | COVER | |
| 10. | 2414P6882 | [1] | COVER | |
| 11. | 2414P6883 | [1] | COVER | |
| 12. | 2420T6787 | [44] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 13. | 2420T6788 | [4] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
