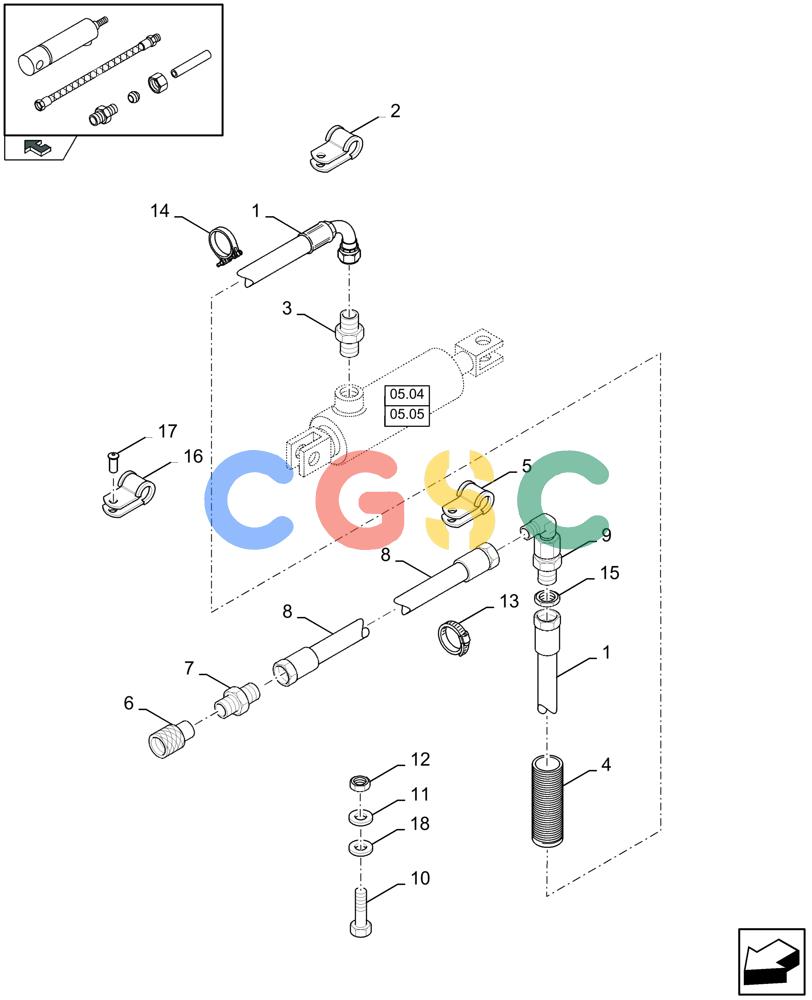

| 1. |
84449978
|
[1] |
FLEXIBLE HOSE
|
ZED
|
| 2. |
431351
|
[1] |
CLAMP,15mm ID, 8.5mm Bolt Hole, P Type
|
ZED
|
| 3. |
9837622
|
[1] |
HYD CONNECTOR,9/16" JIC x 3/8" BSPP
|
PA
|
| 4. |
NS
|
[4] |
NOT SERVICED
|
BAS
|
| 5. |
396718
|
[2] |
STRAP
|
ZED
, Serial Range: -C699 Superseded by part number: 529070
|
| 5. |
9827902
|
[3] |
CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type
|
WIN
, Start Serial: D700
|
| 6. |
9839028
|
[1] |
HYD CONNECTOR,M18 x 1.5
|
PA
|
| 7. |
395019
|
[1] |
HYD CONNECTOR,M18 x 1.5 ORB x M16 x 1.5 ORB
|
PA
|
| 8. |
84031413
|
[1] |
HYDRAULIC HOSE,7.9mm ID x 2500mm L, SAE 100R1
|
ZED
, Serial Range: -C699
|
| 8. |
87492507
|
[1] |
FLEXIBLE HOSE,7.92mm ID x 2500mm L, SAE 100R1
|
ZED
, Start Serial: D700
|
| 9. |
84007700
|
[1] |
ELBOW
|
ZED
, Serial Range: -C699
|
| 10. |
43128
|
[2] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 11. |
322358
|
[3] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 12. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 13. |
418407
|
[4] |
CLAMP,24mm ID, 8.5mm Bolt Hole, P Type
|
ZED
|
| 14. |
84449335
|
[2] |
CABLE TIE,346mm L
|
ZED
, Start Serial: D700
|
| 15. |
87493575
|
[1] |
NUT
|
ZED
, Start Serial: D700
|
| 16. |
9837692
|
[1] |
CLAMP,16.67mm ID, 13.46mm Bolt Hole, P Type
|
ZED
, Start Serial: D700
|
| 17. |
89512289
|
[1] |
RIVET
|
ZED
, Start Serial: D700 Superseded by part number: 9512289
|
| 18. |
140041
|
[1] |
WASHER,M8 x 28mm OD x 3mm Thk
|
ZED
, Start Serial: D700 Superseded by part number: 9826296
|
