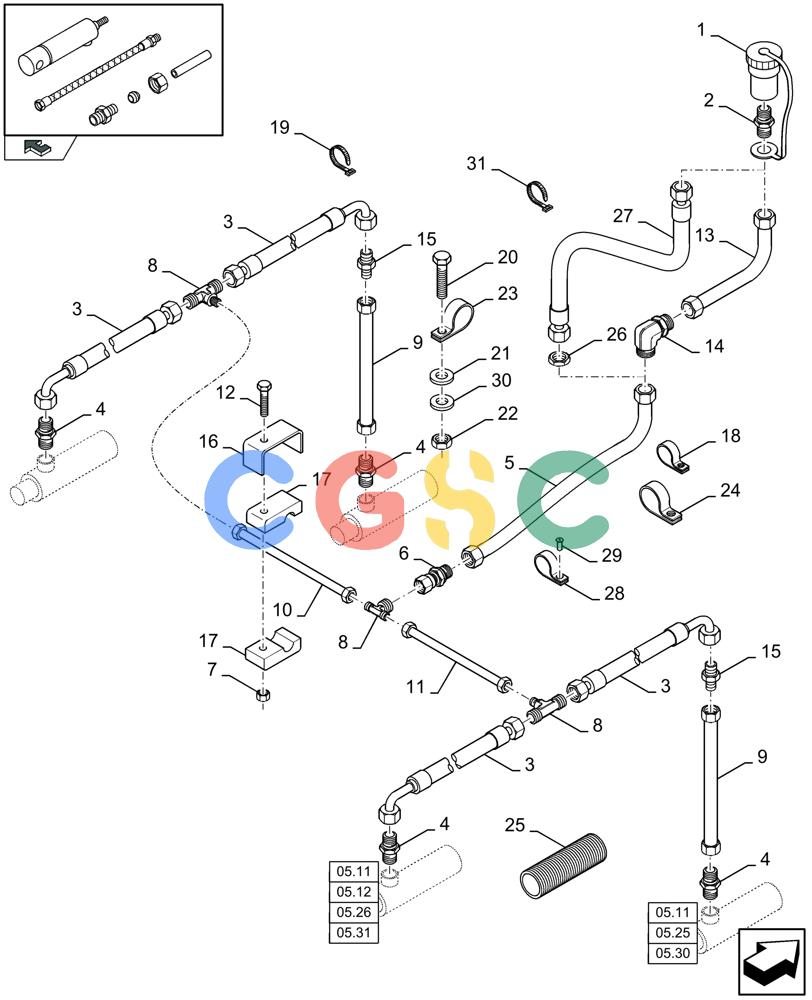

| 1. |
9839028
|
[1] |
HYD CONNECTOR,M18 x 1.5
|
PA
|
| 2. |
395019
|
[1] |
HYD CONNECTOR,M18 x 1.5 ORB x M16 x 1.5 ORB
|
PA
|
| 3. |
84078809
|
[4] |
FLEXIBLE HOSE
|
ZED
|
| 4. |
9813512
|
[4] |
HYD CONNECTOR
|
ZED
Superseded by part number: 89813512
|
| 5. |
84449978
|
[1] |
FLEXIBLE HOSE
|
ZED
|
| 6. |
84078124
|
[1] |
HYD CONNECTOR,9/16" - 18 JIC x M16 x 1.5
|
ZED
|
| 7. |
412152
|
[2] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 8. |
395472
|
[3] |
3 WAY CONNECTION,M16 x 1.5 x M16 x 1.5 x M16 x 1.5
|
ZED
|
| 9. |
84607136
|
[2] |
HYD TUBE,100 mm L
|
ZED
|
| 10. |
84078361
|
[1] |
HYD TUBE,10 mm OD, 310 mm Length
|
ZED
|
| 10. |
84078362
|
[1] |
HYD TUBE,10 mm OD, 690 mm Length
|
ZED
|
| 12. |
43118
|
[2] |
BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8
|
NH
Superseded by part number: 120102
|
| 13. |
84031413
|
[1] |
HYDRAULIC HOSE,7.9mm ID x 2500mm L, SAE 100R1
|
ZED
, Serial Range: -C699
|
| 14. |
84007700
|
[1] |
ELBOW
|
ZED
, Serial Range: -C699
|
| 15. |
150017
|
[2] |
HYD CONNECTOR,M16 x 1.5 x M16 x 1.5
|
ZED
Superseded by part number: 47499003
|
| 16. |
433101
|
[2] |
SUPPORT
|
NH
10 MM
|
| 17. |
433008
|
[4] |
CLAMP
|
NH
M10
|
| 18. |
418407
|
[4] |
CLAMP,24mm ID, 8.5mm Bolt Hole, P Type
|
ZED
Tube
|
| 19. |
323597
|
[2] |
CABLE TIE,165mm OAL x 9mm Thk
|
NH
CABLE STRAP, Serial Range: -C699 Superseded by part number: 14560287
|
| 19. |
9993154
|
[2] |
ELASTIC STRAP
|
PLO
, Start Serial: D700 Superseded by part number: 86566990
|
| 20. |
43128
|
[1] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 21. |
322358
|
[1] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 22. |
9706690
|
[1] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 23. |
431351
|
[1] |
CLAMP,15mm ID, 8.5mm Bolt Hole, P Type
|
ZED
|
| 24. |
396718
|
[1] |
STRAP
|
ZED
, Serial Range: -C699 Superseded by part number: 529070
|
| 24. |
9827902
|
[3] |
CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type
|
WIN
, Start Serial: D700
|
| 25. |
NS
|
[1] |
NOT SERVICED
|
BAS
|
| 26. |
87493575
|
[1] |
NUT
|
ZED
, Start Serial: D700
|
| 27. |
87492507
|
[1] |
FLEXIBLE HOSE,7.92mm ID x 2500mm L, SAE 100R1
|
ZED
, Start Serial: D700
|
| 28. |
9837692
|
[1] |
CLAMP,16.67mm ID, 13.46mm Bolt Hole, P Type
|
ZED
, Start Serial: D700
|
| 29. |
89512289
|
[1] |
RIVET
|
ZED
, Start Serial: D700 Superseded by part number: 9512289
|
| 30. |
140041
|
[1] |
WASHER,M8 x 28mm OD x 3mm Thk
|
ZED
, Start Serial: D700 Superseded by part number: 9826296
|
| 31. |
84449335
|
[2] |
CABLE TIE,346mm L
|
ZED
, Start Serial: D700
|
