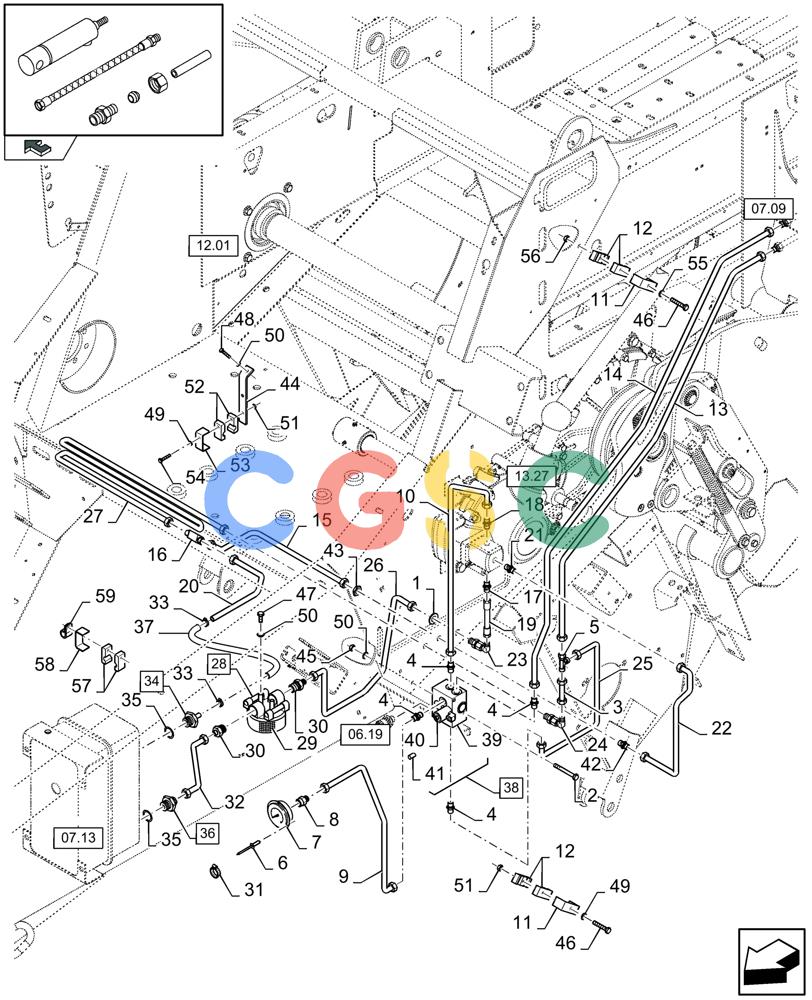

| 1. |
140093
|
[1] |
WASHER
|
ZED
Superseded by part number: 80140093
|
| 2. |
412215
|
[2] |
BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8
|
NH
|
| 3. |
87326530
|
[1] |
HYD TUBE,8 mm DIA x 100 mm L
|
ZED
|
| 4. |
84441294
|
[4] |
HYD CONNECTOR
|
ZED
|
| 5. |
379430
|
[1] |
3 WAY CONNECTION
|
ZED
|
| 6. |
9511936
|
[3] |
RIVET
|
ZED
|
| 7. |
84801502
|
[1] |
MEASURING INSTRUMENT
|
ZED
|
| 8. |
84064667
|
[1] |
HYD CONNECTOR
|
ZED
|
| 9. |
84121282
|
[1] |
HOSE
|
ZED
|
| 10. |
84121284
|
[1] |
HYD TUBE,8 mm OD, 419, 184 mm Length
|
ZED
|
| 11. |
431941
|
[3] |
SUPPORT
|
DUB
|
| 12. |
430357
|
[6] |
CLAMP
|
DUB
|
| 13. |
87324694
|
[1] |
HYD TUBE
|
ZED
|
| 14. |
84121286
|
[1] |
HYD TUBE
|
ZED
|
| 15. |
87719638
|
[1] |
HYD TUBE,274, 149 mm L
|
ZED
|
| 17. |
9813512
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 89813512
|
| 18. |
84043514
|
[1] |
HYD CONNECTOR
|
ZED
|
| 19. |
87324041
|
[1] |
HYD TUBE
|
ZED
|
| 20. |
87719640
|
[1] |
HYD TUBE,200, 184 mm L
|
ZED
, Serial Range: -C721
|
| 20. |
84171381
|
[1] |
HYD TUBE,8 mm DIA
|
ZED
, Start Serial: D722
|
| 20. |
87728655
|
[1] |
HYD TUBE,8 mm DIA x 258, 147 mm L
|
ZED
, Serial Range: -C721
|
| 20. |
84171383
|
[2] |
HYD TUBE,8 mm OD
|
ZED
, Start Serial: D722
|
| 21. |
9513082
|
[1] |
FITTING
|
PA
|
| 22. |
87719642
|
[1] |
HYD TUBE,355, 202 mm L
|
ZED
|
| 23. |
84007700
|
[1] |
ELBOW
|
ZED
|
| 24. |
84041508
|
[1] |
HYD CONNECTOR
|
ZED
|
| 25. |
84121280
|
[1] |
HYDRAULIC HOSE
|
ZED
|
| 26. |
84071836
|
[1] |
HYD TUBE
|
ZED
, Serial Range: -C721
|
| 26. |
84163708
|
[1] |
HYD TUBE,10 mm DIA
|
ZED
, Serial Range: -F722895
|
| 26. |
84483483
|
[1] |
HYDRAULIC HOSE,7.92mm ID x 720mm L, SAE 100R16
|
ZED
, Start Serial: D896
|
| 26. |
84073553
|
[1] |
HYD TUBE
|
ZED
, Serial Range: -C721
|
| 26. |
84163721
|
[1] |
HYD TUBE,10 mm OD
|
ZED
, Serial Range: -F722895
|
| 27. |
87719644
|
[1] |
HYD TUBE
|
ZED
|
| 27. |
87728657
|
[1] |
HYD TUBE
|
ZED
|
| 28. |
84068686
|
[1] |
HYDRAULIC OIL FILTER
|
ZED
ASSEMBLY, (29)
|
| 29. |
84078520
|
[1] |
HYDRAULIC OIL FILTER
|
ZED
ELEMENT
|
| 30. |
84064606
|
[2] |
HYD CONNECTOR
|
ZED
|
| 31. |
323597
|
[2] |
CABLE TIE,165mm OAL x 9mm Thk
|
NH
CABLE STRAP Superseded by part number: 14560287
|
| 32. |
84071779
|
[1] |
HYD TUBE,10 mm OD, 221.2, 205 mm Length
|
ZED
|
| 32. |
84077067
|
[1] |
HYD TUBE
|
ZED
|
| 33. |
574518
|
[2] |
HOSE CLAMP,6.3mm - 15.7mm, SAE # 4
|
NH
Superseded by part number: 86625022
|
| 34. |
84074545
|
[1] |
HYD CONNECTOR
|
ZED
(35)
|
| 35. |
84032746
|
[1] |
O-RING,2.1mm Thk x 15.4mm ID, 90 Duro
|
ZED
|
| 36. |
84074610
|
[1] |
HYD CONNECTOR
|
ZED
(35)
|
| 37. |
84458460
|
[1] |
HOSE,8.00 mm ID x 650.00 mm
|
ZED
|
| 38. |
84460187
|
[1] |
HYDRAULIC VALVE
|
ZED
(39 to 41)
|
| 39. |
87357749
|
[1] |
HYDRAULIC VALVE
|
ZED
|
| 40. |
87357750
|
[1] |
MAGNET
|
ZED
|
| 41. |
87357756
|
[1] |
HYDRAULIC VALVE
|
ZED
Superseded by part number: 247697A2
|
| 42. |
84025707
|
[1] |
HYD CONNECTOR
|
PLO
|
| 43. |
100065
|
[1] |
JAM NUT,M14 x 1.5, Cl 8
|
ZED
Superseded by part number: 80100065
|
| 44. |
84818476
|
[2] |
SUPPORT
|
ZED
|
| 45. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 46. |
43118
|
[3] |
BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8
|
NH
Superseded by part number: 120102
|
| 47. |
120103
|
[2] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
Superseded by part number: 16043224
|
| 48. |
43127
|
[2] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 49. |
140015
|
[3] |
WASHER,6.4mm ID x 14mm OD x 1.6mm Thk
|
NH
Superseded by part number: 9820463
|
| 50. |
322358
|
[6] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 51. |
412152
|
[6] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 52. |
433008
|
[6] |
CLAMP
|
NH
|
| 53. |
433101
|
[3] |
SUPPORT
|
NH
|
| 54. |
86977790
|
[3] |
BOLT,Hex, M6 x 45mm, Cl 8.8
|
ZED
|
| 55. |
322357
|
[1] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
, Start Serial: D800
|
| 56. |
9833239
|
[1] |
THREADED INSERT
|
ZED
, Start Serial: D800
|
| 59. |
431351
|
[1] |
CLAMP,15mm ID, 8.5mm Bolt Hole, P Type
|
ZED
, Start Serial: D896
|
