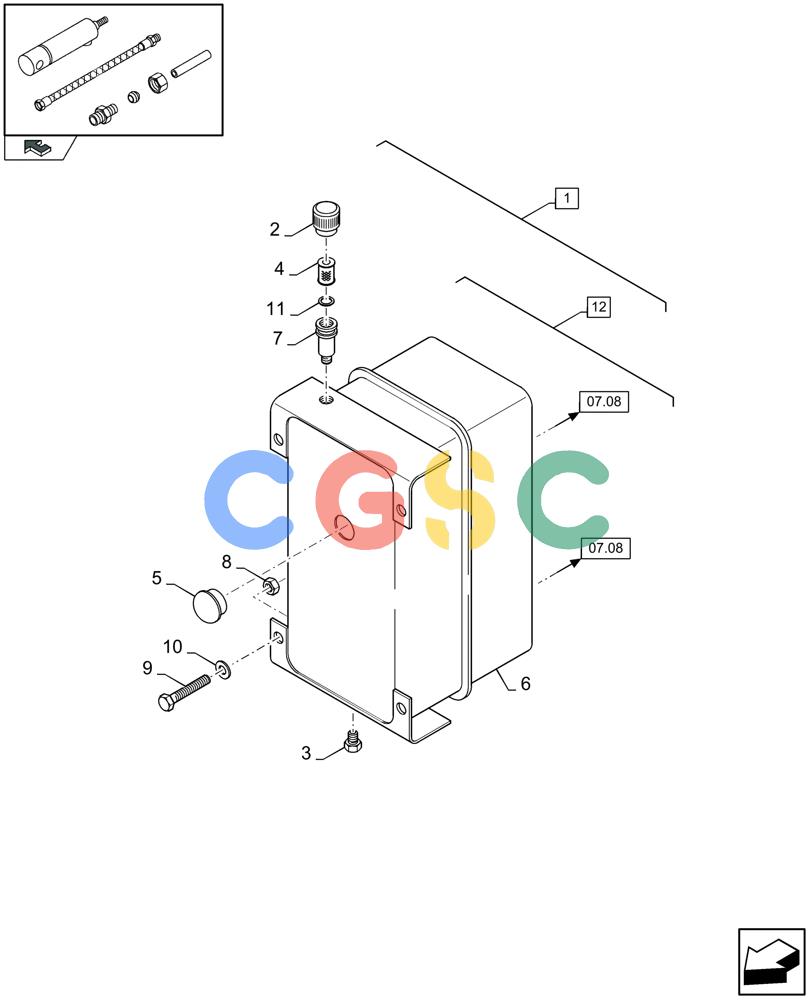

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (07.13[01]) - HYDRAILIC OIL RESERVOIR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
393 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87758394
|
[1] |
RESERVOIR, HYDRAULIC
|
ZED
(2 to 7), Serial Range: -C719 Superseded by part number: 84398983
|
| 1. |
84147845
|
[1] |
RESERVOIR, HYDRAULIC
|
ZED
(2 to 7, 11), Serial Range: -F720895 Superseded by part number: 84398983
|
| 1. |
NS
|
[1] |
NOT SERVICED
|
BAS
(2 to 7, 11,12), Start Serial: D896
|
| 2. |
84819493
|
[1] |
FILLER CAP
|
ZED
, Serial Range: -C719
|
| 2. |
84147846
|
[1] |
BREATHER
|
ZED
(4), Start Serial: D720 Superseded by part number: 87583159
|
| 3. |
84078485
|
[1] |
PLUG
|
ZED
|
| 4. |
84819494
|
[1] |
HYDRAULIC OIL FILTER
|
ZED
|
| 5. |
84457448
|
[1] |
LEVEL GAUGE
|
ZED
|
| 6. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
|
| 7. |
84146529
|
[1] |
FITTING
|
ZED
, Start Serial: D720
|
| 8. |
9706690
|
[4] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 9. |
120104
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 10. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 11. |
220022
|
[1] |
SEALING RING,22.2mm ID x 26.9mm OD x 1.5mm Thk
|
ZED
SEALRING, Start Serial: D720
|
| 12. |
84398983
|
[1] |
RESERVOIR, HYDRAULIC
|
ZED
(3, 5, 6), Start Serial: D896
|
