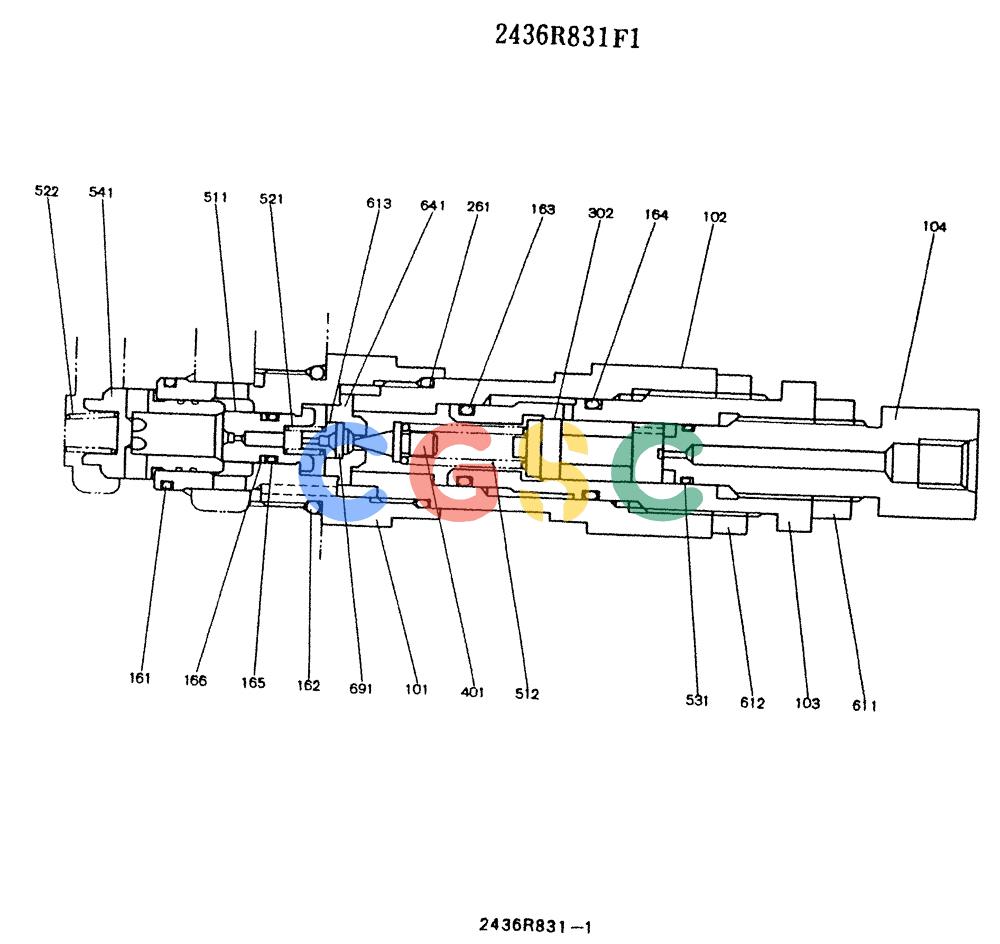

神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (11-007) - VALVE ASSY, PORT RELIEF (2436R831F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
258 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R831F1 | [1] | VALVE PRESSURE RELIE | KOBVALVE ASSY PORT RELIEF Superseded by part number: 2436R842F1 |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 102. | 2436R831S102 | [1] | PLUG | |
| 103. | 2436U1281S103 | [1] | PLUG | |
| 104. | 2436U1281S104 | [1] | PLUG | |
| 161. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 162. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 163. | ZD12P01200 | [1] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 164. | ZD12P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 165. | 2436R819S163 | [1] | O-RING | KOB Superseded by part number: 2436R837S163 |
| 166. | ZD85P00700 | [1] | BACK-UP RING | KOBID 07 x OD 10 x Th 1.25mm |
| 261. | ZD12P02200 | [1] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 302. | 2436U1281S302 | [1] | PISTON | KOBPISTON |
| 401. | 2436R682S401 | [1] | POPPET | KOB |
| 511. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 512. | 2436U1281S511 | [1] | SPRING | KOB |
| 521. | 2436R683S521 | [1] | SPRING | KOB |
| 522. | 2436R683S522 | [1] | SPRING | KOB |
| 531. | ZD12P00900 | [1] | O-RING | KOBID 08.80 ± 0.17 x OD 12mm |
| 541. | 2436R831S541 | [1] | SEAT | KOB |
| 611. | 2436R831S611 | [1] | NUT, LOCK | |
| 612. | 2436U1281S612 | [1] | LOCK NUT | KOBNUT, LOCK |
| 613. | 2436R750S613 | [1] | SEAT/SLOT | KOB |
| 641. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 691. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER |
