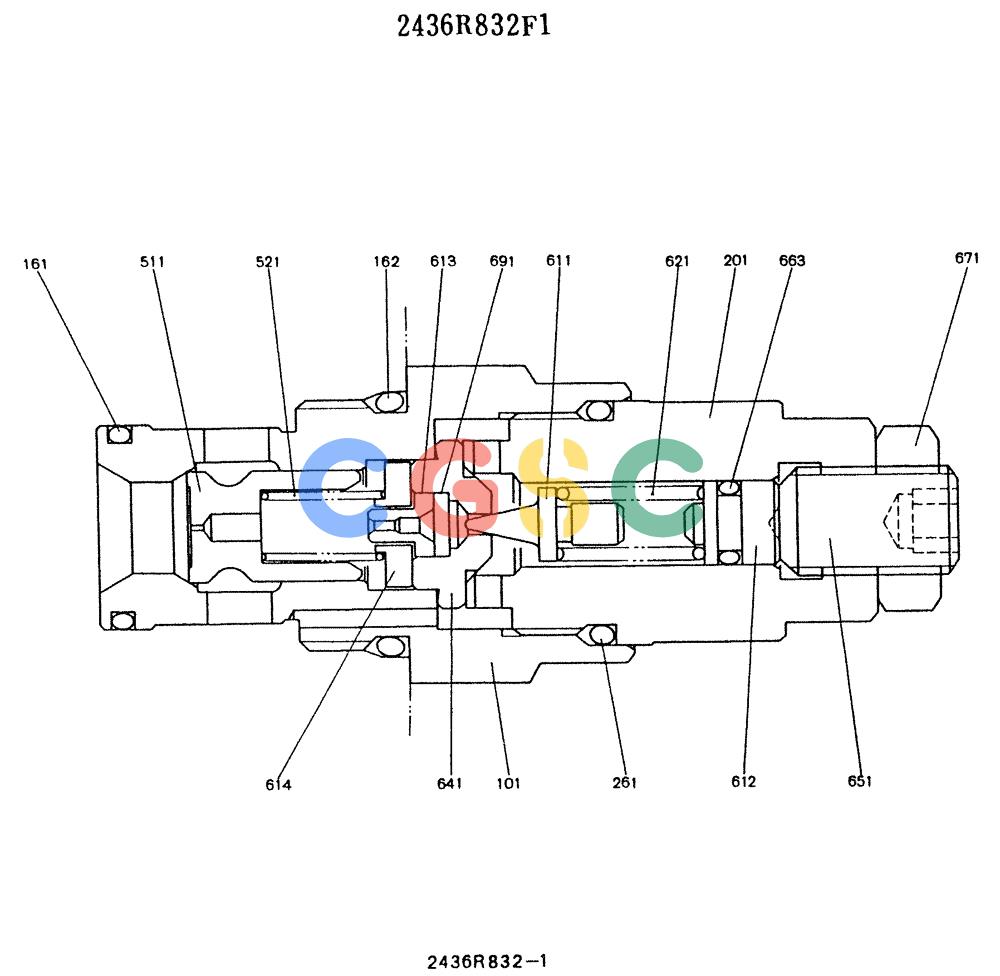

神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (11-008) - VALVE ASSY, RELIEF (PROPELLING) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
746 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R832F1 | [1] | VALVE | KOBPROPELLING |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 161. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 162. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 201. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 261. | ZD12P02200 | [1] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 511. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 521. | 2436R682S211 | [1] | SPRING | KOB |
| 611. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET |
| 612. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 613. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 614. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 621. | 2436R683S1 | [1] | SPRING | KOB |
| 641. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 651. | NSS | [1] | NOT SOLD SEPARAT | CONSETSCREW |
| 663. | ZD12P00600 | [1] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm |
| 671. | ZN11C12007 | [1] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12007 |
| 691. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER |
| . . | 2436R832R100 | [1] | REPAIR KIT, INCLUDE ITEM 101,511 | |
| . . | 2436R832R200 | [1] | REPAIR KIT | KOBINCLUDE ITEM 613, 641 & 691 |
