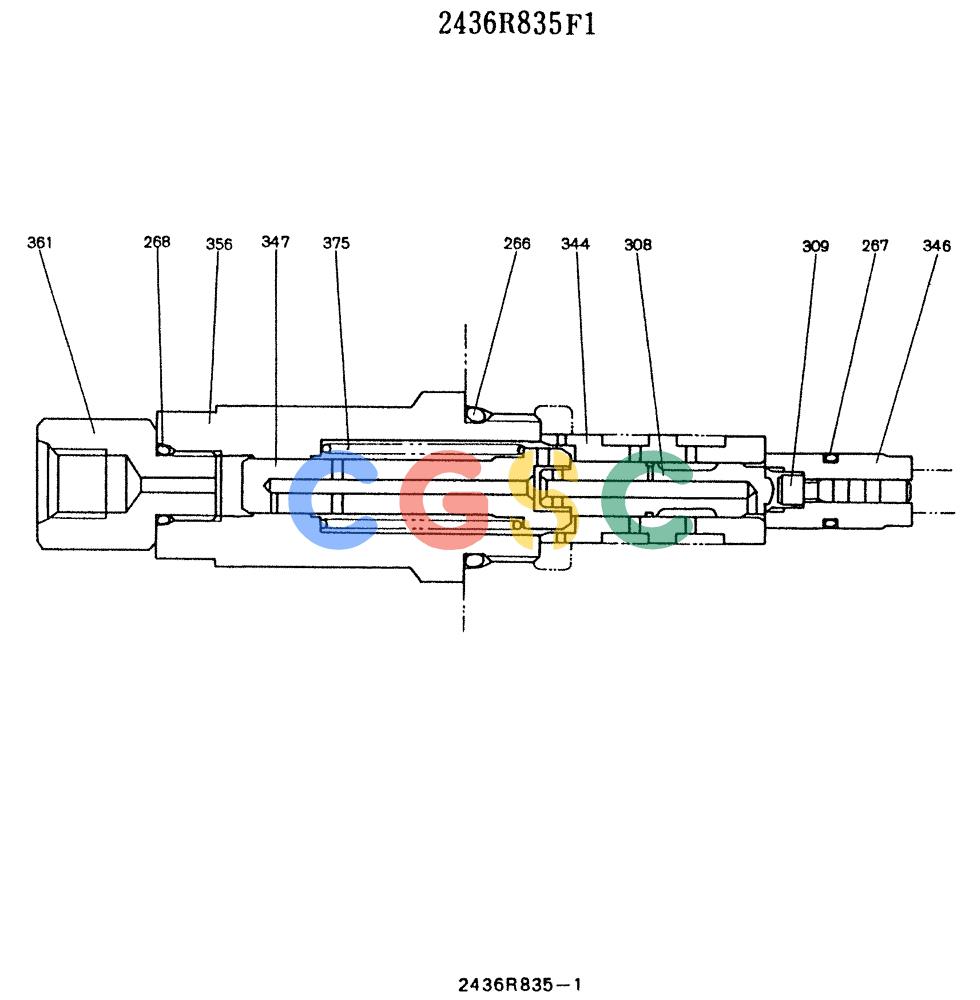

神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (11-010) - VALVE ASSY, RELIEF (2435R835F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
799 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R835F1 | [1] | VALVE PRESSURE RELIE | KOB |
| 266. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 267. | ZD12P01090 | [1] | O-RING | KOBID 09.80 ± 0.17 x OD 14mm |
| 268. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 308. | 2436U1231S308 | [1] | COUNTER | COUNTER |
| 309. | 2436U1231S309 | [1] | PISTON & RINGS KIT | KOB |
| 344. | 2436U1231S344 | [1] | SLEEVE | KOB |
| 346. | 2436U1231S346 | [1] | BUSHING | KOB |
| 347. | 2436R835S347 | [1] | SPOOL | |
| 356. | 2436R835S356 | [1] | PLUG | |
| 361. | 2436R835S361 | [1] | STOPPER | |
| 375. | 2436R835S375 | [1] | SPRING | |
