神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (11-009) - VALVE ASSY, RELIEF (2435R834F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
920 次

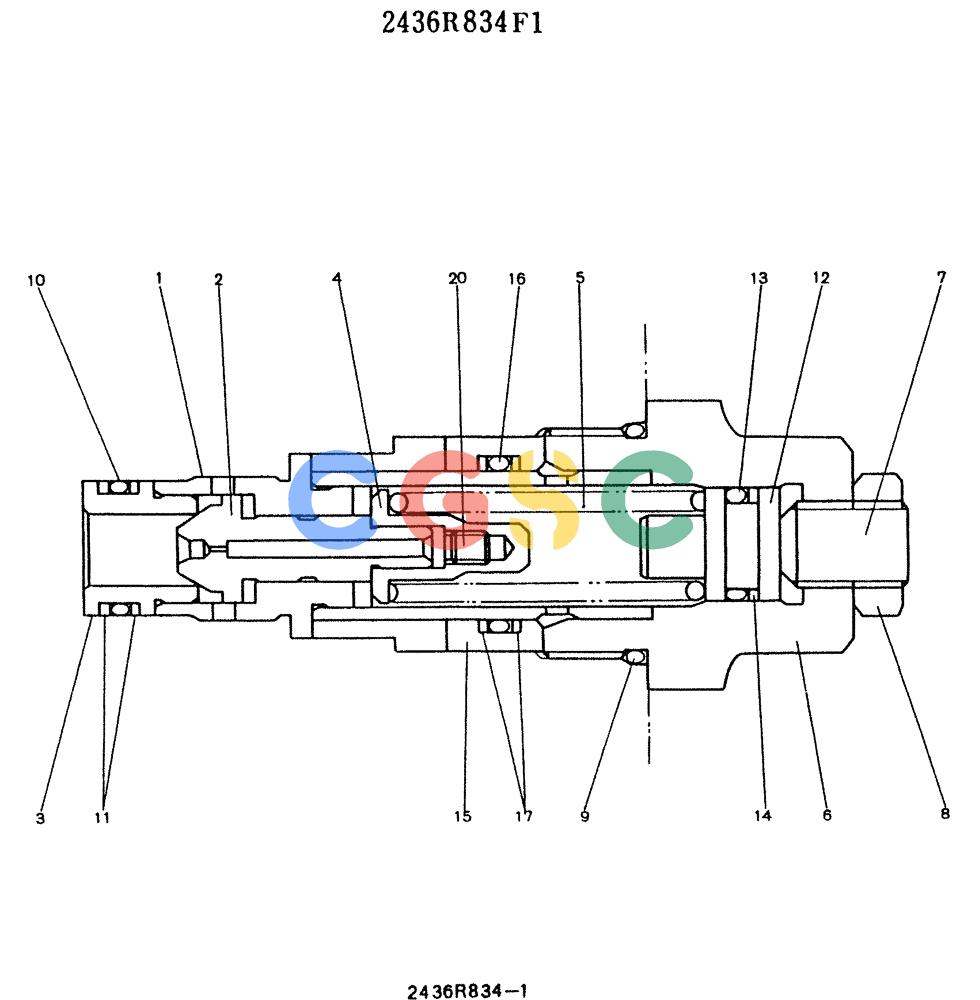

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R834F1 | [1] | VALVE | KOB |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, POPPET |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONSETSCREW |
| 8. | 2436U1027S81 | [1] | NUT | NUT |
| 9. | 2436R282S1 | [1] | O-RING | KOB Superseded by part number: 2436U388S42 |
| 10. | ZD11P01500 | [1] | O-RING | KOB |
| 11. | ZD85P01500 | [2] | RING | KOB |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONGUIDE, SPRING |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONO-RING |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONRING, BACK-UP |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 16. | ZD12P02100 | [1] | O-RING,2.4mm Thk x 20.8mm ID, 90 Duro | KOBO-Ring -- ID 20.80 ± 0.23 x OD 25mm |
| 17. | ZD85P02100 | [2] | RING | KOBBack-Up -- ID 21 x OD 25 x Th 1.25mm |
| 20. | NSS | [1] | NOT SOLD SEPARAT | CONORIFICE |
