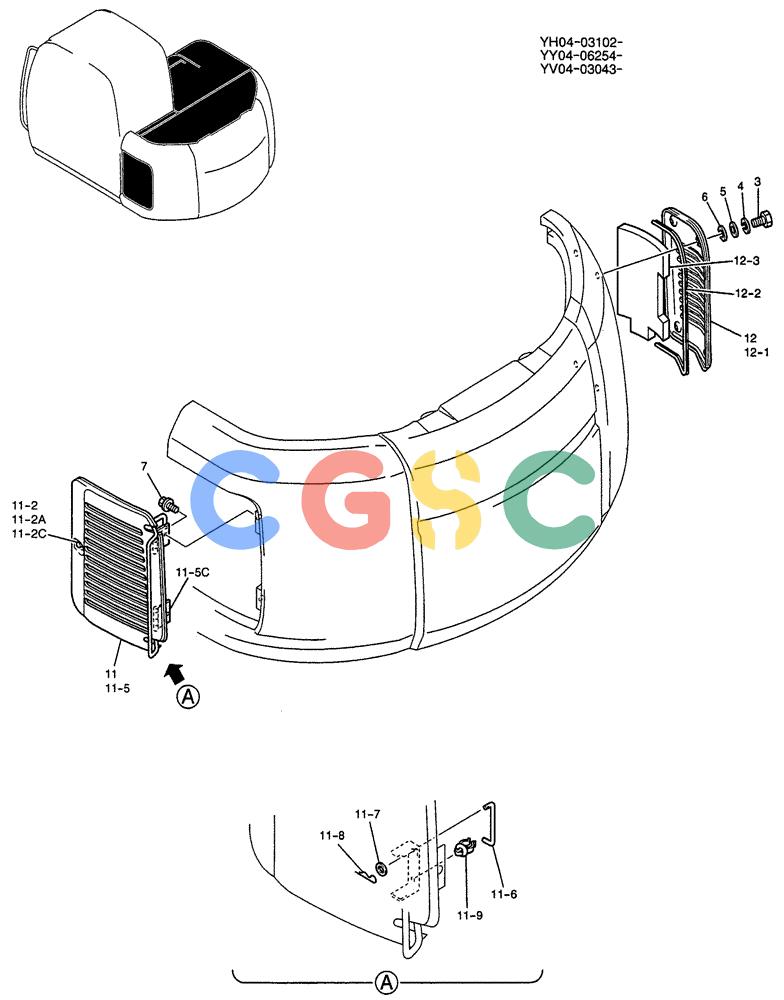

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (01-048) - GUARD INSTAL (COUNTERWEIGHT) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
382 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY21C00007F5 | [1] | GUARD INSTAL | |
| 3. | HS18C10025G1 | [4] | SCREW | KOBCAP Superseded by part number: ZS18C10025 |
| 4. | YT21C01172P1 | [4] | LOCK WASHER | KOB |
| 5. | HY25X11024G1 | [4] | WASHER | KOB |
| 6. | YT21C01187P2 | [4] | WASHER | KOB |
| 7. | ZM32C12030 | [2] | BOLT | KOBSEMS |
| 11. | YY21C01045F4 | [1] | GUARD | KOBASSY |
| 11-2. | YT21C01090F2 | [1] | LOCK | KOBASSY |
| 11-2A. | YR22C01025P2 | [1] | LOCK | KOB |
| 11-2C. | YT21C01136P1 | [1] | PLATE | KOB |
| 11-5. | YY21C01273P1 | [1] | GUARD | KOB |
| 11-5C. | YX21C01056P1 | [1] | HINGE | KOB |
| 11-6. | YT21C01354P1 | [1] | STAY | KOB |
| 11-7. | ZW16X08000 | [1] | WASHER | KOB |
| 11-8. | 2419R9D2 | [1] | COTTER PIN | KOBSNAP |
| 11-9. | YR21C01123P1 | [1] | COLLAR | KOB |
| 12. | YY21C01662F1 | [1] | GUARD | KOBASSY |
| 12-1. | YX21C01154P2 | [1] | GUARD | KOB |
| 12-2. | PH21C01136DG | [1] | RUBBER WEATHERSTRIP | KOBSTRIP, WEATHER |
