神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (11-021) - CYLINDER ASSY (BOOM) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
674 次

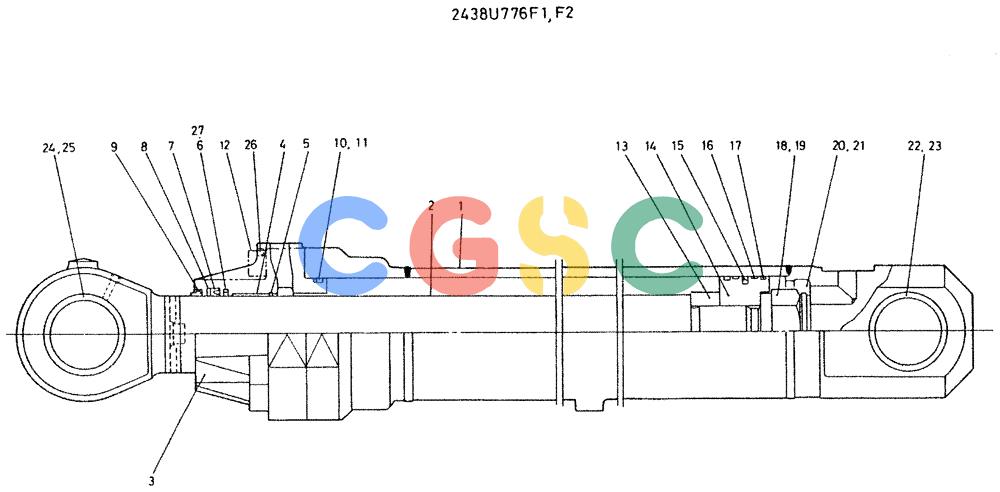

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U776F1 | [1] | BUCKET CYLINDER | KOBASSY Superseded by part number: 2438U776F2 |
| . . | 2438U776F2 | [1] | CYLINDER | KOBCONSISTS OF THE FOLLOWING PARTS |
| 1. | 2438U776S1 | [1] | LINER, ENGINE CYLIND | KOB |
| 2. | 2438U776S2 | [1] | PISTON ROD | KOBASSY |
| 3. | 2438U776S3 | [1] | CYLINDER | KOBHEAD |
| 4. | 2438U776S4 | [1] | BUSHING | KOB |
| 5. | 2438U776S5 | [1] | SNAP RING | KOB |
| 6. | 2438U776S6 | [1] | RING, BUFFER FOR F1 ONLY | RING, BUFFER FOR F1 ONLY |
| 7. | 2438U619S7 | [1] | RING | KOB |
| 8. | 2438U776S8 | [1] | BACK-UP RING | KOB |
| 9. | 2438U776S9 | [1] | RING | KOB |
| 10. | ZD12P14000 | [1] | O-RING | KOB |
| 11. | 2438U1324S11 | [1] | BACK-UP RING | KOB |
| 12. | 2438U1324S12 | [8] | CAPSCREW BOLT, SOCKET | CAPSCREW BOLT, SOCKET |
| 15. | 2438U776S13 | [1] | BUSHING, SPHERICAL CUSHION | BUSHING, SPHERICAL CUSHION |
| 14. | 2438U776S14 | [1] | PISTON | KOB |
| 15. | 2438U1324S15 | [1] | SEALING RING | KOBASSY |
| 16. | 2438U1324S16 | [2] | RING | KOB |
| 17. | 2438U1324S17 | [2] | RING | KOB |
| 18. | 2438U776S18 | [1] | NUT | KOB |
| 19. | 2438U776S19 | [1] | SHIM | KOB |
| 20. | 2438U675S26 | [1] | PIN | KOB |
| 21. | 2438U675S27 | [1] | SNAP RING | KOB |
| 22. | 2438U776S22 | [1] | BUSHING | KOB |
| 23. | 2438U1326S25 | [2] | RING, WIPER | |
| 24. | 2438U776S24 | [1] | BUSHING | KOB |
| 25. | 2438U776S25 | [2] | SEAL,100mm ID x 120mm OD x 4mm Thk | KOB Superseded by part number: 2445R138D9 |
| 26. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 27. | 2438U1086S6 | [1] | RING | KOBFOR F2 ONLY Superseded by part number: 2438U1018S6 |
| . . | 2438U776R10 | [1] | REPAIR KIT | KOB(F1) |
| . . | NSS | [1] | NOT SOLD SEPARAT | CONCONSISTS OF ITEM 4 TO 11 , 15 TO 17 |
| . . | 2438U776R20 | [1] | REPAIR KIT (F1 & F2) | |
| . . | 2438U776R30 | [1] | REPAIR KIT(F1 & F2) | |
| . . | 2436U776R40 | [1] | REPAIR KIT (F2) | REPAIR KIT (F2) |
| . . | 2436U776R50 | [1] | REPAIR KIT (F2) | REPAIR KIT (F2) |
| . . | 2438U776R100 | [1] | REPAIR KIT | KOBREPAIR KIT(F1) |
| . . | 2438U1324R110 | [1] | REPAIR KIT | KOBREPAIR KIT(F1 & F2) |
| . . | 2438U776R200 | [1] | REPAIR KIT | KOBREPAIR KIT(F2) Superseded by part number: 2438U776R200P |
