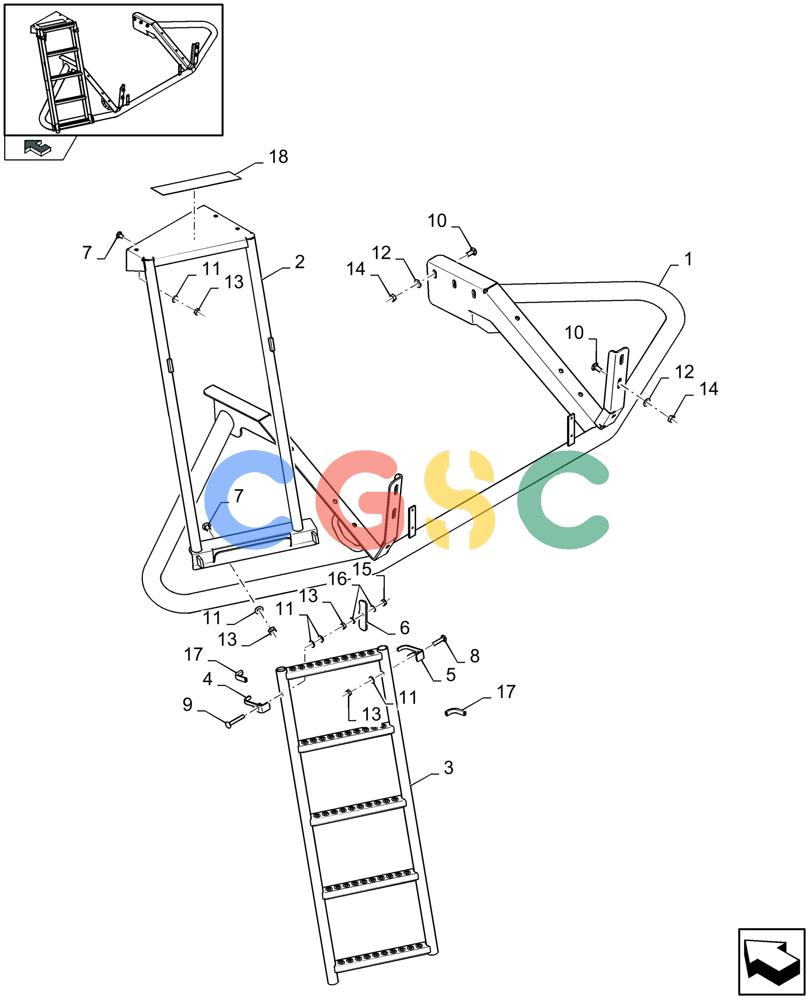

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (08.13[01]) - LADDER AND BUMPER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
179 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84819336
|
[1] |
BRACKET
|
ZED
|
| 1. |
84819331
|
[1] |
BRACKET
|
ZED
|
| 2. |
84819311
|
[1] |
SUPPORT
|
ZED
|
| 2. |
84819760
|
[1] |
LADDER
|
ZED
|
| 3. |
84819316
|
[1] |
LADDER
|
ZED
|
| 4. |
84819319
|
[1] |
BRACKET
|
ZED
|
| 5. |
84819321
|
[1] |
BRACKET
|
ZED
|
| 6. |
84800139
|
[1] |
COVER PLATE
|
ZED
|
| 7. |
120041
|
[4] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 8. |
350459
|
[1] |
CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8
|
ZED
|
| 9. |
374894
|
[1] |
CARRIAGE BOLT,Sq Nk, M10 x 70mm, Cl 8.8
|
ZED
Superseded by part number: 811-10070
|
| 10. |
120044
|
[10] |
CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 11. |
140045
|
[1] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 12. |
140046
|
[10] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 13. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 14. |
9706685
|
[10] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 15. |
100037
|
[1] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 16. |
300368
|
[2] |
SPRING,10.199mm ID x 20mm OD x 1.1mm Thk
|
ZED
|
| 17. |
455168
|
[1] |
TUBE,8.00 mm ID x 370.00 mm
|
ZED
|
| 18. |
401502
|
[1] |
ANTI-SKID STRIP
|
ZED
L= 270 mm
|
