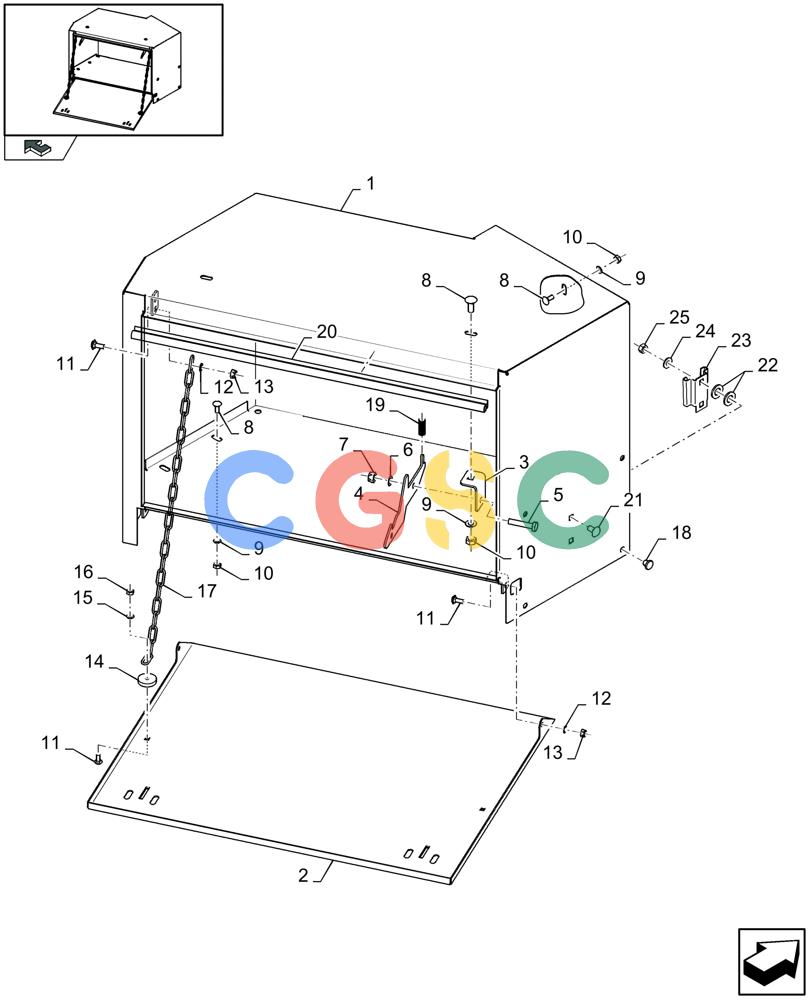

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (08.14[01]) - STORAGE BOX Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
514 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87755795
|
[1] |
TOOL BOX
|
ZED
|
| 2. |
87756455
|
[1] |
DOOR
|
ZED
|
| 3. |
87488626
|
[2] |
SUPPORT
|
ZED
|
| 4. |
84818088
|
[2] |
LOCK
|
ZED
|
| 5. |
120104
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 6. |
378243
|
[2] |
WASHER,8.4mm ID x 21mm OD x 1.6mm Thk
|
NH
Superseded by part number: 63707, 63707, 86625263
|
| 7. |
86629542
|
[2] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 8. |
86507486
|
[8] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 9. |
322358
|
[8] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 10. |
9706690
|
[8] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 11. |
86512439
|
[6] |
CARRIAGE BOLT,M6 x 16mm, Cl 8.8
|
NH
|
| 12. |
140015
|
[4] |
WASHER,6.4mm ID x 14mm OD x 1.6mm Thk
|
NH
Superseded by part number: 9820463
|
| 13. |
353308
|
[4] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 14. |
87033737
|
[2] |
WASHER,9mm ID x 28mm OD x 3mm Thk
|
BRR
|
| 15. |
322357
|
[2] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 16. |
9706755
|
[2] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 17. |
84817998
|
[2] |
CHAIN,504mm L
|
ZED
|
| 18. |
331233
|
[1] |
PLUG
|
ZED
|
| 19. |
84005450
|
[2] |
COMPRESSION SPRING,Compression, 11.13mm OD x 38.1mm L
|
ZED
|
| 20. |
84607251
|
[1] |
RUBBER WEATHERSTRIP
|
ZED
(612 MM) Superseded by part number: 84818178
|
| 21. |
86619060
|
[2] |
CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
, Start Serial: D868
|
| 22. |
86511324
|
[4] |
WASHER,13mm ID x 24mm OD x 2.5mm Thk
|
NH
, Start Serial: D868 Superseded by part number: 87364
|
| 23. |
9837606
|
[1] |
CLIP
|
ZED
, Start Serial: D868 Superseded by part number: 847590
|
