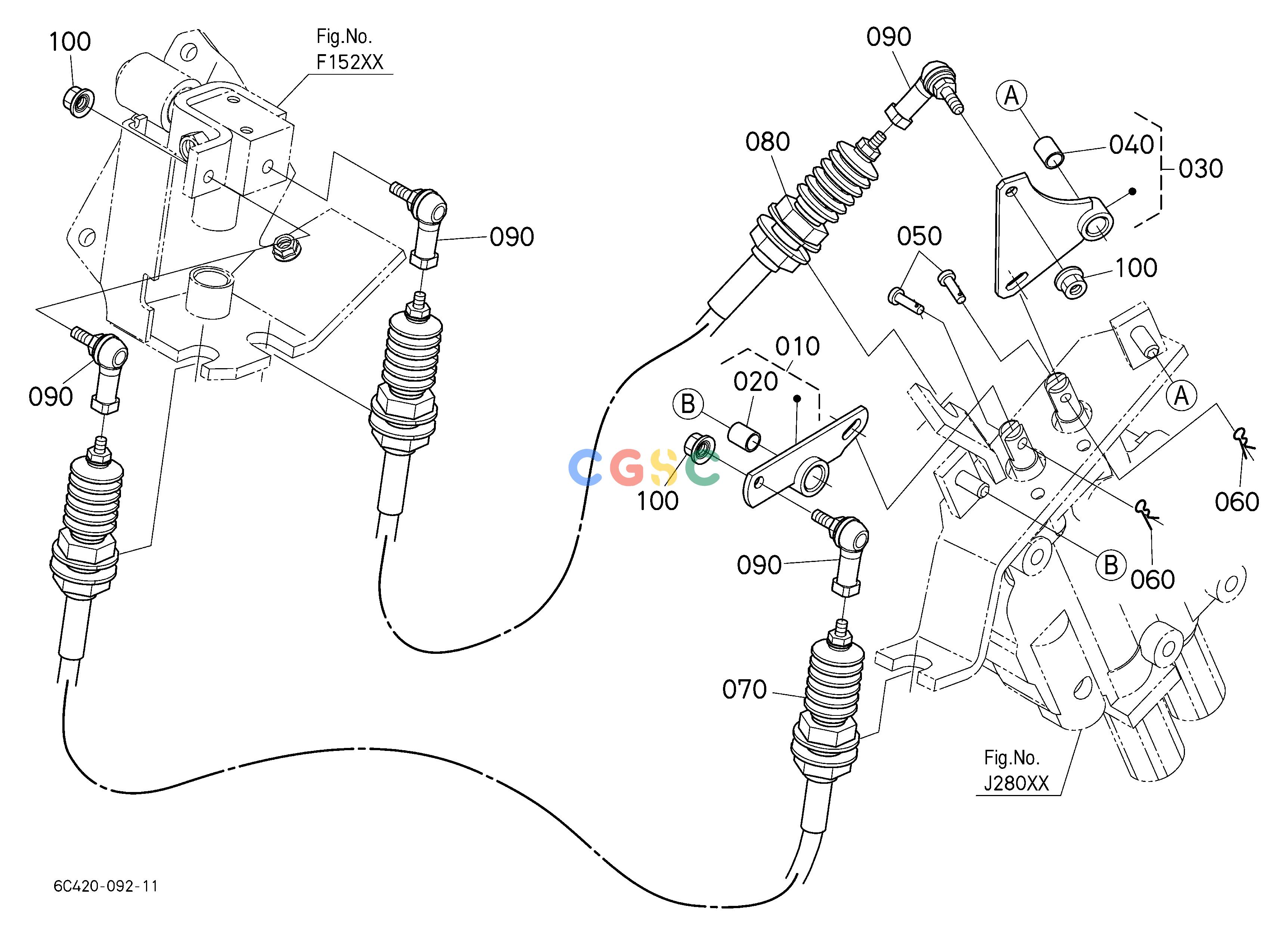

久保田零件查询J28400 LOADER VALVE LINK ## NOTE:ORDER BY REF.No.010 and Fig.No.J28000 REF.No.050 NEW PARTS. PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
988 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C43038230
|
[1] |
LINK,ASSY(SPOOL F)
|
0.0792(lbs); 0.036
|
| 010. |
6C43038232
|
[1] |
LINK,ASSY(SPOOL F)
|
0.0792(lbs); 0.036
|
| 020. |
0851100812
|
[1] |
BUSH
|
0.0220(lbs); 0.010
|
| 020. |
0851101012
|
[1] |
BUSH
|
0.0066(lbs); 0.003
|
| 030. |
6C43038250
|
[1] |
LINK,ASSY(SPOOL,R)
|
0.0220(lbs); 0.010
|
| 040. |
0851100812
|
[1] |
BUSH
|
0.0220(lbs); 0.010
|
| 040. |
0851101012
|
[1] |
BUSH
|
0.0066(lbs); 0.003
|
| 050. |
6802132790
|
[2] |
PIN
|
0.0088(lbs); 0.004
|
| 060. |
0552550500
|
[2] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 070. |
6C43038380
|
[1] |
CABLE,ASSY(FRONT)
|
0.8360(lbs); 0.380
|
| 080. |
6C43038400
|
[1] |
CABLE,ASSY(REAR)
|
0.8580(lbs); 0.390
|
| 090. |
3253041520
|
[4] |
LINK(BALL,R)
|
0.0528(lbs); 0.024
|
| 100. |
0202150060
|
[3] |
NUT
|
0.0110(lbs); 0.005
|
