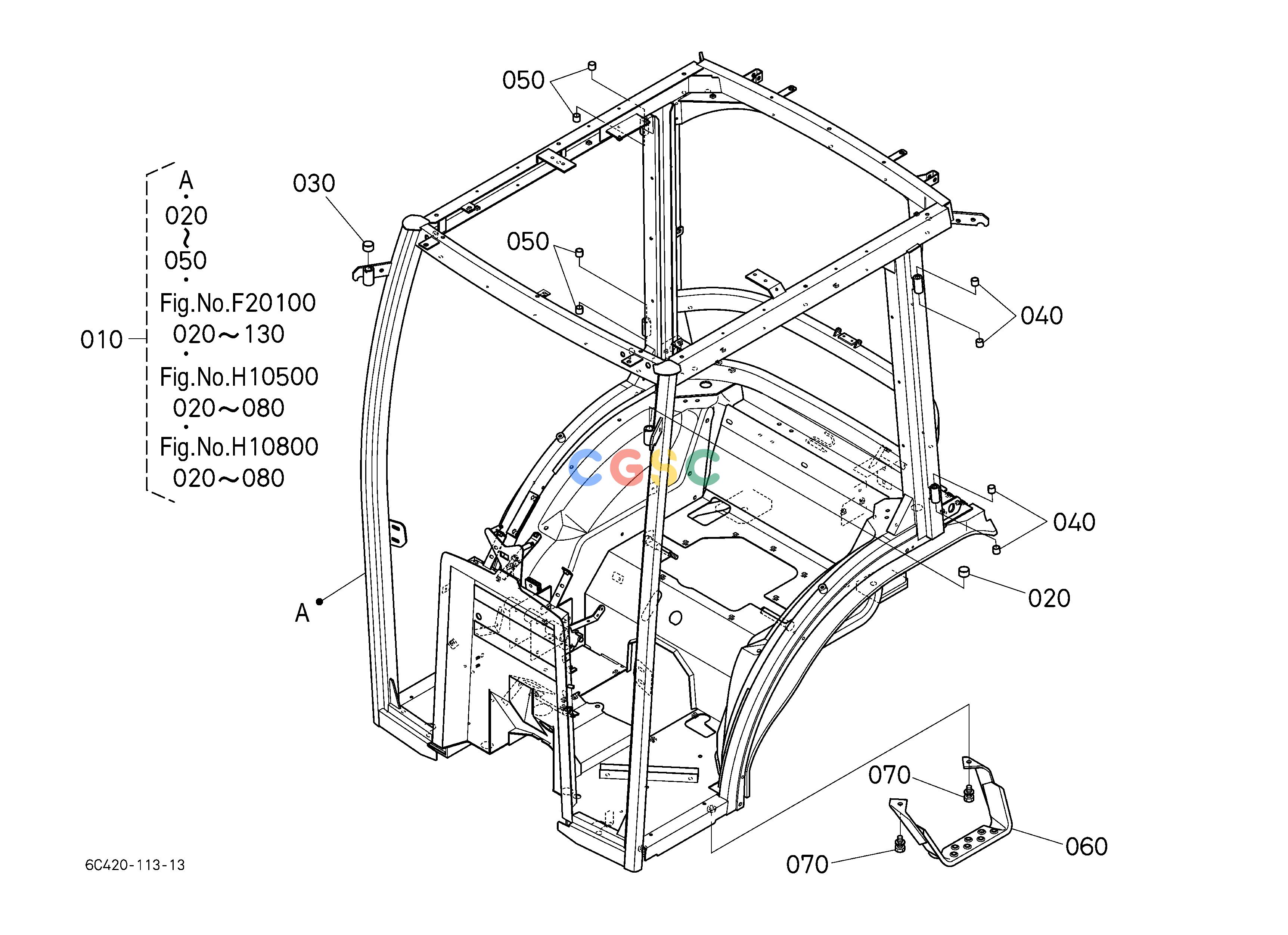

久保田零件查询N10100 CAB FRAME CABEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
849 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C43071105
|
[1] |
FRAME,COMP(CAB)
|
0.0000(lbs); 0.000
|
| 010. |
6C43071106
|
[1] |
FRAME,COMP(CAB)
|
0.0000(lbs); 0.000
|
| 010. |
6C43071108
|
[1] |
FRAME,COMP(CAB)
|
0.0000(lbs); 0.000
|
| 020. |
0851101610
|
[1] |
BUSH
|
0.0110(lbs); 0.005
|
| 030. |
0851101610
|
[1] |
BUSH
|
0.0110(lbs); 0.005
|
| 040. |
0851101010
|
[4] |
BUSH
|
0.0066(lbs); 0.003
|
| 050. |
0851101010
|
[4] |
BUSH
|
0.0066(lbs); 0.003
|
| 060. |
6C43071690
|
[1] |
STEP(AID)
|
2.8600(lbs); 1.300
|
| 070. |
0113351025
|
[2] |
BOLT,SEMS
|
0.0506(lbs); 0.023
|
