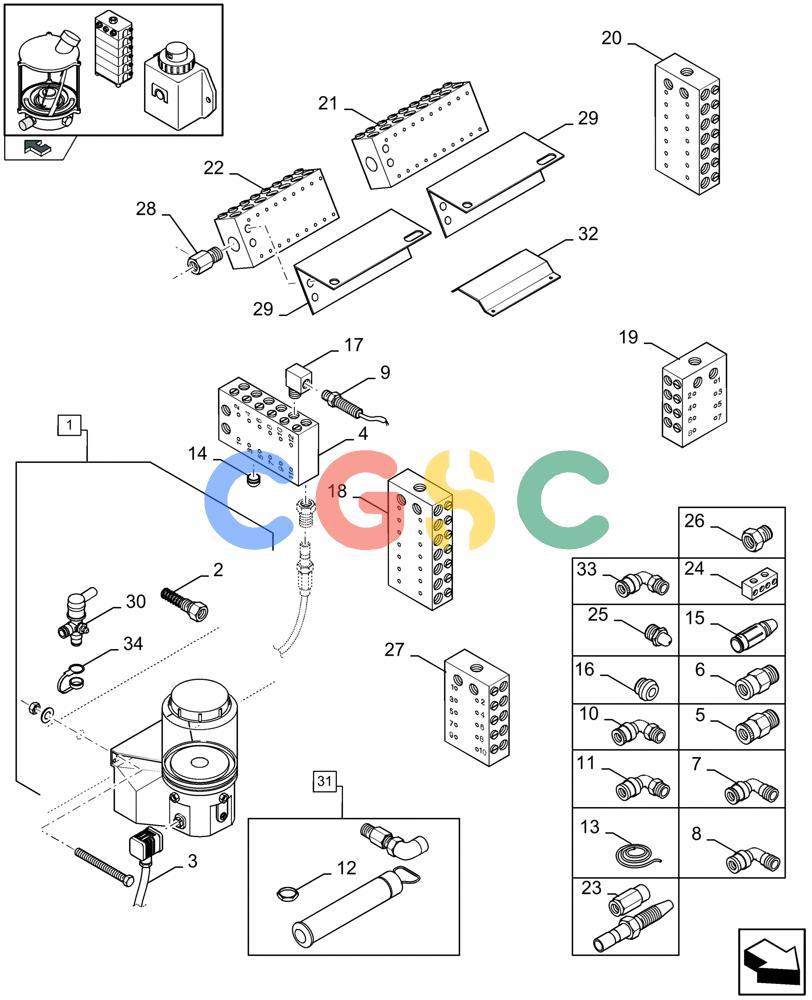

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (09.01[01]) - GREASING Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
115 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84807249
|
[1] |
LUBE PUMP
|
ZED
(2, 30), 4 liter, Serial Range: -C867
|
| 1. |
84312795
|
[1] |
PUMP
|
ZED
(34), Start Serial: D868
|
| 2. |
84807379
|
[1] |
SMALL PUMP
|
ZED
K6
|
| 3. |
84437931
|
[1] |
WIRE HARNESS
|
ZED
|
| 4. |
84807284
|
[1] |
MANIFOLD
|
ZED
|
| 5. |
84807375
|
[1] |
NIPPLE
|
ZED
1/8" - 6MM
|
| 5. |
84807246
|
[1] |
HYD CONNECTOR
|
ZED
M6 - 6MM
|
| 6. |
84807240
|
[1] |
NIPPLE
|
ZED
1/8" - 6MM
|
| 7. |
84807241
|
[1] |
NIPPLE
|
ZED
1/8" - 6MM
|
| 8. |
84807376
|
[1] |
NIPPLE
|
ZED
1/8" - 6MM
|
| 9. |
84078760
|
[1] |
SENSOR
|
ZED
B15 - GREASING SENSOR
|
| 10. |
84807247
|
[1] |
COUPLING
|
ZED
M6 - 6MM
|
| 10. |
84807242
|
[1] |
NIPPLE
|
ZED
1/8" - 6MM Superseded by part number: 84807377
|
| 10. |
84807245
|
[1] |
COUPLING
|
ZED
1/8" - 4MM
|
| 11. |
84807377
|
[1] |
COUPLING
|
ZED
1/8" - 6MM
|
| 12. |
84807303
|
[1] |
GREASE GUN
|
ZED
Superseded by part number: 84101701
|
| 13. |
84807289
|
[1] |
HOSE
|
ZED
8MM, L=10M
|
| 13. |
84807290
|
[1] |
HOSE,6mm ID x 5000mm L
|
ZED
6MM, L=5M
|
| 13. |
84807291
|
[1] |
HOSE
|
ZED
4MM, L=5M
|
| 14. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
PLUG
|
| 15. |
84807418
|
[1] |
CHECK VALVE
|
ZED
4MM
|
| 15. |
84807301
|
[1] |
END FITTING
|
ZED
6MM
|
| 15. |
84807292
|
[1] |
HYD CONNECTOR
|
ZED
6MM Superseded by part number: 2928867
|
| 16. |
84807296
|
[1] |
PLUG
|
ZED
1/8"
|
| 17. |
84807300
|
[1] |
WIRE CONNECTOR
|
ZED
|
| 18. |
84807283
|
[1] |
MANIFOLD
|
ZED
RH, 10/10
|
| 19. |
84807282
|
[1] |
MANIFOLD
|
ZED
8/8
|
| 20. |
84807285
|
[1] |
MANIFOLD
|
ZED
LH, 14/14
|
| 21. |
84807287
|
[1] |
MANIFOLD
|
ZED
LH, 22/22
|
| 22. |
84807286
|
[1] |
MANIFOLD
|
ZED
RH, 18/18
|
| 23. |
84807293
|
[1] |
SCREW ON COUPLING
|
ZED
|
| 24. |
84807288
|
[1] |
MANIFOLD
|
ZED
|
| 25. |
84807304
|
[1] |
LUBE NIPPLE
|
ZED
|
| 26. |
84807248
|
[1] |
HYD CONNECTOR
|
ZED
1/8" - 1/8"
|
| 28. |
84807295
|
[1] |
HYD CONNECTOR
|
ZED
|
| 29. |
87495474
|
[1] |
MOUNTING PLATE
|
ZED
|
| 30. |
84807305
|
[1] |
VALVE PRESSURE RELIE
|
ZED
350 bar
|
| 31. |
84101701
|
[1] |
QUICK FILL PUMP
|
ATT
(34)
|
| 32. |
84807347
|
[1] |
CHANNEL
|
ZED
|
| 33. |
84818125
|
[1] |
ELBOW UNION
|
ZED
|
| 34. |
47921551
|
[1] |
CAP
|
ZED
|
