神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (05-006) - MUFFLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
435 次

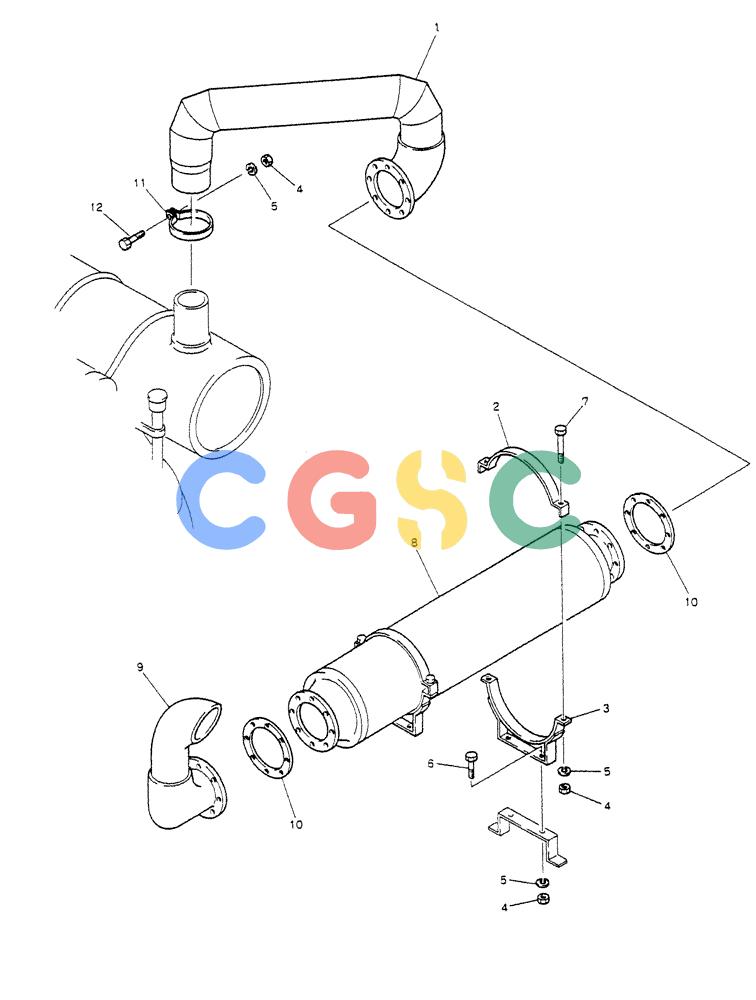

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5914F1 | [1] | MUFFLER ASSY | |
| 1. | 2420N380 | [1] | PIPE | KOBPIPE |
| 2. | 2416T11699 | [2] | SUPPORT | SUPPORT |
| 3. | 2416P7875 | [2] | SUPPORT | SUPPORT |
| 4. | ZN18C12010 | [9] | NUT | KOBM12x1.75mm |
| 5. | ZW26X12000 | [9] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 6. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 7. | ZS18C12055 | [1] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| 8. | 2427Z618F1 | [1] | MUFFLER No Longer Available | MUFFLER No Longer Available |
| 9. | 2420P1545 | [1] | PIPE | KOB |
| 10. | 2418T11213 | [2] | PACKING | KOB |
| 11. | 2432T4230 | [1] | CLAMP | KOB |
| 12. | ZS18C12040 | [1] | SCREW,Hex, M12 x 40mm | KOBM12x1.75x40mm |
