神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (05-007) - CLEANER ASSY, AIR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
879 次

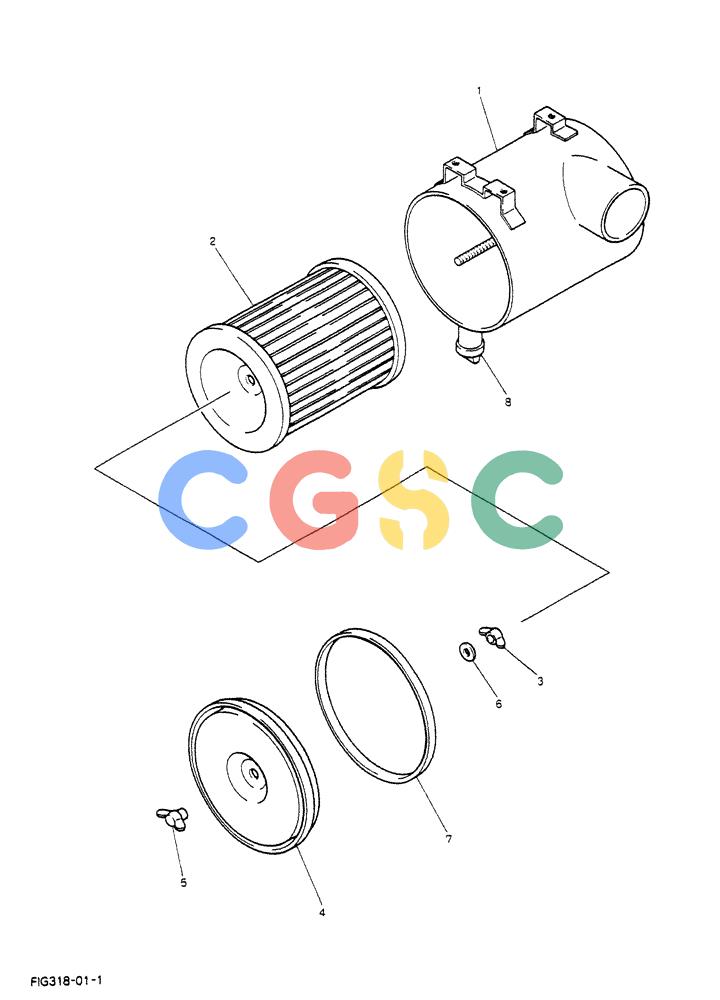

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2446U252F1 | [1] | AIR CLEANER | KOB |
| 1. | 2446U252S1 | [1] | BODY ASSY | |
| 2. | 2446U252S2 | [1] | AIR FILTER | KOB Superseded by part number: 84539219 |
| 3. | 2446U191S5 | [1] | NUT | KOBASSY |
| 4. | 2446U191S6 | [1] | COVER | KOBASSY |
| 5. | 2446U191S7 | [1] | NUT | KOBCAP ASSY |
| 6. | 2446U191S8 | [1] | CLIP | KOB |
| 7. | 2446U191S9 | [1] | GASKET | KOB |
| 8. | 2446U191S10 | [1] | VALVE | KOB Superseded by part number: 2446U162S11 |
