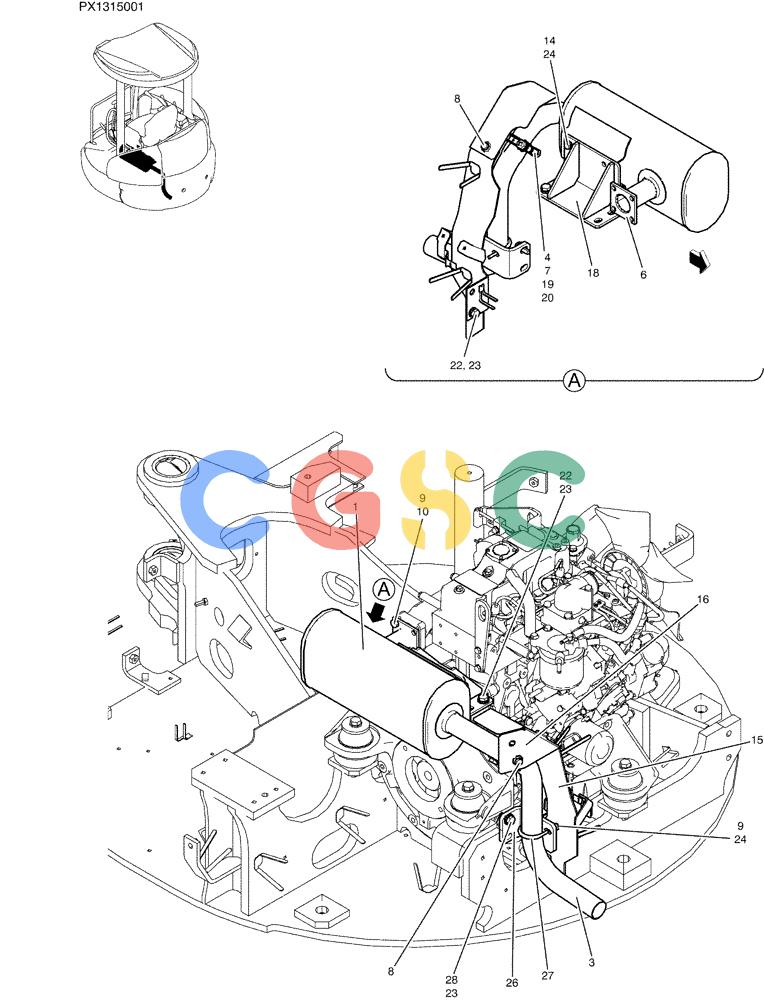

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-010) - MUFFLER ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
549 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PX12P00011F1 | [1] | MUFFLER ASSY | |
| 1. | PW12P00014P1 | [1] | MUFFLER | KOB |
| 3. | PX12P01040P1 | [1] | TUBE | KOBEXHAUST |
| 4. | PH12P01044P1 | [1] | CLAMP | KOB |
| 6. | PW12P01043P1 | [1] | GASKET | KOB Superseded by part number: VV11951513200 |
| 7. | ZS18C10060 | [1] | SCREW,Hex, M10 x 60mm | KOBCAP |
| 8. | PA21C01133P1 | [3] | BOLT | KOB |
| 9. | ZN18C08007 | [8] | NUT | KOBM08x1.25mm |
| 10. | ZW16X08000 | [4] | WASHER | KOB |
| 14. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOB |
| 16. | PW12P01065P1 | [1] | COVER | KOB |
| 18. | PW12P01054P1 | [1] | BRACKET | KOB |
| 19. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| 20. | ZW26X10000 | [1] | LOCK WASHER | KOB |
| 22. | ZS18C10020 | [6] | SCREW,Hex, M10 x 20mm | KOB |
| 23. | ZW16H10000 | [9] | WASHER | KOB |
| 24. | ZW16H08000 | [6] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 26. | PW12P01068P1 | [1] | PLATE | KOB |
| 27. | 2420T2948D10 | [1] | U-BOLT | KOBM08x1.25x ID 42 x 84mm Long |
| 28. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOB |
