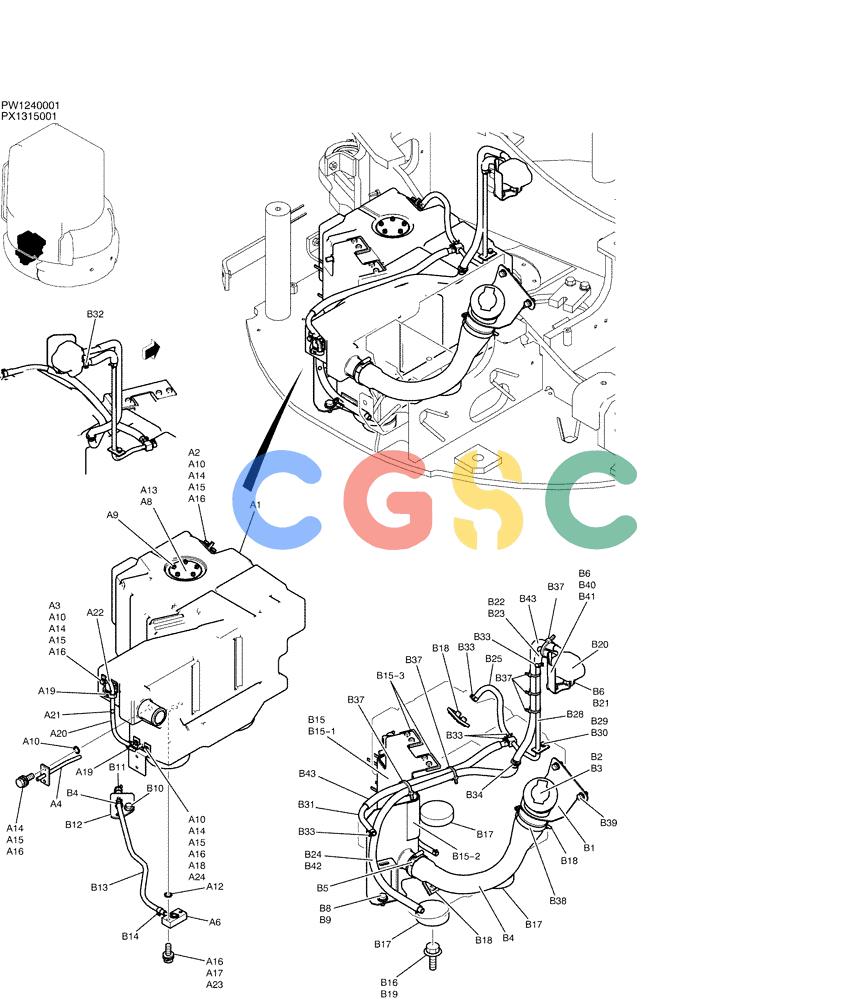

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-013) - TANK ASSY, FUEL (CAB) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
387 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW20P00022F1 | [1] | TANK | KOB |
| A1. | PW20P00030P1 | [1] | TANK | KOBFUEL Superseded by part number: PW20P00030P3 |
| A2. | PW20P01325P1 | [1] | FLANGE | KOB |
| A3. | PW20P01288P1 | [1] | FLANGE | KOB |
| A4. | PW20P01272P1 | [1] | FLANGE | KOB |
| A6. | PW20P01302P1 | [1] | FLANGE | KOB |
| A8. | PW20P01208P1 | [1] | PACKING | KOB |
| A9. | ZM61C05012 | [5] | BOLT | KOB |
| A10. | 2445Z1453D2 | [4] | O-RING | KOB |
| A12. | 2445Z1453D9 | [1] | O-RING | KOB |
| A13. | PX52S00006F1 | [1] | SENSOR | KOB |
| A14. | ZS18C06016 | [8] | SCREW,Hex, M6 x 16mm | KOBCAP |
| A15. | ZW16X06000 | [8] | WASHER | KOB Superseded by part number: 86588450 |
| A16. | ZW26X06000 | [10] | LOCK WASHER | KOB |
| A17. | ZS18C06030 | [2] | SCREW,Hex, M6 x 30mm | KOBCAP |
| A18. | PW20P01364P1 | [1] | FLANGE | KOB |
| A19. | LE20P01012P1 | [2] | CLAMP | KOB |
| A20. | PW20P01366P1 | [1] | HOSE | KOBHOSE Superseded by part number: HX11Y06030DY |
| A21. | LE20P01014P1 | [1] | BALL | KOB |
| A22. | PW20P01359P1 | [1] | BRACKET | KOB |
| A23. | ZW16H06000 | [2] | WASHER | KOB |
| A24. | PW20P01355P1 | [1] | PLATE | KOB Superseded by part number: PW20P01355P2 |
| . . | PW20P00033F1 | [1] | TANK INSTAL,FUEL, (FOR CAB) | |
| B1. | PW20P01357P2 | [1] | NECK FILLER | KOB |
| B2. | PW20P01282P1 | [1] | CAP | KOB |
| B3. | PW50V00009P1 | [1] | STRAINER ASSY. | KOB |
| B4. | PW20P01317P1 | [1] | HOSE | KOB |
| B5. | ZC16X05000 | [1] | CLIP | KOB |
| B6. | ZW16X08000 | [2] | WASHER | KOB |
| B8. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOB |
| B9. | ZW16H10000 | [2] | WASHER | KOB |
| B10. | ZM22C10020 | [1] | BOLT | KOB |
| B11. | YN05P00010S007 | [1] | COCK, DRAIN | KOB |
| B12. | PM05P01046P1 | [1] | BOSS | KOB |
| B13. | PA21P01005DW | [1] | HOSE,7mm ID x 500mm L | KOB |
| B14. | PH05P01088D6 | [2] | CLIP | KOB |
| B15. | PW20P01222F1 | [1] | BRACKET | KOBASSY |
| B15-1. | PW20P01312P1 | [1] | BRACKET | KOB |
| B15-2. | PW20P01227P1 | [1] | RUBBER | KOB |
| B15-3. | PW20P01207P1 | [2] | RUBBER | KOB |
| B16. | ZS18C10016 | [3] | SCREW,Hex, M10 x 16mm | KOBM10x1.50x16mm |
| B17. | PW20P01115P1 | [3] | RUBBER | KOB |
| B19. | ZW16K10000 | [3] | WASHER | KOB |
| B20. | PW20P00039P1 | [1] | TANK | KOBFUEL |
| B21. | ZS18C08020 | [1] | SCREW,Hex, M8 x 20mm | KOB |
| B22. | PW21P01003D4 | [1] | TUBE | KOB |
| B23. | PW20P01348P1 | [1] | HOSE | KOB Superseded by part number: PW20P01348P2 |
| B24. | PW20P01349P1 | [1] | HOSE | KOB Superseded by part number: PW20P01349P2 |
| B25. | PW20P01285D3 | [1] | HOSE | KOB |
| B28. | PW20P01353P1 | [1] | TUBE | KOB |
| B29. | ZS18C06014 | [1] | SCREW,Hex, M6 x 14mm | KOBCAP |
| B31. | PW20P01285D2 | [1] | HOSE | KOB |
| B32. | PH05P01088D7 | [1] | CLIP,13.6mm - 17.5mm | KOBClamp, Hose -- Min 13.6 x Max 17.5mm |
| B33. | PH05P01088D4 | [5] | CLIP | KOB |
| B34. | 2420R372D13 | [1] | GROMMET | KOB |
| B37. | PY01P01043D3 | [5] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| B38. | ZC16X06700 | [1] | CLIP,58mm - 76mm | KOB |
| B39. | ZM22C08025 | [2] | BOLT | KOB |
| B40. | PW20P01318P1 | [1] | BRACKET | KOB |
| B41. | ZS18C08014 | [1] | SCREW,Hex, M8 x 14mm | KOBCAP |
| B42. | PW21P01003D7 | [1] | FLEXIBLE HOSE | KOB |
| B43. | PU13E01002D7 | [2] | TUBE | KOB |
