纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-014) - TANK ASSY, HYD (NIBBLER & BREAKER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
520 次

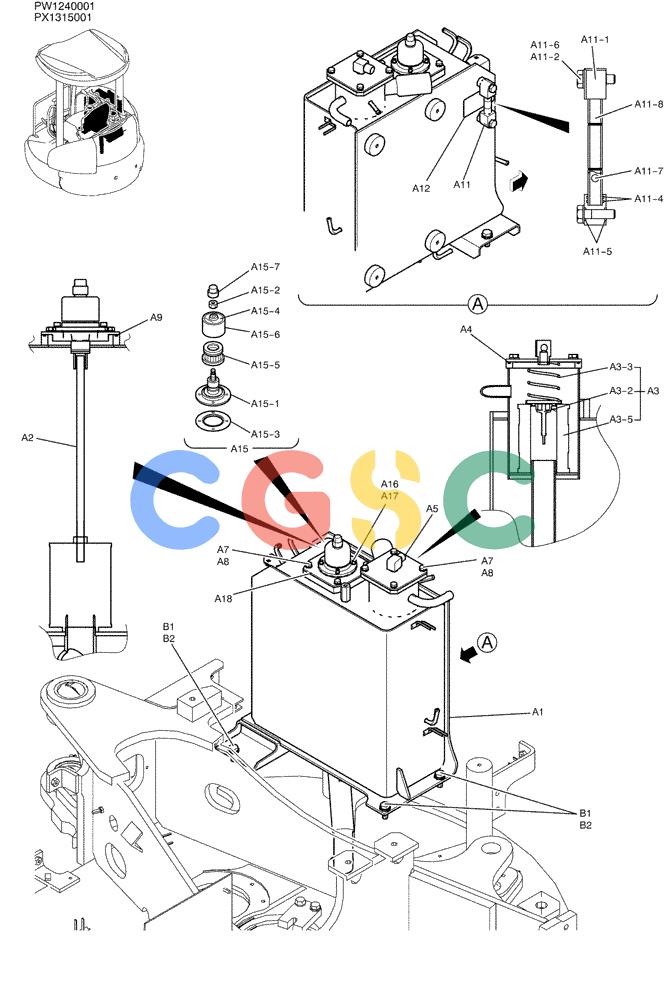

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW33H00045F1 | [1] | TANK | KOBASSY, HYD (NIBBLER & BREAKER) |
| A1. | PW33H00043P2 | [1] | TANK | KOB |
| A2. | PW50V00011F1 | [1] | STRAINER ASSY. | KOBSUCTION |
| A3. | PW50V00012F2 | [1] | HYDRAULIC OIL FILTER | KOBFILTER ASSY Superseded by part number: PW52V01001F2 |
| A3-2. | PW21V00004P1 | [1] | VALVE | KOBCHECK |
| A3-3. | YR52V01001S004 | [1] | SPRING | KOB |
| A3-5. | YR52V01003P1 | [1] | FILTER | KOBELEMENT Superseded by part number: YR52V01003P2 |
| A4. | ZD11G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOB |
| A5. | PM33H01083P2 | [1] | COVER | KOBCOVER Superseded by part number: PM33H01122P1 |
| A7. | ZW26X08000 | [8] | LOCK WASHER | KOB Superseded by part number: 83990583 |
| A8. | ZS18C08016 | [8] | SCREW,Hex, M8 x 16mm | KOB |
| A9. | ZD11G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOB |
| A11. | YN58S00009F3 | [1] | GAUGE ASSY. | KOBLEVEL |
| A11-1. | NSS | [2] | NOT SERVICED SEPARATELY | CONBLOCK |
| A12. | YF33H01020P1 | [1] | LABEL | KOBLABEL |
| A15. | YN57V00002F4 | [1] | BREATHER ASSY. | KOB Superseded by part number: YN57V00010F1 |
| A15-1. | 2446U260S1 | [1] | BODY | KOB |
| A15-2. | 2446U260S5 | [1] | NUT | KOB |
| A15-3. | 2446U260S8 | [1] | PACKING | KOB |
| A15-4. | YN57V00002S007 | [1] | IDENTITY PLATE | KOB |
| A15-5. | YN57V00002S010 | [1] | ELEMENT | KOB Superseded by part number: YN57V00010S002 |
| A15-6. | YN57V00002S011 | [1] | COVER | KOB |
| A15-7. | YN57V00002S012 | [1] | CAP | KOB |
| A16. | ZS28C06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOBCAP |
| A17. | ZW26K06000 | [4] | LOCK WASHER | KOB |
| A18. | PW33H01137P1 | [1] | COVER | KOB |
| . . | PW50V00012R200 | [1] | HYDRAULIC OIL FILTER | KOBELEMENT KIT (CONSISTS OF REF. A3-5, A4 ) Superseded by part number: PW52V01001R200 |
| . . | PW33H00039F1 | [1] | TANK INSTAL, HYDR | |
| B1. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBCAP |
| B2. | ZW16H12000 | [4] | WASHER | KOB |
