神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (05-018) - HEATER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
873 次

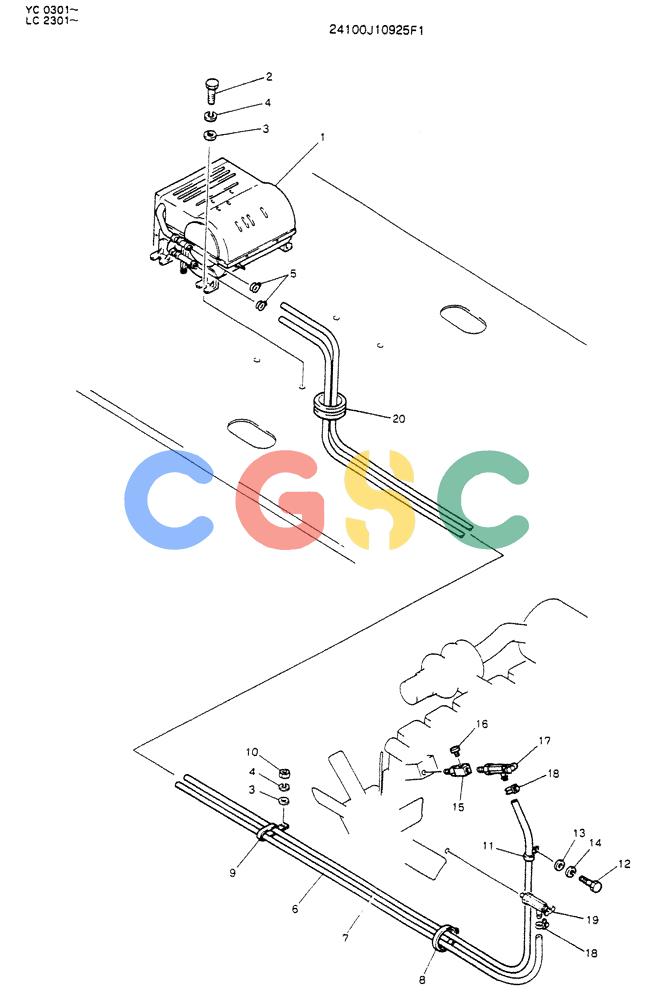

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10925F1 | [1] | HEATER ASSY | |
| 1. | 2479U293D3 | [1] | HEAT EXCHANGER | KOB Superseded by part number: 2479U293D4 |
| 2. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 3. | ZW16X10000 | [8] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 4. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 5. | ZC15X02300 | [2] | CLIP | KOB |
| 6. | R18T0026D13 | [1] | HOSE | KOBID 12 x OD 22 x 3800mm |
| 7. | R18T0026D26 | [1] | HOSE | HOSE |
| 8. | 2432Z290 | [14] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 9. | ZC47X22014 | [1] | CLIP | KOBCLIP Superseded by part number: ZC48X22014 |
| 10. | ZN18C10008 | [4] | NUT | KOBM10x1.50mm |
| 11. | ZC45X22011 | [1] | CLIP | KOBClamp -- Ø22mm Single Cable Superseded by part number: ZC46X22011 |
| 12. | ZS18C08014 | [1] | SCREW,Hex, M8 x 14mm | KOBM08x1.25x14mm |
| 13. | ZW16X08000 | [1] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 14. | ZW26X08000 | [1] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 15. | 2444T2651 | [1] | HYD CONNECTOR | KOB |
| 16. | 2479Z1804 | [1] | WIRE HARNESS | KOB |
| 17. | R44T0201 | [1] | HYD CONNECTOR | KOB Superseded by part number: 113700-1381 |
| 18. | R16T0238D1 | [2] | CLIP | KOB |
| 19. | R44T0180 | [1] | COCK | KOB |
| 20. | 2420Z699 | [1] | GROMMET | KOB |
