纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-019) - VALVE INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
692 次

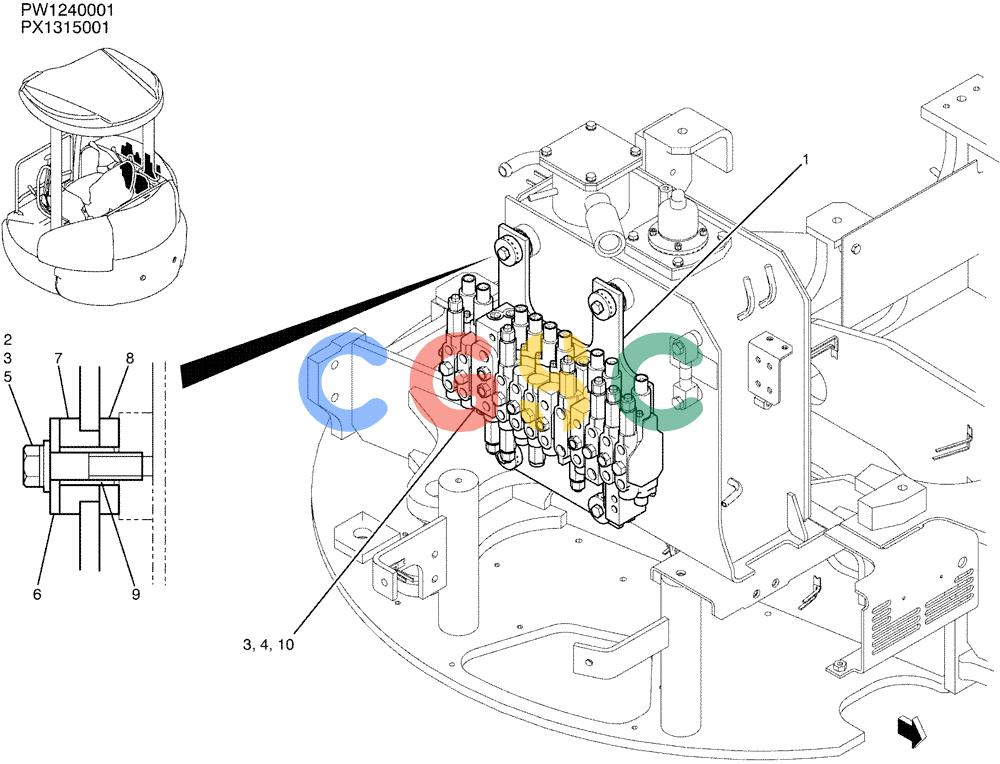

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW64H00054F1 | [1] | VALVE INSTAL | |
| 1. | PW64H01092P1 | [1] | BRACKET | KOBBRACKET |
| 2. | ZS18C10050 | [4] | SCREW,Hex, M10 x 50mm | KOBCAP |
| 3. | ZW16H10000 | [7] | WASHER | KOB |
| 4. | ZS18C10025 | [3] | SCREW,Hex, M10 x 25mm | KOB |
| 5. | ZW26X10000 | [4] | LOCK WASHER | KOB |
| 6. | 2418T21137 | [4] | WASHER | KOB |
| 7. | PW64H01062P1 | [4] | RUBBER | KOB |
| 8. | 2416Z649 | [4] | CUSHION | KOBRUBBER |
| 9. | 2418T17903D9 | [4] | SPACER | KOB |
| 10. | PX30V00059F1 | [1] | VALVE | KOBASSY, CONTROL Superseded by part number: PX30V00041F2 |
