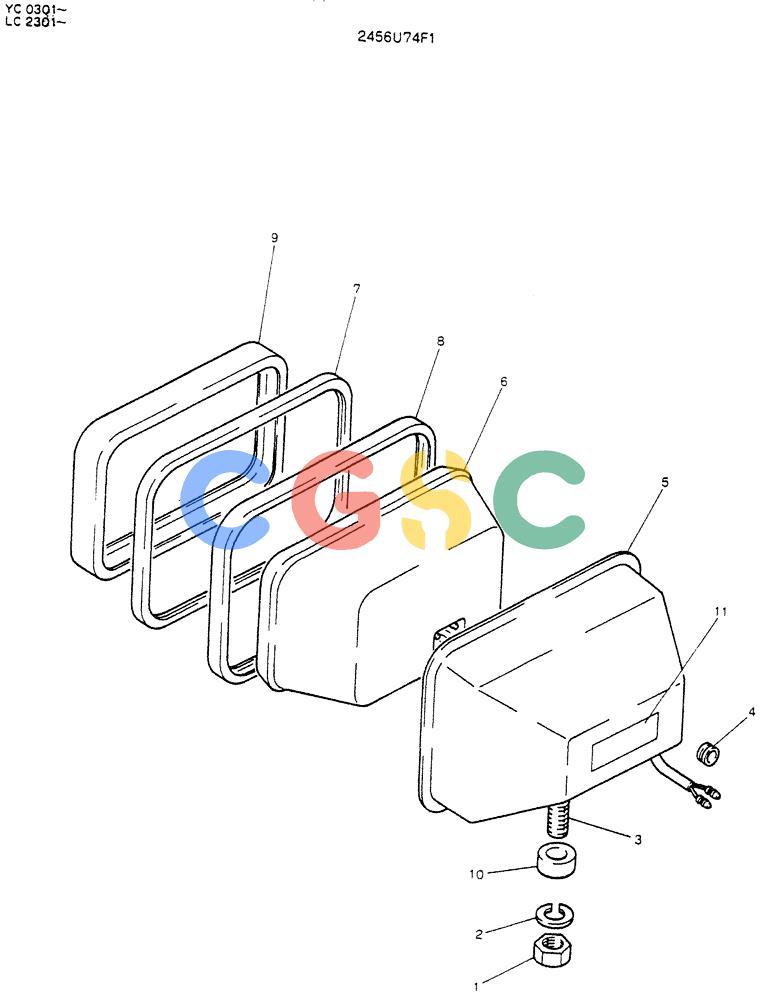

神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (05-028) - LIGHT ASSY, HEAD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
477 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2456U74F1 | [1] | LIGHT ASSY. | KOBLIGHT ASSY,HEAD Superseded by part number: 2456U74F3 |
| 1. | 2456R229S8 | [1] | NUT | KOBNUT |
| 2. | ZW26X14000 | [1] | WASHER | KOBID 14 x OD 24.5 x Th 3.5mm |
| 3. | 2456U74S3 | [1] | SCREW | KOB |
| 4. | 2456U74S4 | [1] | GROMMET | KOB |
| 5. | 2456U74S5 | [1] | NOT SERVICED | KOB |
| 6. | 2456R229S11 | [1] | SEALED BEAM UNIT | KOB Superseded by part number: 77259638, 2456R229S11M |
| 7. | 2456U74S7 | [1] | CUSHION | KOB |
| 8. | 2456U74S8 | [1] | RING | KOBRING Superseded by part number: 2456U74S13 |
| 9. | 2456U74S9 | [1] | RING | KOB Superseded by part number: 2456U74S14 |
| 10. | 2456U74S10 | [1] | SHEET | KOB |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONNAME-PLATE |
