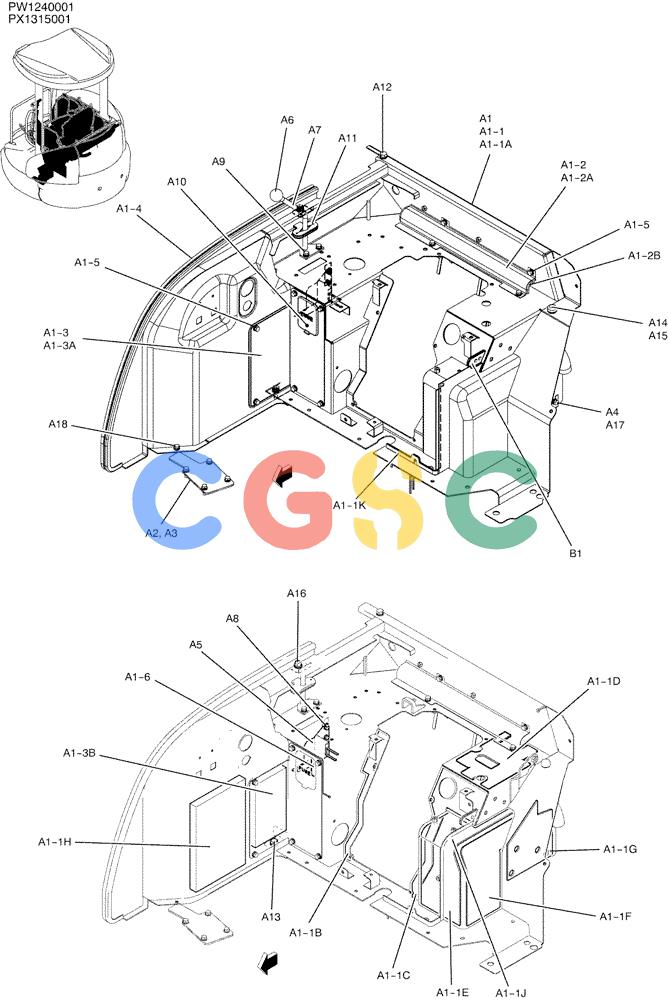

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-028) - STAND ASSY, CONTROL (CANOPY) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
985 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW03M00105F1 | [1] | CONTROLS, OPERATORS | |
| A1. | PW10M00013F1 | [1] | STAND ASSY, CONTROL | |
| A1-1. | PW10M01269F1 | [1] | STAND ASSY | |
| A1-1A. | PW10M01268P1 | [1] | STAND | KOBSTAND |
| A1-1B. | PW10M01202P1 | [1] | FOAM INSULATION | KOB |
| A1-1C. | PW10M01103P1 | [1] | FOAM INSULATION | KOB |
| A1-1D. | PW10M01224P1 | [1] | FOAM INSULATION | KOBINSULATION |
| A1-1E. | PW10M01180P1 | [1] | FOAM INSULATION | KOB |
| A1-1F. | PH10M01045P1 | [1] | FOAM INSULATION | KOB |
| A1-1G. | PW10M01207P1 | [1] | FOAM INSULATION | KOB |
| A1-1H. | PW10M01203P1 | [1] | FOAM INSULATION | KOB |
| A1-1J. | PW10M01181P1 | [1] | FOAM INSULATION | KOB |
| A1-1K. | PW10M01279P1 | [1] | RUBBER | KOBRUBBER |
| A1-2. | PH03M01468F1 | [1] | COVER ASSY | KOBCOVER ASSY |
| A1-2A. | PH03M01467P1 | [1] | COVER | KOBCOVER |
| A1-2B. | PH03M01472P1 | [1] | RUBBER | KOB Superseded by part number: 72281763 |
| A1-3. | PW03M01586F1 | [1] | COVER ASSY | KOBCOVER ASSY |
| A1-3A. | PH03M01432P2 | [1] | COVER | KOBCOVER |
| A1-3B. | PW10M01177P1 | [1] | FOAM INSULATION | KOB |
| A1-4. | PM21C01573D1 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| A1-5. | PA03M01093D2 | [10] | BOLT | KOB Superseded by part number: ZM27C08020 |
| A1-6. | PM22C01020DR | [1] | TRIM PANEL | KOB |
| A2. | PM55M01023P1 | [1] | PLATE | KOBPLATE |
| A3. | ZM22C08025 | [4] | BOLT | KOB |
| A4. | PW03M01652P1 | [1] | COVER | KOBCOVER |
| A5. | PH03M01435P1 | [1] | COVER | KOB |
| A6. | PV03M01043P1 | [1] | HANDLE GRIP | KOB |
| A7. | PW03M01623P1 | [1] | LEVER | KOB |
| A8. | ZM61C06012 | [2] | BOLT | KOB |
| A9. | ZM22C08016 | [2] | BOLT | KOB |
| A10. | PW03M01543P1 | [1] | GROMMET | KOB |
| A11. | PW03M01546P2 | [1] | GROMMET | KOB Superseded by part number: PW03M01972P1 |
| A12. | PM06C01045D3 | [1] | BOLT | KOB |
| A13. | ZM22C10030 | [1] | BOLT | KOBM10x1.50x30mm (Incls. Washer & Lockwasher) |
| A14. | ZM22C12030 | [1] | BOLT | KOB |
| A15. | PW03M01557P1 | [1] | CAP | KOB |
| A16. | ZM22C10025 | [1] | BOLT | KOB |
| A18. | ZM22C08020 | [1] | BOLT | KOB |
| . . | PW03M01715F1 | [1] | GROMMET | KOBGROMMET ASSY Superseded by part number: PW03M01711P2 |
| B1. | PW03M01711P1 | [1] | GROMMET | KOBGROMMET Superseded by part number: PW03M01711P2 |
