纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-027) - CONTROL BOX ASSY (LEFT HAND) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
778 次

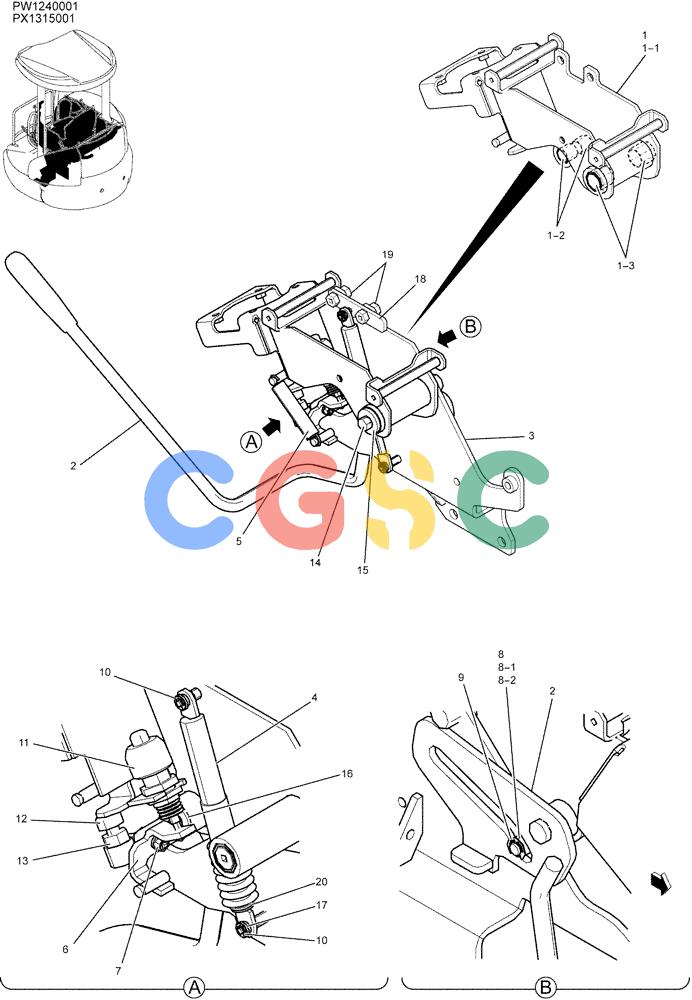

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW03M00093F1 | [1] | CONTROL BOX ASSY | |
| 1. | PW03M01500F1 | [1] | CONTROL | KOBBOX ASSY |
| 1-1. | PW03M01501P3 | [1] | CONTROL | KOBBOX Superseded by part number: PW03M01500F1 |
| 1-2. | 2405R312D1515 | [2] | BUSHING,15mm ID x 17mm OD x 15mm L | KOB |
| 1-3. | 2405R312D2020 | [2] | BUSHING | KOB Superseded by part number: QP103701-2610 |
| 2. | PW03M01499P3 | [1] | LOCK | KOB |
| 3. | PW03M01858P1 | [1] | SUPPORT | KOBSUPPORT |
| 4. | PH03M01513F1 | [1] | GAS STRUT | KOBSPRING |
| 5. | PW03M01428P1 | [1] | SPRING | KOB |
| 6. | PW03M01415P1 | [1] | SUPPORT | KOB |
| 7. | ZM61C06020 | [2] | BOLT | KOB |
| 8. | PW03M01392F1 | [1] | ROLLER ASSY.,15mm OD x 15mm L | KOB |
| 8-1. | PW03M01391P1 | [1] | ROLLER | KOB Superseded by part number: PW03M01392F1 |
| 8-2. | 2405R312D1015 | [1] | BUSHING | KOB |
| 9. | ZR36X00900 | [1] | RING | KOBRETAINING Superseded by part number: 86979020 |
| 10. | ZR36X00500 | [2] | RING | KOBRETAINING Superseded by part number: 800-436 |
| 11. | PA50S00001P1 | [1] | LIMIT SWITCH | KOB |
| 12. | PY06C01040P1 | [1] | STOP | KOB |
| 13. | ZN18F10008 | [1] | NUT | KOB |
| 14. | ZM12C08016 | [1] | BOLT | KOB |
| 15. | PM02C01425P1 | [1] | WASHER | KOB |
| 16. | ZW16P14000 | [1] | WASHER | KOB |
| 18. | PW03M01815P1 | [1] | LEVER | KOBLEVER |
| 19. | ZM22C08025 | [2] | BOLT | KOB |
| 20. | PY01P01043D2 | [1] | CABLE TIE,4.60mm W x 202mm L | KOBWire Ties -- 160mm Long Superseded by part number: YT50C01100P1 |
