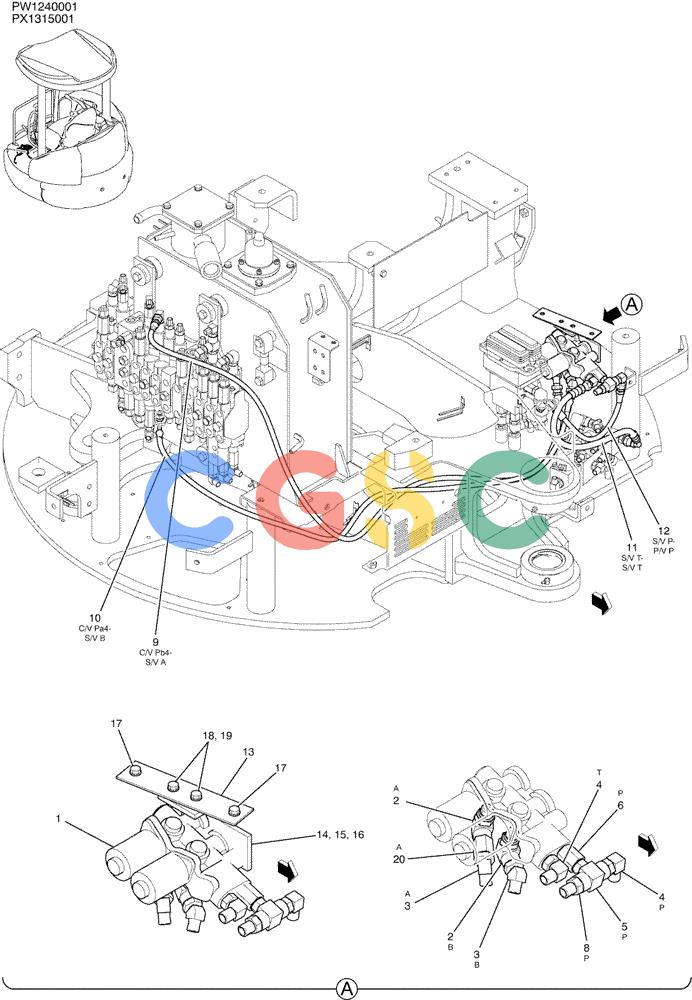

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-035) - CONTROL LINES, VALVE (NIBBLER & BREAKER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
178 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | PY35V00005F2 | [1] | VALVE | KOBVALVE ASSY, SOLENOID (Used for Nibbler/Breaker Open/Close) |
| 2. | PV64H01042P1 | [2] | ELBOW | KOB |
| 3. | HH45S04004G2 | [2] | ELBOW | KOB |
| 4. | HH35S04004G1 | [2] | 90 ELBOW | KOB |
| 5. | 2444Z4239 | [1] | TEE | KOB |
| 6. | HH25R04004G5 | [1] | HYD CONNECTOR | KOB |
| 8. | HH25S04004G1 | [1] | HYD CONNECTOR | KOB Superseded by part number: 72283606 |
| 9. | HX23L03175DX | [1] | HOSE | KOB |
| 10. | HX33L03145DX | [1] | HOSE,4.8mm ID x 1450mm L | KOB |
| 11. | HX32L04048DX | [1] | HOSE | KOB |
| 12. | HX34L04032DX | [1] | HOSE | KOB |
| 13. | PW64H01089P1 | [1] | SUPPORT | KOB |
| 14. | PW64H01093P1 | [1] | BRACKET | KOB |
| 15. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOB |
| 16. | ZW16H10000 | [2] | WASHER | KOB |
| 17. | ZM22C08020 | [2] | BOLT | KOB |
| 18. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 19. | ZS18C08025 | [2] | SCREW,Hex, M8 x 25mm | KOBCAP |
| 20. | 2444Z2525 | [1] | HYD CONNECTOR | KOB |
