纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-038) - PLATE GROUP, FLOOR (CAB) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
822 次

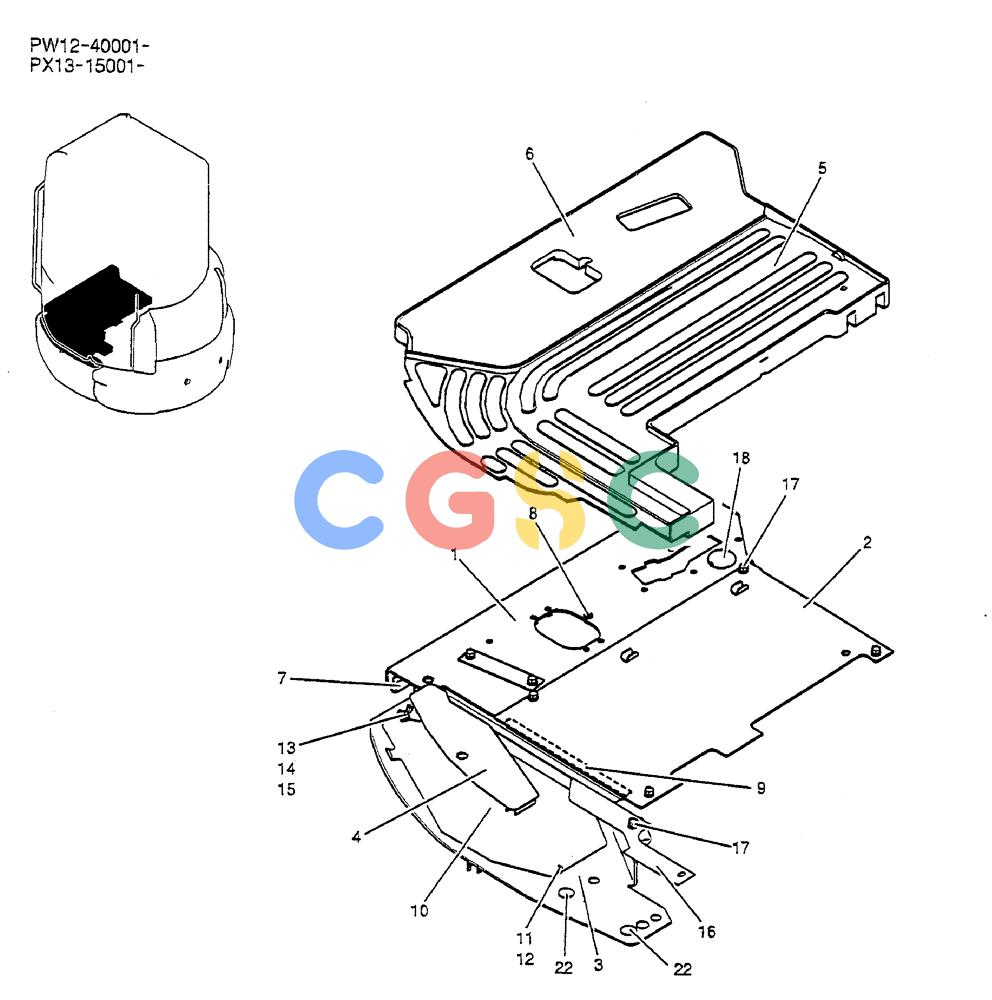

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW03M00103F1 | [1] | PLATE GROUP, FLOOR | |
| 1. | PW03M01535P2 | [1] | PLATE | KOB |
| 3. | PW03M01860P1 | [1] | BRACKET | KOB |
| 4. | PH03M01458P2 | [1] | COVER | KOBCOVER |
| 5. | PW26M00014P1 | [1] | FLOOR MAT | KOB |
| 6. | PV26M00005F1 | [1] | MAT | KOBMAT ASSY, FLOOR |
| 7. | PH21C01136DF | [1] | WEATHERSTRIP | KOB |
| 8. | YN03M01159P1 | [1] | GROMMET | KOB |
| 9. | PW03M01545P1 | [1] | RUBBER | KOB |
| 10. | PW03M01830P1 | [1] | COVER | KOBCOVER |
| 11. | PW11M01071P1 | [1] | PIN,8mm OD x 19mm L | KOB |
| 12. | 2419R9D2 | [1] | COTTER PIN | KOB |
| 13. | 2420R585D23 | [1] | BOLT,Wing, M8 x 20mm | KOB |
| 14. | ZW16X08000 | [1] | WASHER | KOB |
| 15. | ZW26X08000 | [1] | LOCK WASHER | KOB Superseded by part number: 83990583 |
| 16. | PW03M01831P1 | [1] | COVER | KOBPLATE |
| 17. | PM21C01202P1 | [5] | BOLT | KOB |
| 18. | PM03M01357P1 | [1] | PLUG | KOB |
| 22. | YT02C01567D2 | [2] | PLATE | KOBPLATE |
