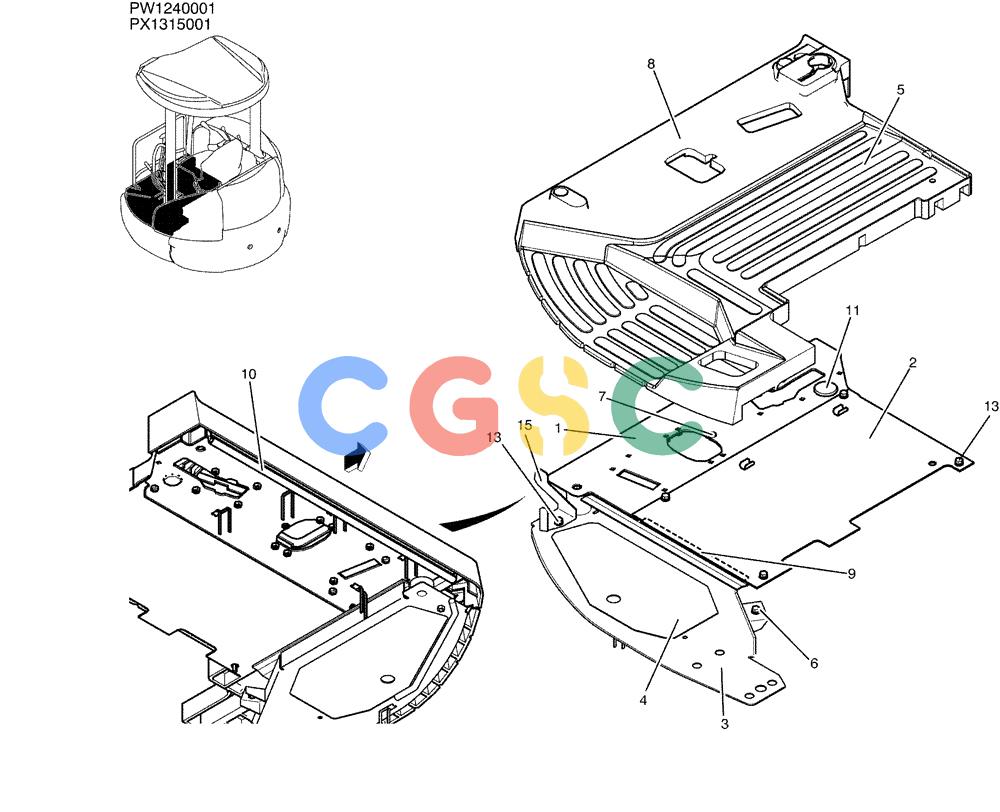

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-037) - PLATE GROUP, FLOOR (CANOPY) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
611 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW03M00104F1 | [1] | PLATE GROUP, FLOOR | |
| 1. | PW03M01535P2 | [1] | PLATE | KOB |
| 3. | PW03M01860P1 | [1] | BRACKET | KOB |
| 4. | PW03M01820P1 | [1] | COVER | KOBCOVER |
| 5. | PW26M00018P1 | [1] | FLOOR MAT | KOBMAT, FLOOR |
| 6. | ZM22C08020 | [1] | BOLT | KOB |
| 7. | YN03M01159P1 | [1] | GROMMET | KOB |
| 8. | PV26M00004F1 | [1] | MAT | KOBMAT ASSY, FLOOR Superseded by part number: PV26M00002P1, PV03M01139P1 |
| 9. | PW03M01545P1 | [1] | RUBBER | KOB |
| 10. | PH21C01136DF | [1] | WEATHERSTRIP | KOB |
| 11. | PM03M01357P1 | [1] | PLUG | KOB |
| 13. | PM21C01202P1 | [5] | BOLT | KOB |
| 15. | PW03M01832P1 | [1] | PLATE | |
