神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (08-006) - REWORK, HYDR LINES (FOR SWEDEN) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
853 次

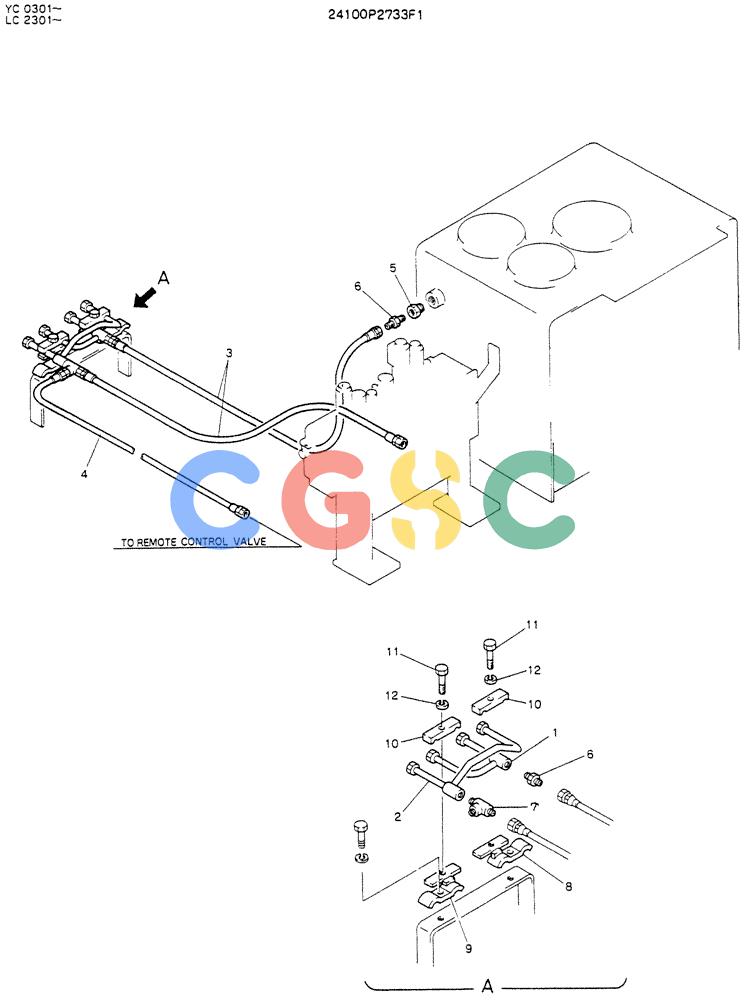

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P2733F1 | [1] | REWORK, HYDR LINES | |
| 1. | 2418P12321 | [1] | TUBE | TUBE |
| 2. | 2418P12322 | [1] | TUBE | TUBE |
| 3. | 2420R537D220 | [2] | HOSE,9.60mm ID x 2200mm L | KOB Superseded by part number: 77254115, HX21E06220DX |
| 4. | 2420R537D150 | [1] | FLEXIBLE HOSE,9.60mm ID x 1500mm L | KOB3/8" PF, 1500mm Long (59-1/16 in) Superseded by part number: HX21E06150DX |
| 5. | 2444T2663 | [1] | HYD CONNECTOR | KOB |
| 6. | ZH22X06000 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) (PF3/8) |
| 7. | 2444Z2359 | [1] | TEE | KOB3/8" PT (Incls. O-Ring ZD12P01400) |
| 8. | 2416P14412 | [1] | SUPPORT | KOB |
| 9. | 2416P14413 | [1] | SUPPORT | KOB |
| 10. | 2432T2340 | [2] | CLAMP | KOB |
| 11. | ZS18C10050 | [2] | SCREW,Hex, M10 x 50mm | KOBM10x1.50x50mm |
| 12. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 13. | ZH22F06000 | [1] | CONNECTION | KOB |
