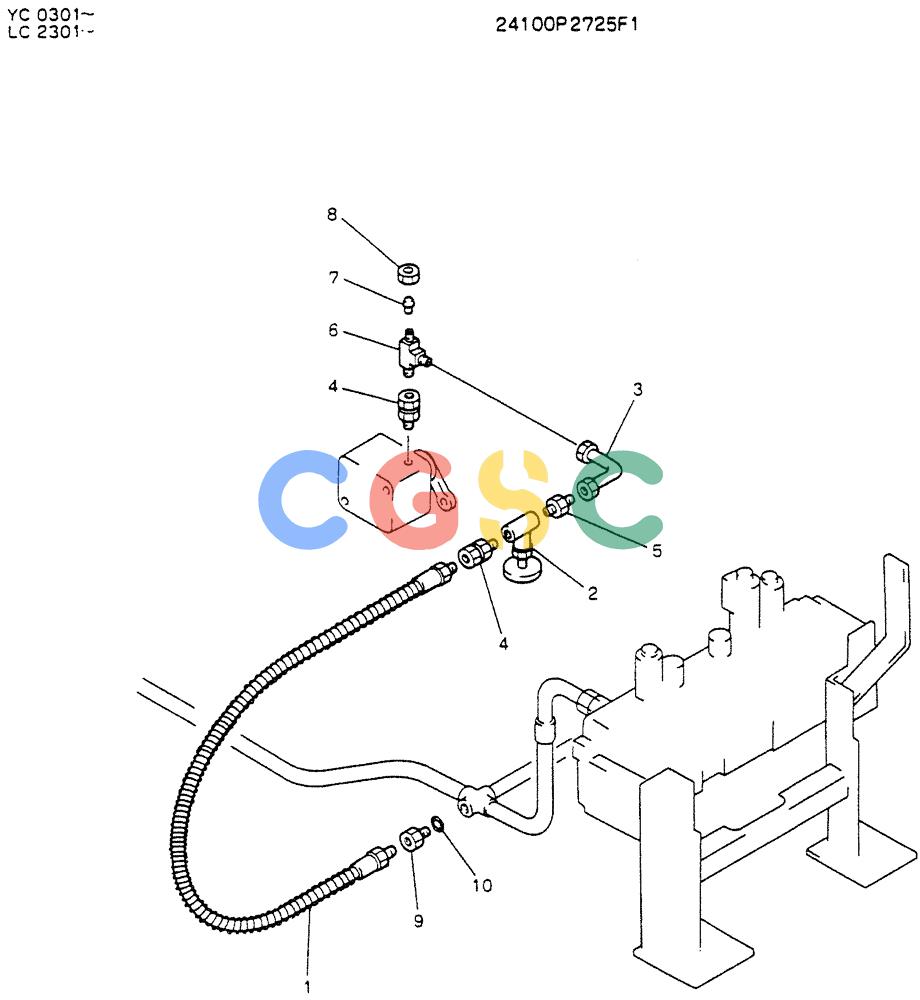

神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (08-007) - ALARM, OVERLOAD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
810 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P2725F1 | [1] | ALARM,OVER LOAD | |
| 1. | ZX58N06200 | [1] | HOSE | |
| 2. | 2436R620F1 | [1] | VALVE PRESSURE RELIE | KOBSTOP |
| 3. | 2418T10338 | [1] | TUBE | KOB |
| 4. | ZF23G12004 | [2] | CONNECTOR | CONNECTOR |
| 5. | ZF23F12004 | [1] | CONNECTOR | CONNECTOR |
| 6. | ZF53B12000 | [1] | TEE | KOB |
| 7. | ZF83P12000 | [1] | PLUG | KOB |
| 8. | ZF93N12000 | [1] | NUT | KOB |
| 9. | ZF23H12004 | [1] | HYD CONNECTOR | KOB |
| 10. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
