神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (09-003) - BUCKET ASSY, FINISHING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
615 次

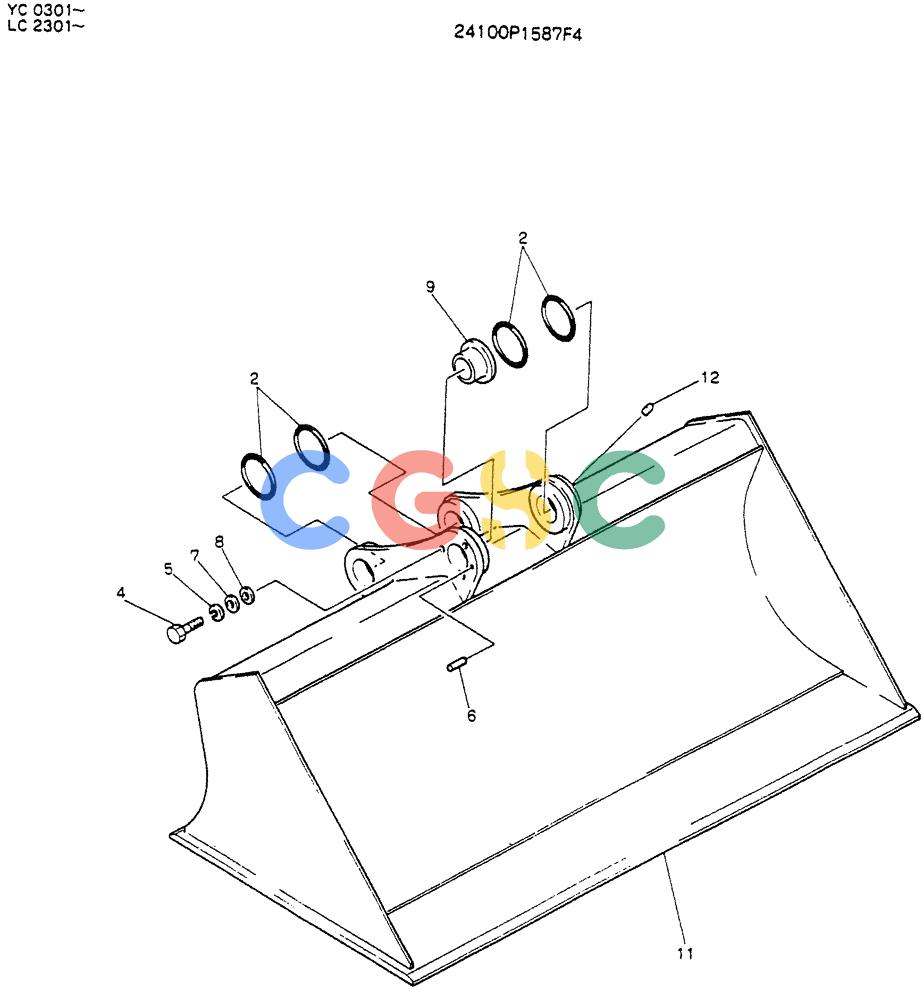

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1587F4 | [1] | BUCKET ASSY,FINISHING | |
| 2. | 2445Z1003 | [4] | O-RING | KOB |
| 4. | 2420Z1640D1 | [3] | SCREW | KOBM20 x 50mm Long |
| 5. | ZW22K20000 | [3] | LOCK WASHER | KOB |
| 6. | 2419T4628D1 | [1] | PIN | KOB |
| 7. | 2418T14548D2 | [3] | SHIM | KOBID 21 x OD 32 x Th 3.2mm |
| 8. | 2418T14548D1 | [30] | SHIM | KOBID 21 x OD 32 x Th 1.0mm |
| 9. | 2405T1226 | [1] | BUSHING | KOB |
| 11. | 2412J1272F1 | [1] | BUCKET ASSY, FINISHING | |
| 12. | ZP26D04010 | [2] | ROLL PIN | KOB |
