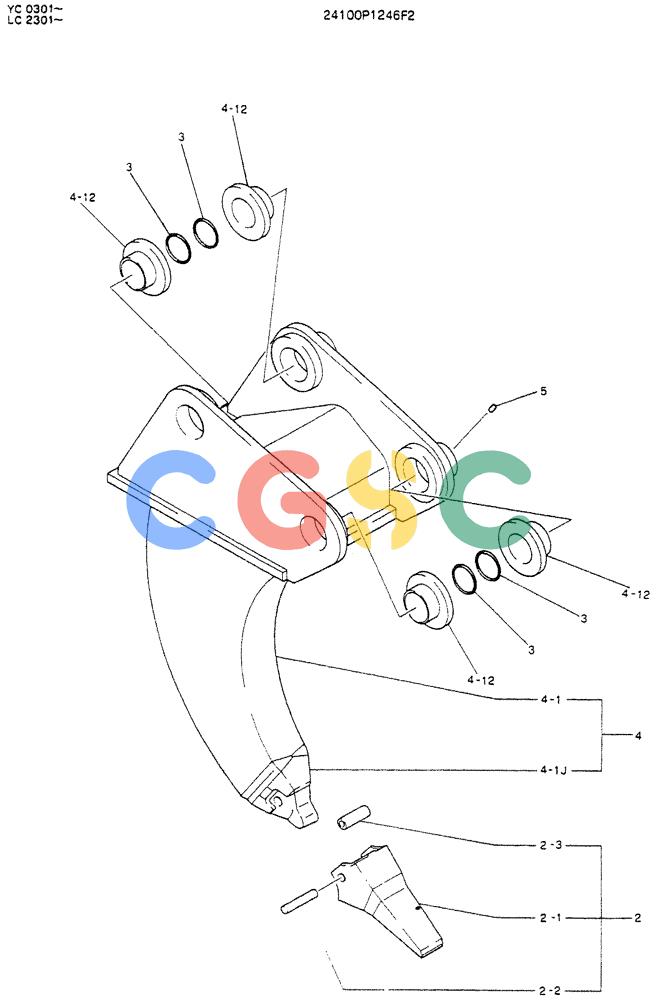

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | 24100P1246F2 | [1] | RIPPER ASSY | |
| 2. | 2412U25F1 | [1] | TOOTH | KOBTOOTH ASSY |
| 2-1. | 2412U25S1 | [1] | POINT | POINT |
| 2-2. | 2412U25S2 | [1] | PIN | |
| 2-3. | 2412U25S3 | [1] | RUBBER | |
| 3. | 2445Z888 | [4] | O-RING | KOB |
| 4. | 2412J1273F1 | [1] | RIPPER | |
| 4-1. | 2412J1273 | [1] | RIPPER | |
| 4-1J. | 2412U24 | [1] | NOSE | |
| 4-12. | 2405T911 | [4] | BUSHING | KOB |
| 5. | ZP26D04010 | [2] | ROLL PIN | KOB |
