神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (01-004) - BATTERY ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
434 次

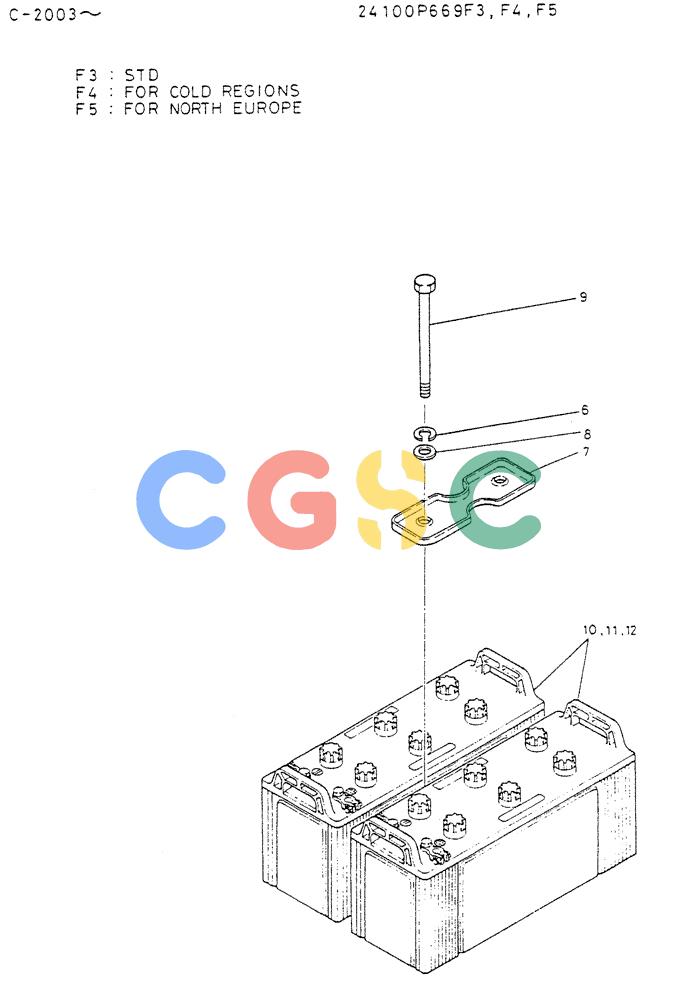

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P669F3 | [1] | BATTERY ASSY | |
| 6. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 7. | 2418P5535 | [1] | PLATE | KOB |
| 8. | 2418T5373C2 | [2] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 9. | R20T0084D16 | [2] | SCREW | KOBM10x1.50x220mm |
| 10. | 2484U112 | [2] | BATTERY, F160-12 | |
| . . | 24100P669F4 | [1] | BATTERS ASSY | |
| 11. | 2484U113 | [2] | BATTERY, F160-12 | |
| . . | 24100P669F5 | [1] | BATTERY ASSY | |
| 12. | 2484U165 | [2] | BATTERY (N/S) | BATTERY (N/S) |
