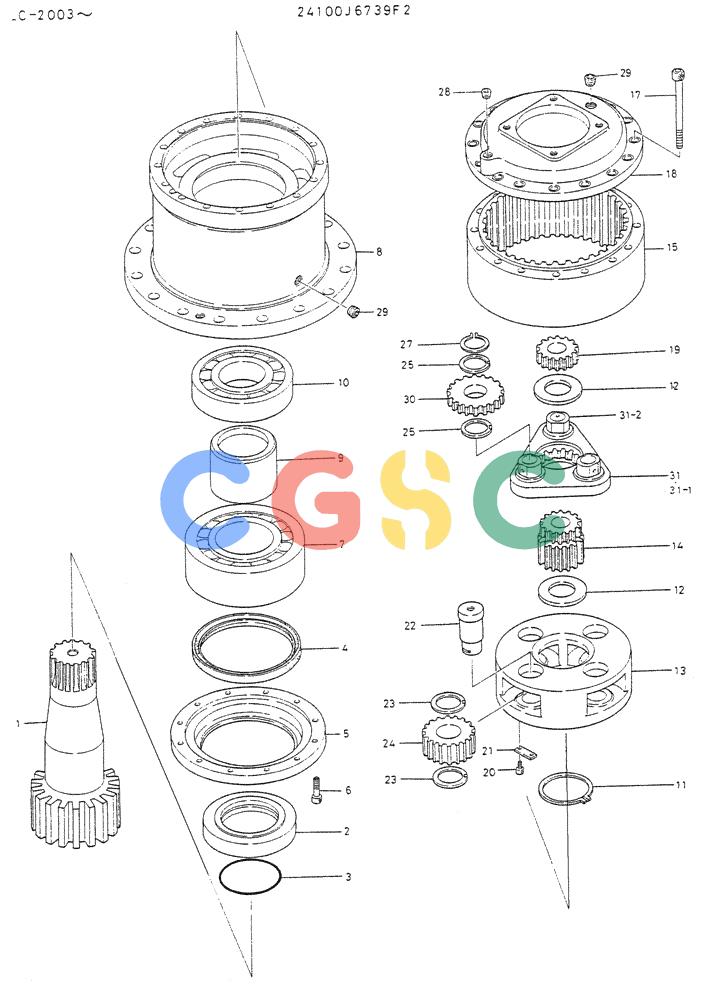

神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (01-005) - REDUCTION UNIT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
300 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6739F2 | [1] | REDUCTION UNIT | REDUCTION UNIT |
| 1. | 2401N561 | [1] | FINGER ASSY. | KOB |
| 2. | 2418T12861 | [1] | SLEEVE | SLEEVE |
| 3. | ZD11G12000 | [1] | O-RING,119.40mm ID x 125.60mm OD x 3.10mm | KOB |
| 4. | ZD21T20000 | [1] | OIL SEAL | KOB |
| 5. | 2418P9601 | [1] | RETAINER | KOB |
| 6. | ZS23C12045 | [12] | SCREW,Hex Socket Head, M12 x 45mm | KOBM12x1.75x45mm Superseded by part number: ZS28C12045 |
| 7. | R25P0047D10 | [1] | BEARING | KOB |
| 8. | 2414J1307 | [1] | HOUSING | |
| 9. | 2418T9815 | [1] | SPACER | SPACER |
| 10. | 2425T67D14 | [1] | ROLLER BEARING | KOB Superseded by part number: 2425R170D18 |
| 11. | ZR16X10000 | [1] | RING | KOBRetaining -- ID 94.50 x OD 119 x Th 3.0mm |
| 12. | 2418T9429 | [2] | SPACER | KOB |
| 13. | 2413J453 | [1] | SPIDER | KOBSPIDER |
| 14. | 2401P842 | [1] | SUN GEAR | KOB |
| 15. | 2401N562 | [1] | GEAR, INTERNAL | GEAR, INTERNAL |
| 17. | ZS23C14160 | [16] | SCREW,Hex Socket Head, M14 x 160mm | KOBScrew -- M14x2.0x160mm |
| 18. | 2414J1308 | [1] | COVER | |
| 19. | 2401P843 | [1] | SUN GEAR | KOB |
| 20. | ZS23C08016 | [8] | SCREW,Hex Socket Head, M8 x 16mm | KOBM08x1.25x16mm |
| 21. | 2418T7513 | [4] | LOCKING PLATE | KOB |
| 22. | 2410P735 | [4] | SHAFT | KOB |
| 23. | 2418T9390 | [8] | THRUST WASHER | KOB |
| 24. | 2401P844 | [4] | PINION | KOB |
| 25. | 2418T9782 | [6] | THRUST WASHER | KOB |
| 27. | 2418R2D30 | [3] | SNAP RING | KOB |
| 28. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| 29. | ZE82T12000 | [2] | PLUG | KOB3/4" PT |
| 30. | 2401P897 | [3] | PINION | KOB |
| 31. | 2413N562F1 | [1] | SPIDER | KOB |
| 31-1. | 2413N562 | [1] | SPIDER | |
| 31-2. | 2410P972 | [3] | SHAFT | SHAFT |
| . . | 24010P3D19 | [1] | SHAFT KIT CONSISTS OF REF 22 | |
