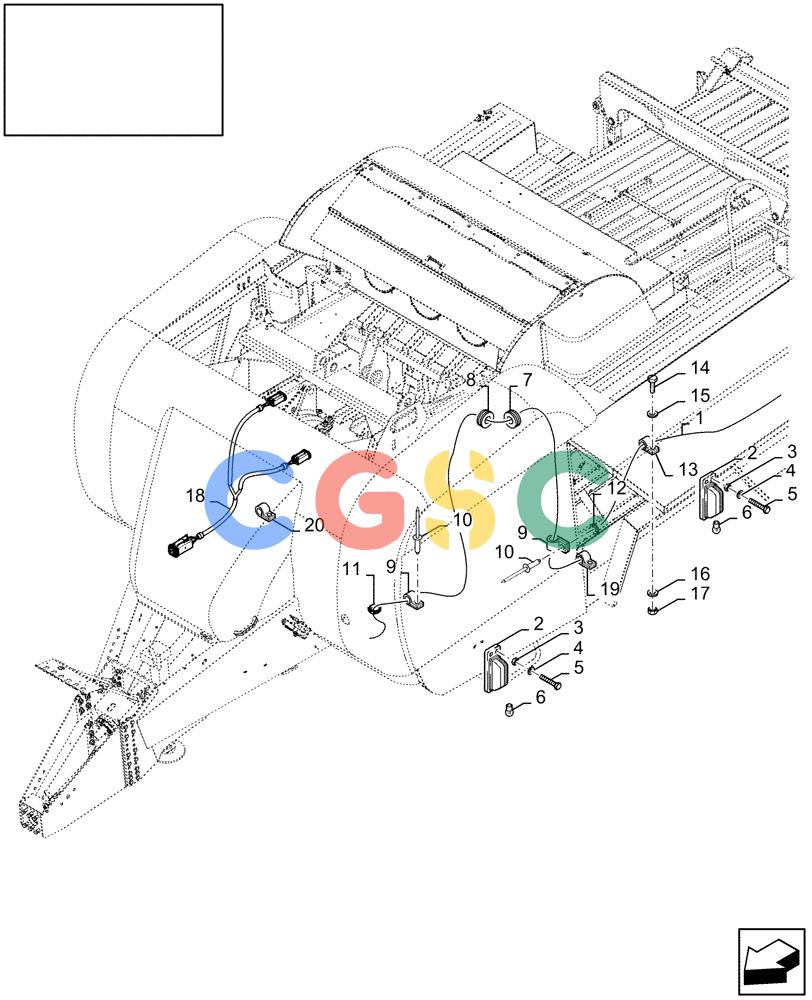

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (18.84067140[01]) - DIA : SIDE LIGHT KIT - DENMARK Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
445 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
84067140
|
[1] |
DIA KIT, HARVESTER
|
ATT
|
| 1. |
84459690
|
[2] |
WIRE HARNESS
|
ZED
|
| 2. |
84058158
|
[6] |
SIDE LAMP ASSY
|
ZED
|
| 3. |
100012
|
[12] |
NUT,M4 x 0.7, Cl 8
|
NH
Superseded by part number: 57121
|
| 4. |
322355
|
[12] |
BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk
|
NH
|
| 5. |
86511042
|
[12] |
SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8
|
ZED
Superseded by part number: 13272214
|
| 6. |
84058228
|
[6] |
BULB,12V, 5W
|
ZED
|
| 7. |
323788
|
[3] |
GROMMET
|
ZED
|
| 8. |
399986
|
[2] |
GROMMET
|
ZED
|
| 9. |
9507807
|
[8] |
CLAMP,8.3mm ID, 6.7mm Bolt Hole, P Type
|
ZED
|
| 10. |
9512290
|
[20] |
RIVET,Pop, 4.8mm OD x 17.8mm L
|
ZED
|
| 11. |
86566990
|
[13] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
CABLE STRAP
|
| 12. |
322356
|
[25] |
BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk
|
ZED
|
| 13. |
675162
|
[13] |
WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type
|
NH
|
| 14. |
43138
|
[9] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 15. |
378244
|
[9] |
WASHER,10.5mm ID x 24mm OD x 2mm Thk
|
NH
|
| 16. |
140045
|
[9] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 17. |
100016
|
[9] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 18. |
84459692
|
[1] |
WIRE HARNESS
|
ZED
|
| 19. |
84818442
|
[22] |
CLAMP,13.3mm ID, 6.7mm Bolt Hole, P Type
|
ZED
|
| 20. |
84818443
|
[1] |
CLAMP,16.3mm ID, 6.7mm Bolt Hole, P Type
|
ZED
|
