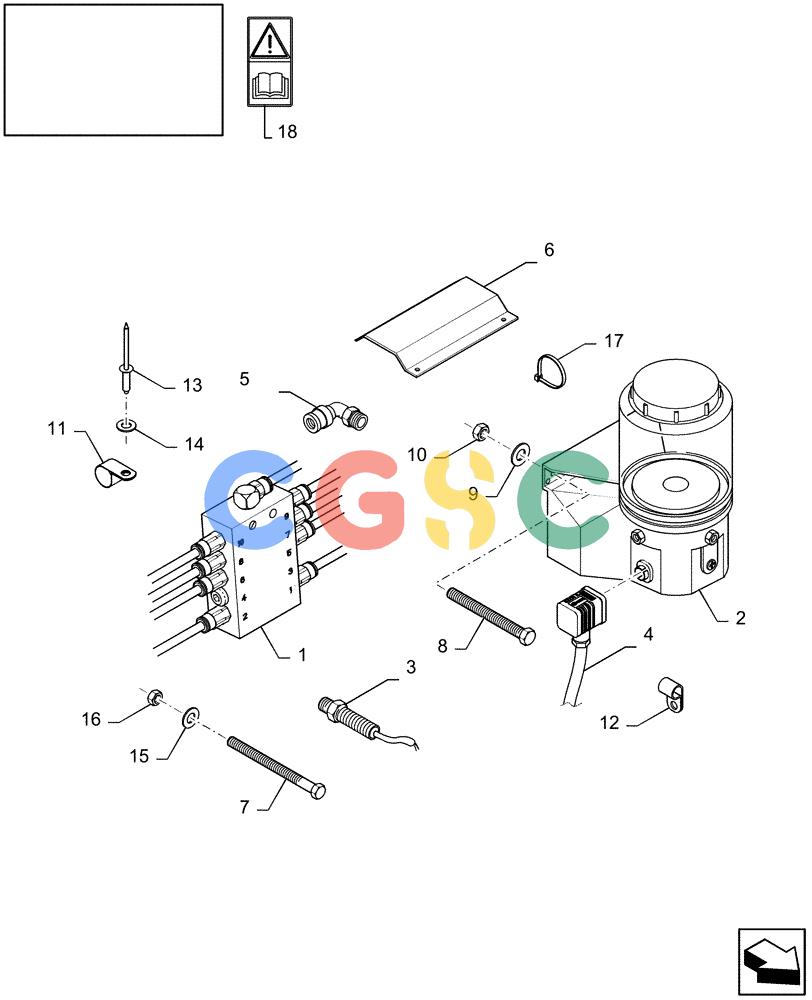

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (18.84095512[01]) - DIA : AUTOMATIC GREASING PUMP - LINCOLN Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
209 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
84095512
|
[1] |
AUTOMATIC GREASING P
|
ATT
|
| 1. |
84807234
|
[1] |
|
|
| 2. |
84807249
|
[1] |
LUBE PUMP
|
ZED
|
| 3. |
84078760
|
[1] |
SENSOR
|
ZED
|
| 4. |
84437931
|
[1] |
WIRE HARNESS
|
ZED
|
| 5. |
84807377
|
[3] |
COUPLING
|
ZED
|
| 6. |
84807347
|
[1] |
CHANNEL
|
ZED
|
| 7. |
412364
|
[2] |
CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8
|
ZED
|
| 8. |
86512444
|
[2] |
CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8
|
NH
|
| 9. |
356903
|
[2] |
WASHER
|
ZED
|
| 10. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 11. |
9827902
|
[1] |
CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type
|
WIN
|
| 12. |
9837692
|
[1] |
CLAMP,16.67mm ID, 13.46mm Bolt Hole, P Type
|
ZED
|
| 13. |
9512290
|
[2] |
RIVET,Pop, 4.8mm OD x 17.8mm L
|
ZED
|
| 14. |
279433
|
[2] |
WASHER
|
NH
|
| 15. |
322357
|
[2] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 16. |
9706755
|
[2] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 17. |
9993154
|
[16] |
ELASTIC STRAP
|
PLO
Superseded by part number: 86566990
|
| 18. |
84004731
|
[1] |
WARNING DECAL
|
ZED
|
| . . |
86503661
|
[3] |
GREASE
|
GI
|
| . . |
84429116
|
[1] |
ML
|
|
