神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (01-008) - PUMP ASSY, FUEL (FOR SWISS) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
301 次

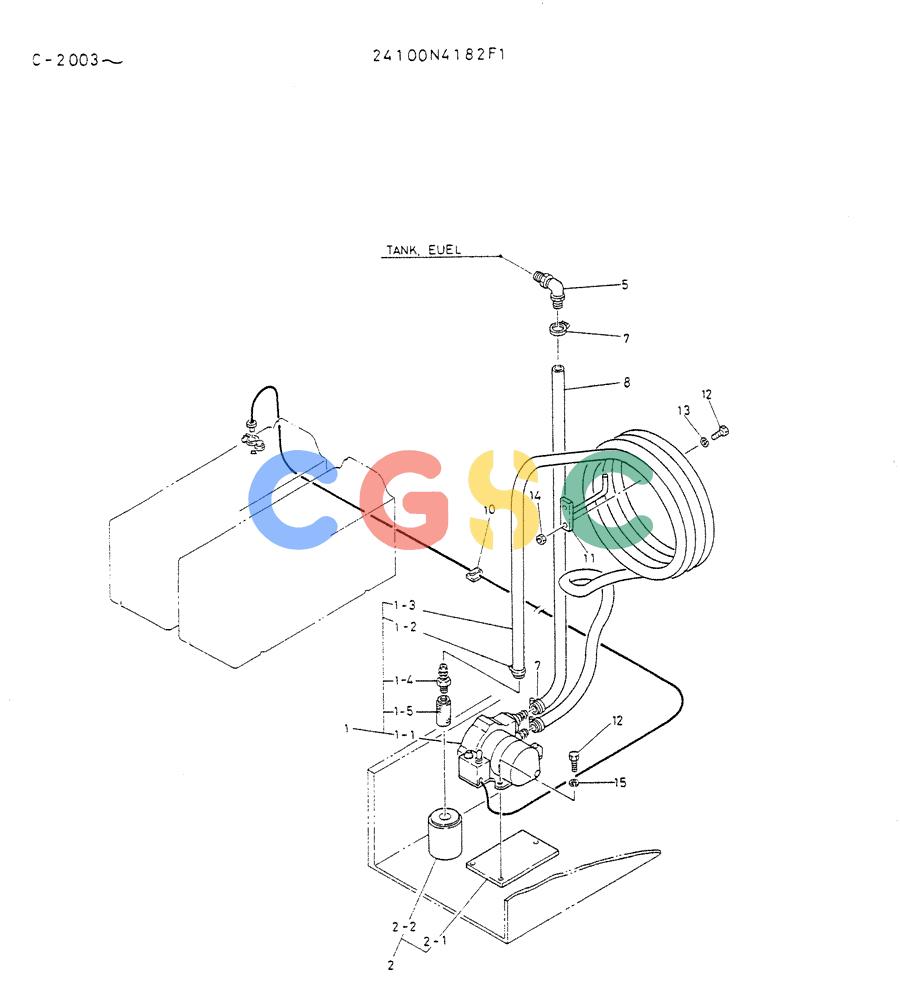

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4182F1 | [1] | PUMP ASSY, FUEL (FOR SWISS) | PUMP ASSY, FUEL (FOR SWISS) |
| 1. | 24100R156F1 | [1] | PUMP ASSY, HYD | PUMP ASSY, HYD |
| 1-1. | 2437U164 | [1] | PUMP, FUEL | PUMP, FUEL |
| 1-2. | ZC15X02600 | [2] | CLAMP | KOBCLIP |
| 1-3. | 2444Z2252D1 | [1] | HOSE | KOB |
| 1-4. | 2444Z1233D7 | [1] | ELEC CONNECTOR | KOB |
| 1-5. | 2446Z143 | [1] | STRAINER ASSY. | KOB |
| 2. | 2422P874 | [1] | REWORK,FRAME | |
| 2-1. | 2414T2682 | [1] | PLATE | |
| 2-2. | 2418T10320 | [1] | PIPE | PIPE |
| 5. | 2418T12414 | [1] | TUBE | |
| 7. | ZC15X02600 | [2] | CLAMP | KOBCLIP |
| 8. | 2444Z2201D3 | [1] | HOSE | |
| 10. | 2432Z290 | [3] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 11. | 2416T14910 | [1] | HANGER | |
| 12. | ZS18C08025 | [5] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 13. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 14. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 15. | ZW16X08000 | [3] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
