神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (02-001) - INSTAL CAB Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
598 次

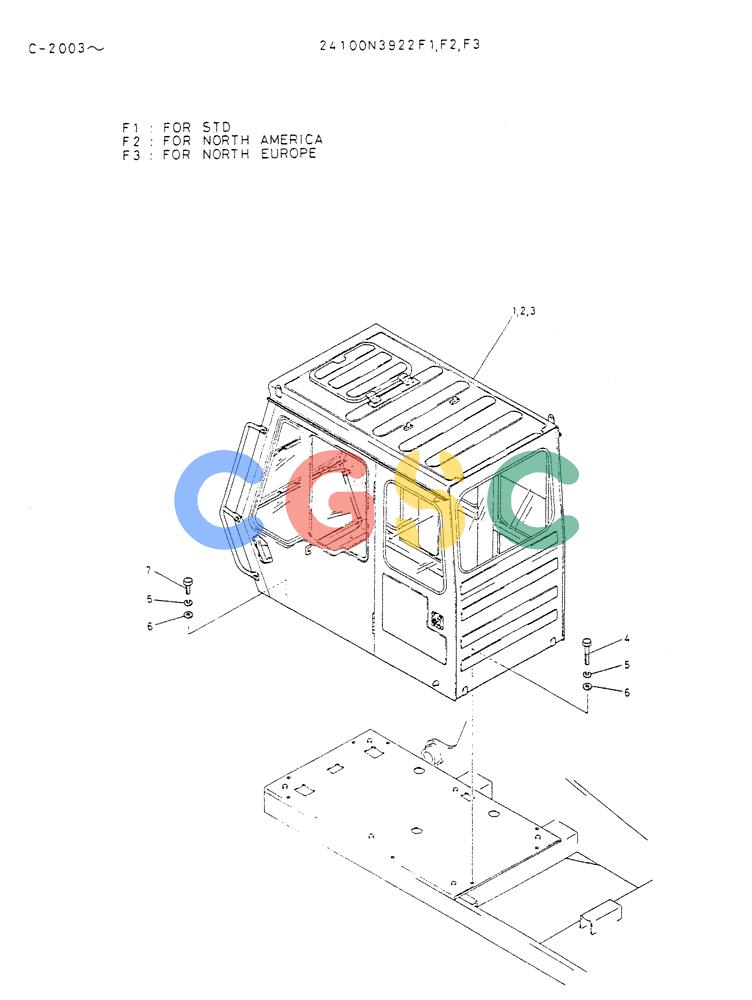

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3922F1 | [1] | INSTAL, CAB | |
| 1. | 24100J6107F1 | [1] | CAB ASSY SEE FIG 02-002-01 &02-002-02 | |
| 4. | ZS18C12070 | [6] | SCREW,Hex, M12 x 70mm | KOBM12x1.75x70mm |
| 5. | ZW26X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 6. | ZW16H12000 | [8] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 7. | ZS18C12035 | [2] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| . . | 24100N3922F2 | [1] | INSTAL, CAB | |
| 2. | 24100J6107F2 | [1] | CAB ASSY SEE FIG 02-004-01 &02-004-02 | CAB ASSY SEE FIG 02-004-01 &02-004-02 |
| . . | 24100N3922F3 | [1] | INSTAL, CAB | |
| 3. | 24100J6107F3 | [1] | CAB ASSY SEE FIG 02-003-01 &02-003-02 | |
