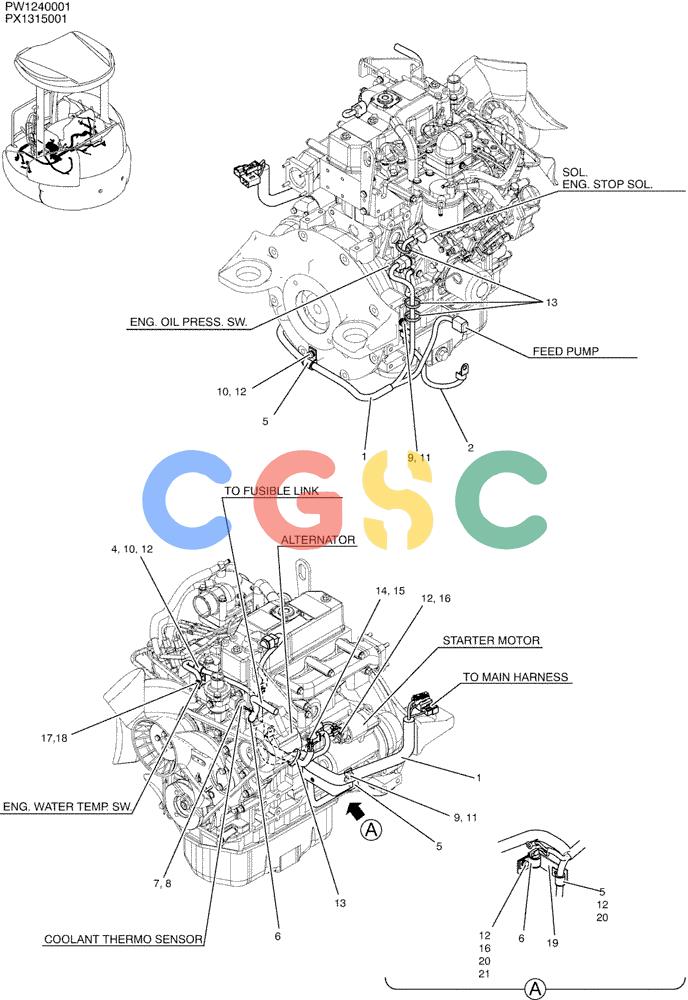

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-065) - HARNESS ASSY, ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
841 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW16E00005F1 | [1] | HARNESS ASSY, ENGINE | |
| 1. | PW16E01018P4 | [1] | HARNESS | KOBHARNESS |
| 2. | PH13E01047D1 | [1] | CABLE | KOB |
| 4. | EW02E01015D4 | [1] | CLIP | KOB |
| 5. | EW02E01015D6 | [3] | CLIP | KOB |
| 6. | EW02E01015D8 | [2] | CLIP | KOB |
| 7. | PA24S00003P1 | [1] | SENSOR,50-120 º C | KOB |
| 8. | PA13E01027P1 | [1] | PACKING | KOB Superseded by part number: VV12915049360 |
| 9. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOB |
| 10. | ZS18C08012 | [2] | SCREW,Hex, M8 x 12mm | KOBCAP |
| 11. | ZW16X10000 | [2] | WASHER | KOB |
| 12. | ZW16X08000 | [5] | WASHER | KOB |
| 13. | PY01P01043D4 | [4] | CABLE TIE,4.80mm W x 251mm L | KOB |
| 14. | ZW16X06000 | [1] | WASHER | KOB Superseded by part number: 86588450 |
| 15. | ZN18C06005 | [1] | NUT | KOB |
| 16. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 17. | PM50S00006P1 | [1] | THERMOSTATIC SWITCH,On - 110° C, 230° F | KOBTHERMO Superseded by part number: VV12125044901 |
| 18. | PM16E01011P1 | [1] | O-RING | KOB Superseded by part number: VV12446544950 |
| 19. | PM16E01023P1 | [1] | PLATE | KOB |
| 20. | ZS18C08016 | [2] | SCREW,Hex, M8 x 16mm | KOBCAP |
| 21. | ZW26X08000 | [1] | LOCK WASHER | KOB Superseded by part number: 83990583 |
