纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-066) - RELAY ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
185 次

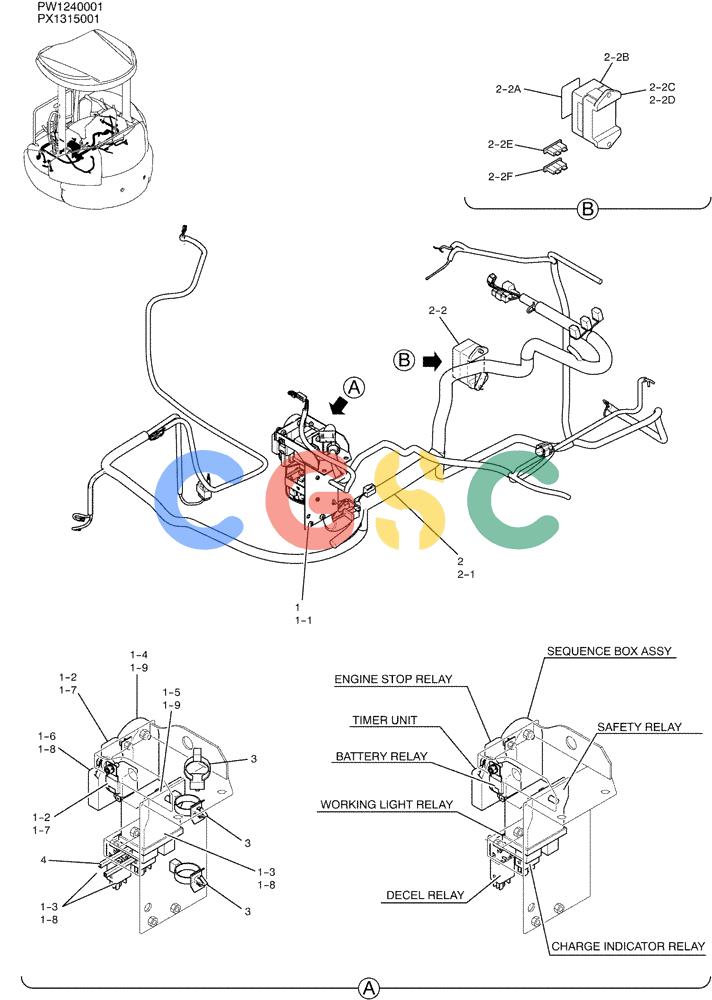

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW24E00039F1 | [1] | RELAY | KOBASSY |
| 1. | PM24E00045F1 | [1] | RELAY ASSY | |
| 1-1. | PM24E01096P1 | [1] | PLATE | |
| 1-2. | PH24S00001P1 | [2] | RELAY | KOB |
| 1-3. | PA24E01001P1 | [3] | RELAY | KOB |
| 1-4. | PA24S00002P3 | [1] | RELAY,DC12V | KOB |
| 1-5. | PX24S00001P1 | [1] | RELAY | KOB Superseded by part number: VV11980277200 |
| 1-6. | PH25S00002P1 | [1] | TIMER | KOB Superseded by part number: VV12921177920 |
| 1-7. | ZM61C05012 | [2] | BOLT | KOB |
| 1-8. | ZM61C06016 | [3] | BOLT | KOB |
| 1-9. | ZM61C06020 | [2] | BOLT | KOB |
| 2. | PW14E01049P1 | [1] | WIRE HARNESS | KOBHARNESS |
| 2-1. | NSS | [1] | NOT SERVICED SEPARATELY | CONHARNESS |
| 2-2. | PW73E00003F1 | [1] | FUSE BOX | KOBFUSE ASSY |
| 2-2A. | PW73E01004P1 | [1] | LABEL | KOBLABEL |
| 2-2B. | 2479U1458S2 | [1] | COVER | KOB |
| 2-2C. | 2479U1458S1 | [1] | BASE | KOB |
| 2-2D. | 2479U1458S3 | [1] | BLOCK | KOB |
| 2-2E. | 2479R655S8 | [2] | FUSE,10 Amp | KOB Superseded by part number: 87522597 |
| 2-2F. | YN73E00001S022 | [7] | FUSE,30 Amp | KOB |
| 3. | YN03E01001D5 | [3] | CLIP | KOB |
| 4. | YN22M01006D5 | [1] | BUSHING,50mm L | KOB |
