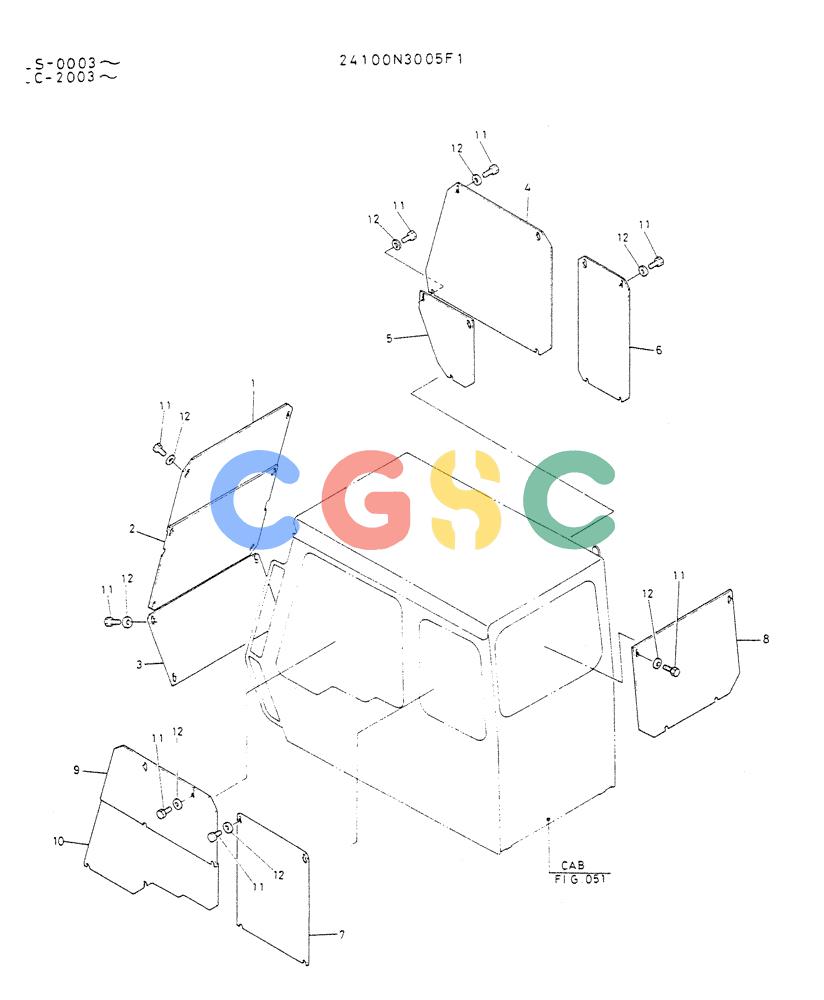

神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (02-005) - GUARD ASSY VANDALISM Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
963 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3005F1 | [1] | GUARD ASSY, CAB VANDALISM(FOR NORTH AMERICA) | GUARD ASSY, CAB VANDALISM(FOR NORTH AMERICA) |
| 1. | 2414R240 | [1] | GUARD | KOB |
| 2. | 2414R242 | [1] | GUARD | KOB |
| 3. | 2414R239 | [1] | GUARD | GUARD |
| 4. | 2414R237 | [1] | GUARD | GUARD |
| 5. | 2414R238 | [1] | GUARD | GUARD |
| 6. | 2414R241 | [1] | GUARD | GUARD |
| 7. | 2414R245 | [1] | GUARD | GUARD |
| 8. | 2414R236 | [1] | GUARD | GUARD |
| 9. | 2414R243 | [1] | GUARD | GUARD |
| 10. | 2414R244 | [1] | GUARD | GUARD |
| 11. | ZS18C08012 | [8] | SCREW,Hex, M8 x 12mm | KOBM08x1.25x12mm |
| 12. | ZW16X08000 | [8] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
